Panamax Max Flat Panel 300 - MFP300
Product Overview

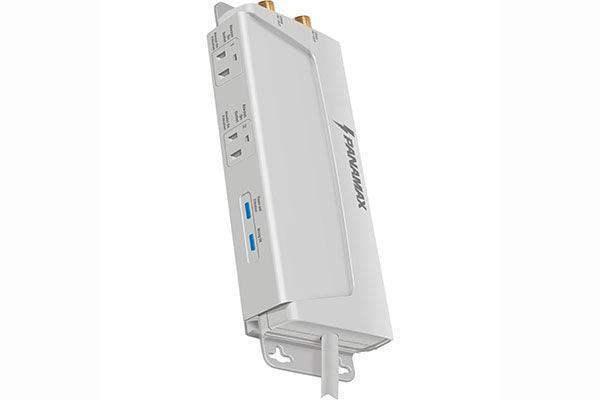

The Panamax MFP300 flat panel power management unit is a compact, low-profile power conditioner and surge protector designed specifically for flat panel display and television installations. It provides Protect or Disconnect surge protection, premium EMI/RFI filtration, and coaxial cable/satellite signal line protection across 2 always-on outlets in a form factor sized to mount behind or alongside wall-mounted displays. The MFP300 is an effective solution for AV integrators who need display-specific power conditioning in locations where a larger rack-mount conditioner is not appropriate.
Product Description
The Panamax MFP300 (Max Flat Panel 300) is purpose-built for flat panel display power management. Its compact dimensions (3.75" W x 8.5" L x 1.6" H) and light 2-pound weight allow it to be positioned behind or alongside wall-mounted televisions and displays where rack-format power conditioners are impractical. Both outlets are always on, providing continuous filtered and surge-protected power to the display and one additional device such as a streaming player or media source.
Premium EMI/RFI filtration at 43 dB (100kHz to 1MHz) removes electrical noise from the AC power supply, reducing the risk of visual artifacts and audio interference that contaminated power can introduce into display systems. Protect or Disconnect surge protection handles catastrophic events — including lightning-induced surges traveling through the power line — by instantly disconnecting AC power to connected equipment, then reconnecting when the event clears. Signal line protection is included for 1 coaxial cable/satellite connection, with bidirectional protection supporting signals from 0 MHz to 2.2 GHz at less than 0.5 dB insertion loss. Maximum current rating is 12A. A 6-foot captive power cord is included. The MFP300 carries a Lifetime Limited product warranty and a $100,000 Connected Equipment Protection Policy.
Key Features
- 2 always-on, filtered, and surge-protected AC outlets
- 12A maximum current rating
- Compact low-profile form factor (3.75" W x 8.5" L x 1.6" H) for behind-display mounting
- Protect or Disconnect surge protection: L-N, L-G, N-G protection modes; 1,675 Joules
- Premium EMI/RFI filtration: 43 dB @ 100kHz–1MHz
- Coaxial cable/satellite signal protection: 0 MHz–2.2 GHz, <0.5 dB insertion loss (bidirectional)
- HD-ready coax protection (female F-connector, gold-plated)
- 6 ft. captive power cord; Lifetime Limited product warranty
- $100,000 Connected Equipment Protection Policy
Technical Specifications
| Specification | Value |
|---|---|
| Line Voltage | 120 VAC |
| Total Outlets | 2 (both always-on) |
| Maximum Current Rating | 12A |
| Voltage Protection Rating (UL 1449 3rd Ed., 3,000A) | 330V |
| Energy Dissipation | 1,675 Joules |
| Response Time | <1ns |
| Peak Impulse Current | 48,000A |
| Initial Clamping Level | 200V Peak |
| Filtration Technology | Premium RFI/EMI |
| Filtration Rating | 43 dB @ 100kHz–1MHz |
| Coax Signal Protection | 0 MHz–2.2 GHz; female F-connector, gold-plated; bidirectional; <0.5 dB insertion loss |
| Coax Clamping Level | 75V |
| AVM | No |
| Voltage Regulation | No |
| AC Power Cord | 6 ft. captive |
| Dimensions | 3.75" W x 8.5" L x 1.6" H |
| Weight | 2 lbs |
| Warranty | Lifetime Limited; $100,000 Connected Equipment Protection Policy |
