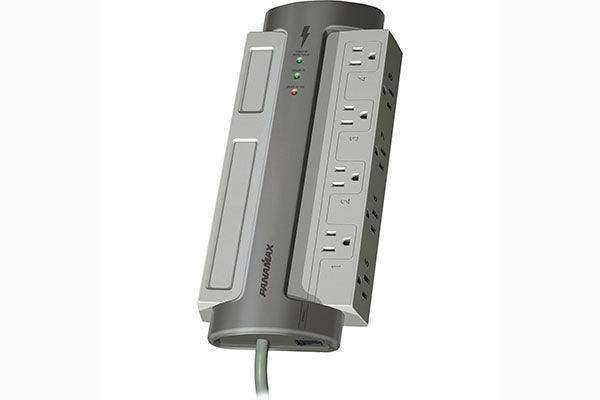

Panamax MAX 8 AC Only - M8-EX

Product Overview

The Panamax M8-EX Max 8 AC Only is an 8-outlet power management unit providing surge protection, EMI/RFI noise filtration, and automatic over/under-voltage shutoff for AV equipment racks and home theater systems. It protects connected equipment solely on the AC power lines — no coaxial or signal line protection is included — making it a focused, cost-effective solution for systems where signal line surge protection is handled separately or not required. The M8-EX delivers 1,650 joules of surge energy dissipation and 52,000A peak impulse current handling, positioning it in the mid-tier of Panamax's consumer and light-commercial power management lineup.

Product Description

The M8-EX is built around Panamax's patented Protect-or-Disconnect circuit, which monitors line voltage continuously and disconnects all outlets if voltage rises above 144 VAC or drops below 90 VAC — conditions that can damage power supplies and audio/video processors over time. All 8 AC outlets are transformer-spaced to accommodate wall-wart power adapters, and all are filtered and surge-protected. The 1,650-joule single-pulse energy dissipation rating reflects substantial capacity to absorb transient events from lightning-induced surges or utility switching. Peak impulse current handling of 52,000A aligns with UL 1449 third-edition test standards. The patented noise filtration circuit provides attenuation of high-frequency interference on the AC line, which can otherwise appear as video noise or audio hum in sensitive AV equipment. A front-panel power switch controls all outlets simultaneously with a single press. The M8-EX accepts optional add-on signal line modules for expanding protection to coaxial or telephone lines if needed in the future. Response time of 1 nanosecond ensures the protection circuit engages before transients can reach connected equipment.

Key Features

• 8 Transformer-Spaced AC Outlets — All outlets filtered and surge-protected; spacing accommodates wall-wart adapters without blocking adjacent outlets.
• 1,650-Joule Surge Protection — Single-pulse energy dissipation with 52,000A peak impulse current and 1ns response time.
• Protect-or-Disconnect Circuit — Automatic voltage shutoff at over 144 VAC or under 90 VAC protects equipment from sustained voltage anomalies.
• Patented EMI/RFI Noise Filtration — Reduces AC line interference that can degrade audio and video performance in connected equipment.
• Thermal Fusing — Additional protection layer against overload conditions.
• Add-On Signal Module Ready — Accepts optional Panamax signal line modules for coaxial or telephone line protection.
• Front-Panel Master Power Switch — Controls all outlets simultaneously for convenient system power management.
