Panamax Max 4 Tel and Data - M4LT-EX

Product Overview

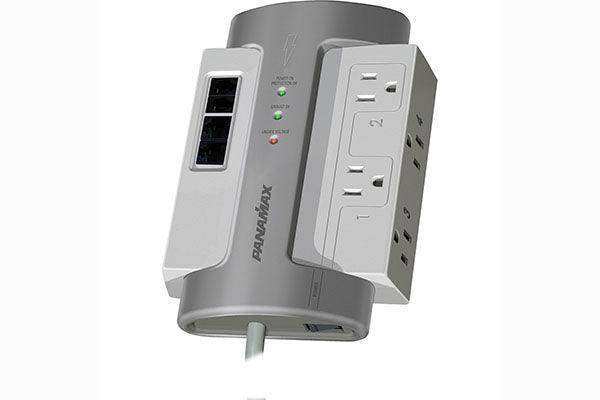

The Panamax M4LT-EX Max 4 Tel and Data is a 4-outlet power management unit that protects both AC power lines and signal connections — including RJ-11 telephone and RJ-45 CAT5e LAN ports — from damaging surges and transients. It is suited for office AV workstations, conference room equipment, and any installation where network-connected AV gear requires coordinated power and data line protection from a single device. With 1,650 joules of surge energy dissipation on the AC side, it delivers the same protection level as larger Panamax Max units in a compact 4-outlet form factor.

Product Description

The M4LT-EX protects four transformer-spaced AC outlets with Panamax's full suite of power management features: 52,000A peak impulse current handling, 1ns response time, automatic Protect-or-Disconnect voltage monitoring, and EMI/RFI noise filtration. The Protect-or-Disconnect circuit watches for over-voltage (shutoff at 144 VAC) and under-voltage (shutoff at 90 VAC) conditions, disconnecting all outlets when line voltage falls outside safe operating parameters. For signal line protection, the M4LT-EX provides in/out RJ-11 telephone protection on a single-pair (3,4) circuit with a 260V clamping level, and RJ-45 CAT5e LAN protection with all 8 pins protected at a 62V clamping level — guarding network switches, VoIP phones, and other IP-connected AV devices from surges entering through data lines. The 8-foot captive power cord with flat-profile plug allows the unit to be positioned flush against walls or furniture without protruding from a standard outlet. All four outlets are filtered and surge-protected with the same energy dissipation capacity as the larger M8-EX, making the M4LT-EX an appropriate choice where outlet count is limited but protection requirements remain high.

Key Features

• 4 Transformer-Spaced Outlets — All four outlets are filtered and surge-protected with full Panamax Max-series power management.
• 1,650-Joule AC Surge Protection — 52,000A peak impulse current and 1ns response time; UL 1449 3rd edition rated at 500V VPR.
• RJ-45 LAN Protection (CAT5e) — All 8 pins protected; 62V clamping level guards IP-connected AV and networking equipment.
• RJ-11 Telephone Protection — Single-pair (pins 3,4) protection with 260V clamping level for VoIP and analog phone lines.
• Protect-or-Disconnect Voltage Monitoring — Automatic shutoff at over 144 VAC or under 90 VAC prevents sustained voltage damage.
• EMI/RFI Noise Filtration — Patented Panamax filtration reduces AC line noise for cleaner audio and video reproduction.
• 8-Foot Flat-Profile Power Cord — Low-profile plug allows flush wall installation without protruding from outlet.
