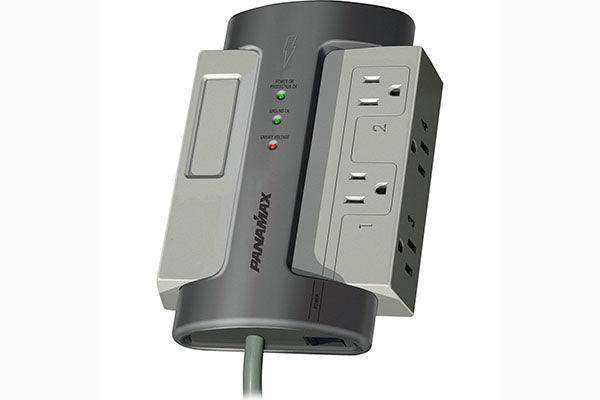

Panamax Max 4, AC Only - M4-EX

Product Overview

The Panamax M4-EX Max 4 AC Only is a compact 4-outlet power management unit providing full Panamax surge protection, Protect-or-Disconnect voltage monitoring, and EMI/RFI noise filtration on a space-efficient strip. It is the 4-outlet, AC-only variant in the Max series — sharing the same 1,650-joule protection rating and automatic over/under-voltage shutoff circuit as the larger M8-EX, in a smaller footprint suited for desktops, AV credenzas, and equipment with limited peripheral counts. No signal line protection is included, making it appropriate where only AC power protection is needed.

Product Description

The M4-EX delivers Panamax's full Max-series power management feature set in a 4-outlet form factor. All four transformer-spaced outlets are filtered and surge-protected with 1,650 joules of single-pulse energy dissipation — the same rating as the M8-EX — and 52,000A peak impulse current handling at a 1-nanosecond response time. The Protect-or-Disconnect circuit monitors line voltage continuously, shutting off all outlets when voltage exceeds 144 VAC or drops below 90 VAC to prevent equipment damage from sustained voltage anomalies. Patented EMI/RFI noise filtration reduces high-frequency interference on the AC line, which can appear as picture noise or audio hum in connected AV equipment. Thermal fusing provides an additional layer of overload protection. The 8-foot captive power cord includes a low-profile flat plug that allows the unit to sit flush against walls or furniture without the cord adding visible bulk at the outlet. A front-panel power switch controls all four outlets simultaneously. For installations requiring a compact, well-specified AC surge protector without the overhead of signal line ports, the M4-EX is a practical choice from Panamax's most capable consumer/light-commercial protection tier.

Key Features

• 4 Transformer-Spaced Outlets — All filtered and surge-protected; spacing accommodates oversized wall-wart power adapters.
• 1,650-Joule Surge Protection — Full Max-series energy dissipation rating with 52,000A peak impulse current and 1ns response time.
• Protect-or-Disconnect Voltage Monitoring — Automatic shutoff above 144 VAC or below 90 VAC prevents sustained voltage damage to connected equipment.
• Patented EMI/RFI Noise Filtration — Reduces AC line noise for cleaner power delivery to AV processors, displays, and amplifiers.
• Thermal Fusing — Additional overload protection beyond the main surge suppression circuit.
• 8-Foot Flat-Profile Power Cord — Low-profile plug for flush-wall outlet installation.
• Front-Panel Master Power Switch — Controls all outlets simultaneously for convenient system on/off.

Technical Specifications
