Panamax M8-AV Power Conditioner - M8-AV
Product Overview
The Panamax M8-AV is an 8-outlet standalone power conditioner that protects home theater and AV equipment from AC surges, coaxial signal transients, and telephone line surges. It includes Panamax's AVM (Automatic Voltage Monitoring) circuitry and RFI/EMI noise filtration, making it a meaningful upgrade from a basic surge strip for AV systems.
Product Description

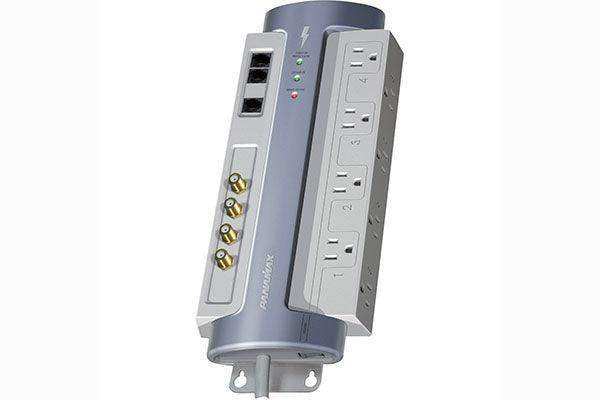

The M8-AV provides eight widely-spaced AC outlets on a 6-foot captive cord, along with coaxial F-connector passthrough for cable, satellite, or antenna signal lines, and an RJ-11 telephone jack for phone line surge suppression. Panamax's AVM circuitry monitors incoming line voltage and disconnects equipment if voltage strays into unsafe over- or under-voltage territory, reconnecting automatically when the line stabilizes — protecting against brownout conditions that a standard surge strip cannot address. RFI/EMI filtration attenuates power line noise to help AV equipment deliver cleaner output. The Protect or Disconnect circuit completely severs AC power during a catastrophic surge such as a lightning strike, rated at 1,650 joules and a peak impulse current of 52,000 amps. The M8-AV is a cost-effective entry into Panamax power conditioning for AV installations. Available at Creation Networks with a lifetime product warranty.
Key Features
- AVM (Automatic Voltage Monitoring) — Monitors line voltage continuously; disconnects during over-voltage or brownout and auto-reconnects when voltage normalizes.
- 1,650-Joule Surge Protection — Protect or Disconnect circuitry completely severs AC power during catastrophic surge events.
- RFI/EMI Noise Filtration — Attenuates power line noise to improve audio and video performance of connected equipment.
- Coaxial Signal Protection — Female F-connector in/out shields cable, satellite, and antenna lines from transient surges.
- Telephone Line Protection — RJ-11 in/out surge suppression for phone lines connected to AV or modem equipment.
- 8 Widely-Spaced Outlets — Accommodates bulky wall-wart adapters without blocking adjacent outlets.
Technical Specifications
| Specification | Value |
|---|---|
| AC Outlets | 8 |
| Single Pulse Energy Dissipation | 1,650 Joules |
| Voltage Protection Rating (UL 1449, 3,000A) | 500V |
| Peak Impulse Current | 52,000 Amps |
| Response Time | <1 ns |
| Maximum Current Rating | 15 Amps |
| Line Voltage | 120V AC |
| Coax Frequency Range | 0 MHz–2.2 GHz |
| Coax Clamping Level | 75V |
| Telco Connector | RJ-11 |
| Telco Clamping Level | 260V |
| AC Power Cord | 6 ft. captive cord |
| Dimensions | 12" L x 5" W x 1.75" H |
| Weight | 3.5 lbs |
