Panamax 2 Outlet Direct Plug-In Surge Protector with Tel/Lan - MD2-TL

Product Overview

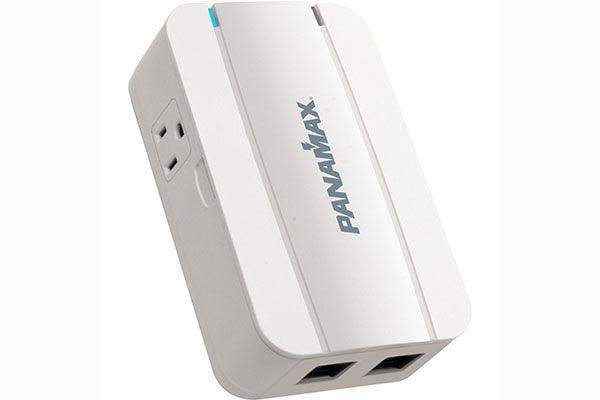

The Panamax MD2-TL is a 2-outlet direct plug-in surge protector with combined telephone and LAN (10/100 BASE-T Ethernet) signal line protection. Its compact form factor plugs directly into a wall outlet, making it practical for desktop or office AV equipment that needs AC surge suppression alongside network and phone line protection in a single unit.

Product Description

The MD2-TL provides two filtered and surge-protected AC outlets at 1,350 joules with a 60,000-amp peak impulse current rating. Panamax's Protect or Disconnect circuitry completely disconnects AC power during a catastrophic surge event. A shared RJ-45 jack handles both telephone and LAN signal line protection — the telco side suppresses a 2-wire phone pair at 260V clamping level, while the LAN side protects pins 1, 2, 3, and 6 at a 7V clamping level for 10/100 BASE-T Ethernet compatibility. RFI/EMI filtration circuitry on the AC outlets provides clean power. Two diagnostic LEDs indicate protection and ground status. The thin 1.5-inch depth profile keeps the unit flush at the wall. A 4-foot telephone cord and 4-foot LAN cable are included. Available at Creation Networks.

Key Features

• Combined Tel/LAN Signal Protection — Shared RJ-45 jack protects both telephone (260V) and 10/100 BASE-T Ethernet (7V) signal lines.
• 1,350-Joule AC Surge Protection — 60,000A peak impulse current; Protect or Disconnect full-disconnection circuitry.
• 2 Filtered AC Outlets — Both outlets carry RFI/EMI filtration and full surge protection.
• Compact Direct Plug-In Design — 1.5" deep profile mounts directly to the wall outlet without a power strip.
• Diagnostic LEDs — Protection OK and Ground OK indicators confirm circuit and protection status.
• Includes Cables — 4 ft. telephone cord and 4 ft. LAN cable included in the box.
