Panamax 2 Outlet Direct Plug-In Surge Protector with Coax - MD2-C

Product Overview

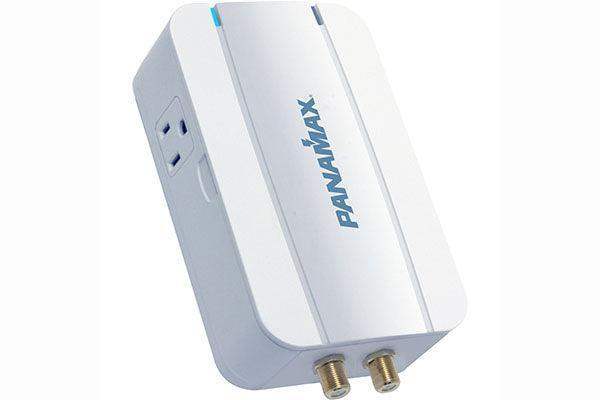

The Panamax MD2-C is a 2-outlet direct plug-in surge protector with coaxial signal line protection for cable TV, satellite, or antenna connections. It combines AC surge suppression with an F-connector passthrough covering 0 MHz to 2.2 GHz, making it a practical single-unit solution for wall-mounted AV equipment that requires both power and coaxial signal protection.

Product Description

The MD2-C plugs directly into a 15-amp wall outlet and provides two filtered, surge-protected AC outlets alongside a coaxial input/output for CATV, satellite, or antenna signal lines. The coaxial section uses female F-connectors and supports frequencies from 0 MHz to 2.2 GHz with less than 5 dB insertion loss and a 75V clamping level — appropriate for protecting cable modems, satellite receivers, and over-the-air tuners from transients that enter through the antenna or coax feed. AC protection uses Panamax's Protect or Disconnect circuitry at 1,350 joules and a 60,000-amp peak impulse current rating, with sub-nanosecond response time. The 1.625-inch depth profile keeps the unit flush at the outlet. RFI/EMI filtration on the AC side attenuates power line noise. Compliance with C-UL (UL 1449) is confirmed. Available at Creation Networks.

Key Features

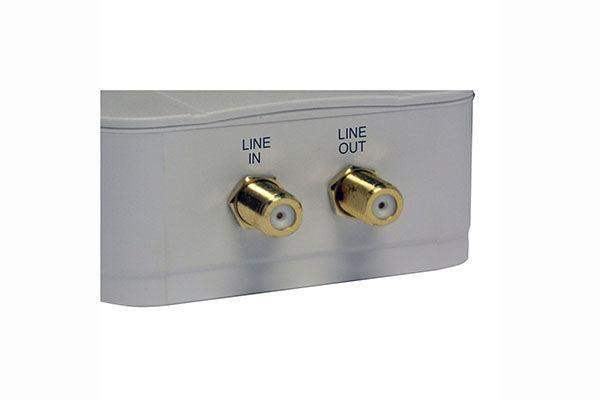

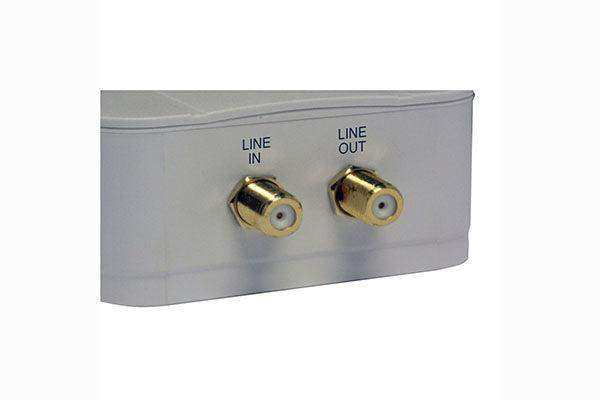

• Coaxial Signal Protection — Female F-connector in/out; 0 MHz–2.2 GHz; 75V clamping; <5 dB insertion loss for CATV, satellite, and antenna.
• 1,350-Joule AC Surge Protection — 60,000A peak impulse current; Protect or Disconnect circuitry; <1 ns response time.
• 2 Filtered AC Outlets — Both outlets include RFI/EMI filtration and full surge protection.
• Thermal Fusing — Secondary protection against sustained overcurrent conditions on the AC side.
• Compact Direct Plug-In Design — 1.625" depth; plugs directly into standard 15A wall outlet.
