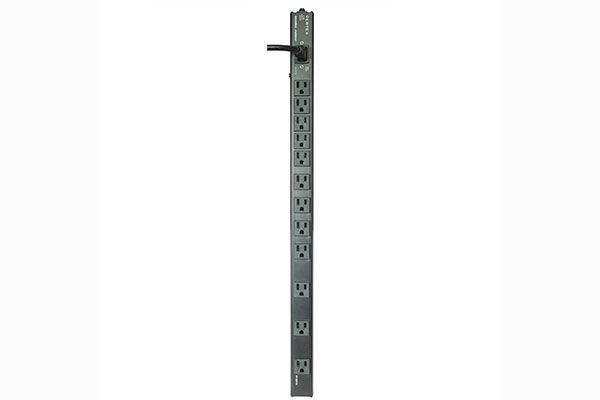

Panamax 12 outlet power strip designed to be mounted to a vertical section of an equipment rack - VT-EXT12

Product Overview

The Panamax VT-EXT12 is a 12-outlet vertical rack power strip that mounts to the rear vertical leg of a standard equipment rack, providing high outlet density without consuming front-panel rack units. It pairs with Panamax or Furman power management units, functioning as a distribution extension that inherits the upstream unit's surge protection and AC noise filtration. The VT-EXT12 is the mid-size option in the Panamax Vertex vertical strip family, sitting between the 8-outlet VT-EXT and the 16-outlet VT-EXT16.

Product Description

The VT-EXT12 distributes 12 AC outlets along its steel housing, with 4 of those outlets transformer-spaced to handle bulky wall-wart adapters without blocking neighboring receptacles. The heavy-duty 14 AWG, 10-foot detachable power cord connects to an upstream power conditioner or branch circuit, with a security retention bracket on the cord connection preventing accidental disconnection during rack servicing. A 12A resettable circuit breaker provides load protection and eliminates fuse replacement after an overload trip. Plastic spacers in the mounting clip hardware electrically isolate the strip from the rack frame, preventing chassis-to-rack ground loops that can introduce hum into audio systems. The VT-EXT12 can be deployed as a standalone PDU connected directly to a wall circuit or as an extension hanging off an existing Panamax or Furman power conditioner — in the latter configuration it passes through all filtering and protection from the upstream unit. For rack installations requiring more outlets than a standard 1U or 2U power conditioner provides, the VT-EXT12 offers a compact vertical footprint with practical outlet count for most mid-scale AV rack builds.

Key Features

• 12 AC Outlets — Includes 4 transformer-spaced outlets; distributes along a vertical rack rail without consuming rack units.
• 12A Resettable Circuit Breaker — Overload protection with push-to-reset breaker; no fuse replacement required.
• 14 AWG Detachable 10-Foot Power Cord — Heavy-duty cord with security retention bracket prevents accidental disconnection.
• Vertical Rack Mounting — Attaches to rear vertical leg of standard equipment rack; does not occupy front-panel rack units.
• Ground Isolation — Plastic spacers in mounting clips isolate strip from rack frame to prevent ground loops.
• Standalone or Downstream Use — Operates as an independent PDU or as an extension of an upstream Panamax/Furman power conditioner, inheriting its protection.
