Overview
Automated camera switching for classrooms
Spec Sheet Get advanced audio and video conferencing in flex spaces up to 35' x 55' (10.7 x16.8 m). Thanks to Nureva’s sound location data for automated camera switching
and Sony’s built-in AI analytics, remote participants will always see the speaker
clearly. And with true full-room microphone pickup and continuous autocalibration,
they’ll hear everything clearly as well, no matter how the space is reconfigured.
The HDL410 system delivers pro audio performance without the cost and complexity of a custom pro AV system. It combines a powerful connect module with two integrated microphone and speaker bars to offer advanced processing and premium features for rooms up to 35' x 55'. No matter where people sit in the room, they’ll always be heard by remote participants. The HDL410 takes less than an hour to install, with no need for specialized skills or complicated multicomponent setups. And with continuous autocalibration, there’s never a need to make audio adjustments when a room is reconfigured.
Next-generation microphone pickup
Like all Nureva® systems, the HDL410 is powered by patented Microphone Mist™ technology, which fills a space with thousands of virtual microphones for true full-room audio coverage. Because the HDL410’s connect module has greater processing power and expanded memory, it unlocks more advanced audio capabilities within the technology. This includes processing the physical mics from two bars together instead of separately, resulting in clearer, more consistent microphone pickup
Simple wall-mounted installation
Installing the HDL410 is an easy project that takes about 60 minutes. You hang each unit on the wall with two screws, run one cable from each unit to the connect module and another to a computer or other internet-connected device. Compare that to traditional systems for large spaces that may include choosing and installing multiple mics, speakers, cables and a DSP – a process that can take days and require outside technicians.
Tools to manage at scale
The HDL410 and all your Nureva devices can be managed from anywhere with Nureva Console – our secure cloud-based platform included with each system. Use it to remotely install firmware updates, check device status, analyze room data, access developer APIs and more. With the HDL410, there’s no need for a dedicated in-room PC to manage your devices. Console Direct gives you a secure, continuous connection to your account with no need to download software.
Installing the HDL410 is a simple process that can take less than 60 minutes, with no special skills required. From where and how to mount the integrated microphone and speaker bars to running the Ethernet cable to making the final connections and accessing our management software, this video will help to get you up and running in no time.

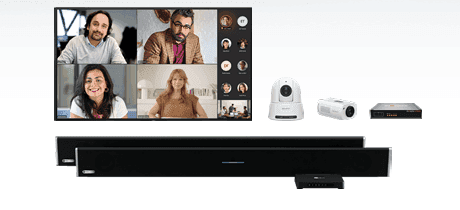

Solution components
Nureva® HDL410 audio conferencing system
• Two microphone and speaker bars providing full-room pickup with 16,384 virtual mics
• Next-gen Microphone Mist™ technology producing sound location data for simplified
automated camera switching
• Connect module with advanced processing power and pro AV features (no DSP required)
• Easy wall-mounted installation in under 60 minutes with no specialized skills or tools
• Includes Nureva Console, our device management platform that enables the setting
of camera zones, monitoring of devices and more
• Available in black (HDL410-B) or white (HDL410-W)
• 2-year warranty (additional 3 years available)
• Exceptionally bright, high-contrast
4K HDR images
• Unique Deep Black Non-Glare Coating
• Designed for flexible installation
• Available in screen sizes from 55" to 85"
• 5-year warranty
Sony SRG-A40 camera
• Built-in AI analytics to clearly detect,
track and frame the instructor
• Clear Image Zoom technology to
deliver 40x zoom in FHD and 30x in 4K
• Expansive 70° wide angle coverage
to capture every point of view
• High-speed pan/tilt to keep track
of the instructor’s movement
• Available in black or white
• 5-year warranty
Sony SRG-XP1 camera
• Wide angle lens covering the entire
room with an over 102° field of view
• 1/1.8-type Exmor R™ CMOS sensor
for 4K 60p video
• Compact and easy to integrate into
any room
• Streaming video available over HDMI,
Ethernet and USB 3.0 interfaces
• Available in black or white
• 5-year warranty
INOGENI® CAM230 multi-camera selector
• Supports up to three cameras
(two USB 3.0/2.0 and one HDMI)
• Compatible with all USB and
HDMI cameras
• No drivers required
• Automatic multi-camera switching
using the Nureva camera zones feature
• 2-year warranty
- Next-generation microphone pickup
- Seamless integration with other products
- Simple, wall-mounted installation
- Tools to manage at scale
- Enjoy the simplicity of USB plug and play audio conferencing. The connect module can be connected to an in-room PC, a collaboration hub, a conferencing appliance, a video conferencing codec or any laptop.
- With 16,384 virtual microphones all precisely targeted, voices are picked up everywhere. People can speak and act naturally and be confident they will be heard by those who are remote.
- HVAC and other unwanted sounds can seriously affect your audio. So instead of trying to suppress them after the fact, we use adaptive learning algorithms to preemptively ignore them.
- We apply gain separately to each sound in a space based on its position. This lets us make specific optimizations that create a natural listening experience for remote participants – as if they were in the room.
- With our technology, you never need to make manual adjustments when you reconfigure your space. The system is automatically and continuously adapting to changes in your room’s acoustic profile.
- Microphone Mist technology listens to, and processes, all virtual microphones simultaneously. Conversations sound natural even when more than one person is speaking at the same time.
- The HDL410’s unified coverage map enables the physical mics from two microphone and speaker bars to be processed together instead of separately, creating a giant microphone array that spans the entire room. Each virtual microphone is targeted with greater
- Amplify a presenter or instructor’s voice in the room without compromising the listening experience of remote attendees.
- Use precise sound location data to steer and switch your third-party cameras so remote participants always see who’s speaking.
Specifications
MICROPHONES
- Number of microphones: 24 (12 each unit)
- Microphone type: Low-noise omnidirectional MEMS
- Frequency response: 100Hz to 7 kHz
- Microphone total harmonic distortion (THD): 0.25% (typical)
- Transmission: Full duplex
- Microphone range: 20' or 6 m (optimal)
SPEAKERS
- Number of speakers: 4 x 20W
- Speaker type: 4" aluminum cone
- Maximum acoustic output: 91 dB-SPL @ 1 m
- Speaker total harmonic distortion (THD): 0.25%
Included in the Box
- Integrated microphone and speaker bar x2
- Connect module, black
- Connect module mounting bracket
- Country specific, power cable 6' (2 m), black
- Ethernet cable, CAT6 SSTP, 50' (15 m), Class 3 rated, black x2
- USB Type A-B cable, 6' (2 m), VW-1 rated, black
- Infrared remote
- AAA batteries x2
- Documentation kit
