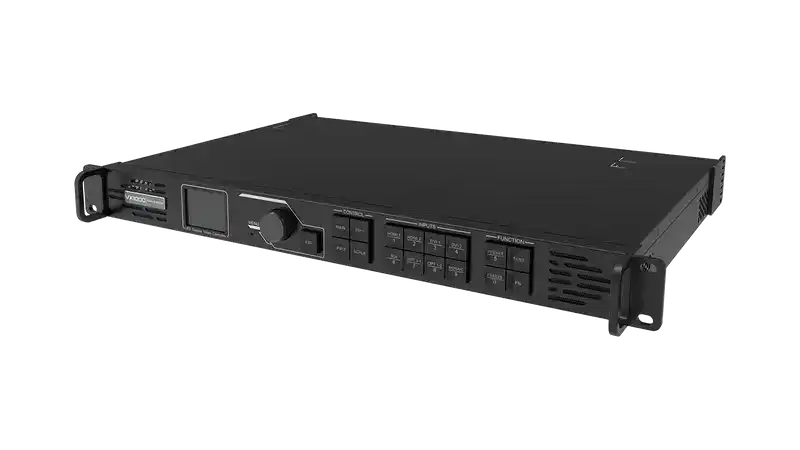

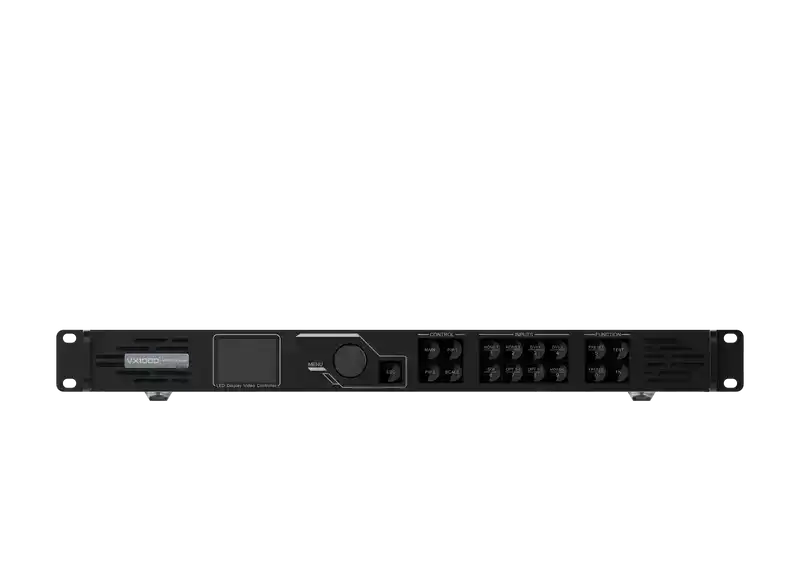

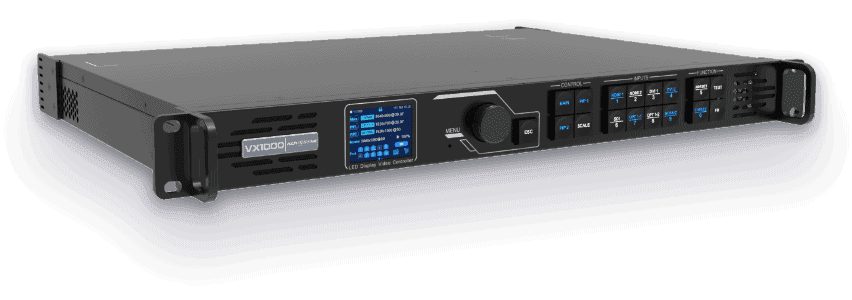

NovaStar VX1000 is an all-in-one controller that integrates video processing and video controlling in one device. Up to 6.5 million Pixels

The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box.

VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.

Hardware features

• Input connectors:
• 1x HDMI 1.4 (IN & LOOP)
• 1x HDMI 1.4
• 1x DVI (IN & LOOP)
• 1x DVI
• 1x 3G-SDI (IN & LOOP)
• 1x 10G optical fiber port (OPT1)
• Output connectors:
• 10x Gigabit Ethernet ports
• A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
• 2x Fiber outputs" "OPT 1 copies the output on 10 Ethernet ports.
• OPT 2 copies or backs up the output on 10 Ethernet ports.
• 1x HDMI 1.3
• For monitoring or video output:
• Self-adaptive OPT 1 for either video input or sending card output
• Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
• Audio input and output
• Audio input accompanied with HDMI input source
• Audio output via a multifunction card
• Output volume adjustment supported
• Low latency
• Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
• 3x layers
• Adjustable layer size and position
• Adjustable layer priority
• Output synchronization
• An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
• Powerful video processing
• Based on SuperView III image quality processing technologies to provide stepless output scaling.
• One-click full screen display
• Free input cropping
• Easy preset saving and loading
• Up to 10 user-defined presets supported
• Load a preset by simply pressing one button
• Multiple kinds of hot backup
• Backup between devices
• Backup between "Ethernet ports"
• Backup between "input sources"
• Mosaic input source supported
• The mosaic source is composed of several input connectors of the same type.
• Up to 4 units cascaded for image mosaic
• Three working modes
• Video Controller
• Fiber Converter
• Bypass
• All-round color adjustment
• Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma
• 3D function
• Work with the EMT200 3D emitter and matched 3D glasses to present a 3D visual experience.
• Pixel level brightness and chroma calibration
• Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
• Multiple operation modes
• Control the device as you wish via V-Can
• NovaLCT or device front panel knob and buttons
