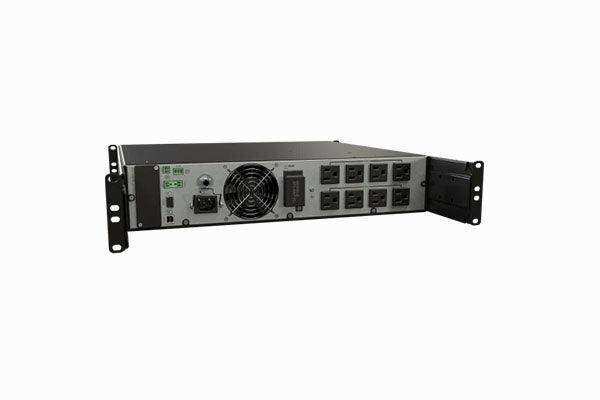

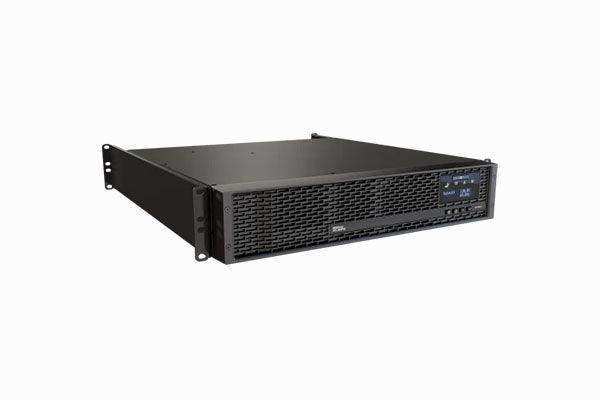

Middle Atlantic NEXSYS UPS Backup Power System (1000 VA, No Network Card, Bank Outlet) - UPX-1000R-2

Save 10%
Middle Atlantic SKU: UPX-1000R-2
No reviews
Price:
$1,975.00 $2,200.00

Description

NEXSYS is built on a promise that we’ve kept for over two decades – more than half the life of the company – that our power products are designed, engineered, and built for AV. It’s one thing to say it, it’s another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you’d expect.

  • 1000VA
  • 15 Amp
  • 8 Outlets with Bank Control
    • (2) outlet banks with 4 outlets each
  • An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
    1.  Rack ears are pre-installed with the “4-Post” mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
    2. The battery is already connected so just plug it in
  • Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to  customize and configure various settings and notifications if you don’t like our default settings - we won’t be offended
  • “NEXSYS, alert me when…”. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
  • The IEC Input allows for better cable management of the power cord if shorter or longer cords are required
    • All UPSs include a 6’ (1.8m) IEC power cord
  • Name, address, and date of birth, please? Easily locate the Serial Number, replacement Battery Part Number, Battery Replacement Date, and UPS Firmware Version via the front LCD screen. You can even see the battery installation date.
  • Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
  • Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn’t up to your standards
  • Swap it like it’s hot. Hot swappable battery from the front access panel for easy service without disrupting the system
  • Add RackLink™ Remote Management. The NEXSYS UPS is RackLink compatible (RackLink card sold separately) and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.
  • Included RS232 port for control
  • (2) dry contact ports for alerts
    1. 1 contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold
    2. 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds
  • Energy Star Certified
Dimensions & Measurements AC Voltage Input 120 VAC AC Voltage Output
  • 110
  • 120V
  • 127
 Amps 15 Amp Cord Length 6 ft (1.8 m) Depth 16 in (40.6 cm) Height 3.5 in (8.8 cm) Mounting Depth Max 36 in (91.4 cm) Mounting Depth Min 22 in Operating Temperature 32°F - 104°F Primary Package Weight 54 lbs (24.5 kg) Product Weight 44.1 lbs (20 kg) Rack Units 2 RU VA 1,000 VA Volts AC 120 VAC Volts DC 36 VDC Watts 900 W Width 19 in (48.3 cm) Characteristics & Features Color Black Federal Ops Country of Origin China Isolated Ground No Mounting Points 4 Network Card Included No Network Enabled Yes Outlet Control Type Bank Outlet Count 8 Plug Type NEMA 5-15P Receptacle Type NEMA 5-15R Surge Protection Type MOV Topology Line Interactive Warranty
  • 2 Years Battery
  • 3 years
 Certifications & Warranties Certifications
  • CSA
  • cTUVus tested to UL1778
  • FCC Class A
  • REACH
  • ROHS
