Middle Atlantic UPX-RLNK-2000R-8 – 2000VA Network UPS, 8 Individual Outlets

Product Overview

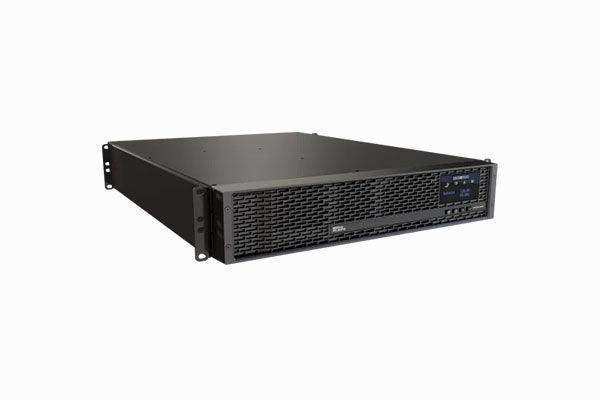

The Middle Atlantic UPX-RLNK-2000R-8 is a 2000VA rack-mount uninterruptible power supply with integrated RLNK network-link smart PDU capability, designed for AV rack systems requiring individual outlet-level control. This unit addresses the needs of AV integrators and IT managers who require remote power management, per-outlet sequencing, and real-time load monitoring in a single 2U form factor. With 8 individually switched outlets, it supports precise power cycling of connected AV and IT equipment without disrupting the entire rack. It is part of Middle Atlantic's NEXSYS line, purpose-built for professional AV infrastructure.

Product Description

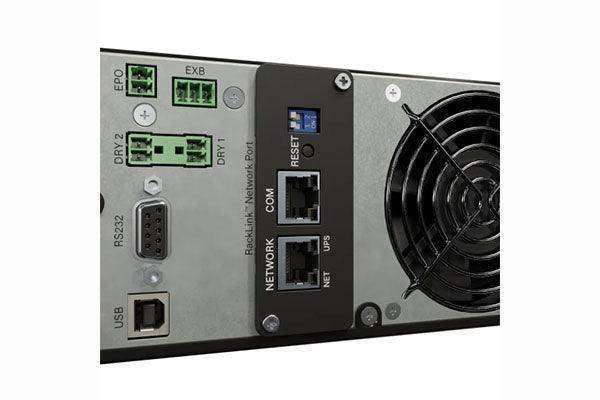

The UPX-RLNK-2000R-8 combines a 2000VA/1800W line-interactive UPS with Middle Atlantic's RLNK smart PDU platform, eliminating the need for separate UPS and PDU units in a rack. Each of the 8 NEMA 5-20R outlets is individually controllable via network, allowing technicians to remotely sequence startup, schedule reboots, or cut power to a single device without affecting others. The unit provides true sine wave output on battery, which is essential for protecting modern AV processors, DSPs, and network switches that use active power factor correction. Network connectivity is provided via a dedicated RJ-45 port and a built-in web interface, with SNMP support for integration with facility monitoring systems. The UPS section delivers automatic voltage regulation (AVR), protecting equipment against brownouts and over-voltage conditions without switching to battery. Runtime data, battery health, and load levels are accessible remotely, supporting proactive maintenance schedules. The unit fits standard 19-inch EIA racks and integrates directly with Middle Atlantic's rack ecosystem. It is well-suited for boardrooms, command centers, huddle rooms, and any AV installation where power reliability and remote manageability are project requirements. Installation is straightforward for integrators familiar with Middle Atlantic rack systems, with front-panel display for local monitoring.

Key Features

• 2000VA/1800W Capacity — Sufficient headroom for full AV rack loads including amplifiers, processors, and network gear.

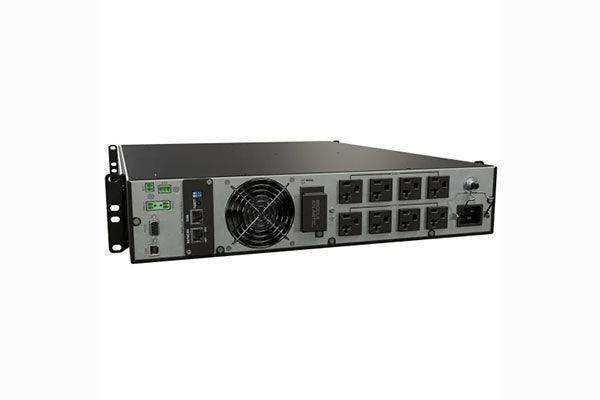

• 8 Individually Switched NEMA 5-20R Outlets — Per-outlet control enables precise power sequencing and remote reboot of individual devices.
• True Sine Wave Output — Protects AV equipment with active PFC power supplies from battery switching artifacts.
• Integrated RLNK Network PDU — Combines UPS and smart PDU in one unit, reducing rack U-space consumption.
• SNMP & Web Interface — Integrates with enterprise monitoring platforms and allows browser-based remote management.
• Automatic Voltage Regulation (AVR) — Corrects brownouts and over-voltage without switching to battery, extending battery life.
• Real-Time Load & Battery Monitoring — Front-panel and remote visibility into runtime remaining, load percentage, and battery status.
• 2U Rack-Mount Form Factor — Designed for standard 19-inch EIA racks in professional AV and IT environments.

Typical Applications

• Corporate boardroom AV rack power management
• Command and control center equipment protection
• Conference room AV system integration
• Broadcast and production rack infrastructure
• Network closet UPS with remote PDU control
• Higher education AV technology systems

Technical Specifications

Frequently Asked Questions

What is the difference between the -8 and -2 suffix models?

The -8 suffix indicates 8 individually switched outlets, meaning each outlet can be controlled independently. The -2 suffix indicates 2 bank-switched outlet groups, where outlets are controlled in two groups rather than individually.

Does this UPS require a separate PDU?

No. The UPX-RLNK-2000R-8 integrates Middle Atlantic's RLNK smart PDU functionality directly into the UPS, so a separate PDU unit is not required for network-managed outlet control.

Is true sine wave output required for AV equipment?

True sine wave is strongly recommended for AV processors, DSPs, and network switches that use active power factor correction (APFC) power supplies, as modified sine wave can cause these devices to malfunction or overheat on battery power.

Can this unit be managed via SNMP?

Yes, the UPX-RLNK-2000R-8 supports SNMP, enabling integration with enterprise network management systems and facility monitoring platforms.

What rack space does this unit require?

The unit occupies 2U in a standard 19-inch EIA rack enclosure.
