Middle Atlantic UPX-RLNK-2000R-2 – 2000VA Network UPS, 2 Bank Outlets

Product Overview

The Middle Atlantic UPX-RLNK-2000R-2 is a 2000VA line-interactive rack UPS with integrated RLNK network-link smart PDU, offering bank-switched outlet control for AV rack power management. Designed for AV integrators and IT managers, this unit provides 2 independently switched outlet banks for sequenced power control of AV and IT equipment within a single 2U rack package. It combines UPS battery backup with remote power management, eliminating the need for a separate network PDU. As part of Middle Atlantic's NEXSYS product line, it is purpose-built for professional AV infrastructure where reliability and remote access are essential.

Product Description

The UPX-RLNK-2000R-2 delivers 2000VA/1800W of line-interactive UPS capacity with true sine wave output on battery, protecting AV processors, DSPs, and network equipment that rely on active power factor correction power supplies. Unlike the -8 model with per-outlet control, this unit offers 2 outlet banks, each independently switchable via network, making it a cost-effective option when group-level power control is sufficient for the installation. Both banks can be configured for startup sequencing to prevent inrush current issues when powering on large AV systems. Network management is provided through a dedicated RJ-45 Ethernet port with a built-in web interface and SNMP support, enabling integration with facility monitoring and building management systems. Automatic voltage regulation (AVR) handles under-voltage and over-voltage conditions without consuming battery runtime, which extends overall battery service life. The front panel provides local status display for load, battery level, and runtime, while the same data is accessible remotely. The unit mounts in standard 19-inch EIA racks and is compatible with Middle Atlantic's rack enclosure ecosystem. It is well-suited for conference rooms, boardrooms, and AV head-end closets where cost-to-performance balance is important and per-device outlet switching is not required.

Key Features

• 2000VA/1800W Capacity — Supports full AV rack loads including displays, processors, amplifiers, and network switches.
• 2 Independently Switched Outlet Banks — Group-level control for power sequencing without the cost premium of per-outlet switching.
• True Sine Wave Output on Battery — Protects APFC-based AV equipment from waveform issues during battery operation.
• Integrated RLNK Network PDU — Consolidates UPS and smart PDU functions into a single 2U unit.

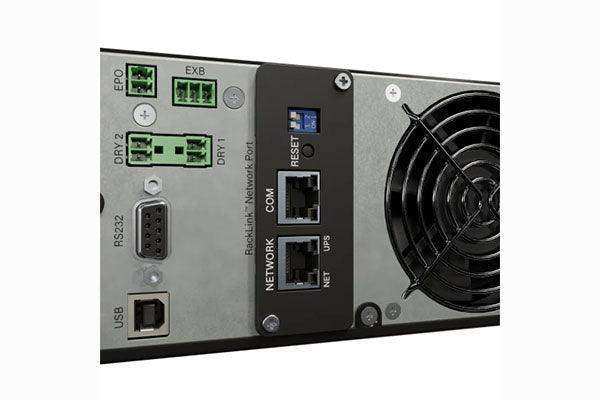

• SNMP & Web Management — Remote monitoring and control via browser interface or enterprise NMS integration.
• Automatic Voltage Regulation — Handles brownouts and surges without switching to battery power.

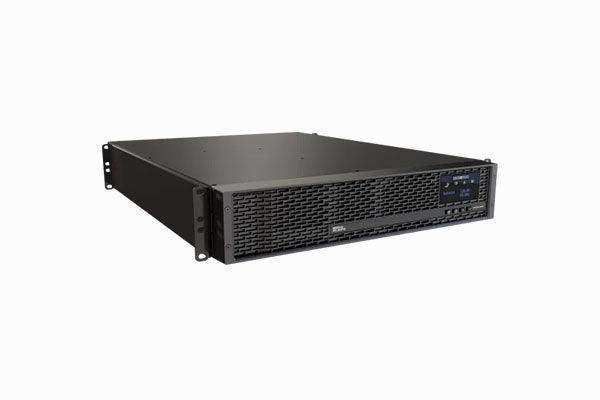

• Front-Panel Status Display — Local visibility into load, battery health, and runtime without requiring network access.
• 2U Rack-Mount Design — Compatible with standard 19-inch EIA rack enclosures.

Typical Applications

• Corporate conference room AV rack systems
• Boardroom AV infrastructure with power sequencing requirements
• AV head-end closet equipment protection
• Network closet UPS with group outlet switching
• Higher education classroom AV technology
• Commercial meeting space AV integration

Technical Specifications

Frequently Asked Questions

What does bank-switched mean compared to individually switched?

Bank-switched means outlets are grouped and controlled together in two groups. Individually switched (as in the -8 model) means each outlet can be controlled independently. Bank control is suitable for installations where equipment naturally divides into two logical groups.

Does this unit include network PDU functionality?

Yes. The RLNK integration provides full network PDU functionality including remote outlet switching, load monitoring, and scheduling, all managed from the same unit as the UPS.

Is a true sine wave output important for my AV equipment?

Yes, for most modern AV and IT equipment using APFC power supplies. Modified sine wave can cause these devices to run hot or fail during battery operation. The UPX-RLNK-2000R-2 delivers true sine wave on battery to prevent these issues.

Can I monitor battery runtime remotely?

Yes, real-time runtime estimates, load percentage, and battery health are available through the web interface and SNMP MIB.

How does this differ from the UPX-RLNK-2000R-8?

The -2 model has 2 outlet banks for group control. The -8 model has 8 individually switched outlets for per-device control. Choose the -2 when group-level switching meets your deployment requirements at a lower cost.
