Middle Atlantic UPX-RLNK-1500R-8 – 1500VA Network UPS, 8 Individual Outlets

Product Overview

The Middle Atlantic UPX-RLNK-1500R-8 is a 1500VA line-interactive rack UPS with integrated RLNK network-link smart PDU, providing individual outlet-level control for AV and IT rack systems. Designed for AV integrators and IT managers deploying medium-sized racks in conference rooms, huddle spaces, and AV closets, this unit delivers reliable battery backup combined with per-outlet remote power management. Its 8 individually switched NEMA 5-20R outlets allow technicians to remotely reboot, sequence, or cut power to specific devices without disrupting the full rack. Part of Middle Atlantic's NEXSYS line, it is purpose-built for professional AV infrastructure where space, reliability, and manageability converge.

Product Description

The UPX-RLNK-1500R-8 combines 1500VA/1350W of line-interactive UPS protection with Middle Atlantic's RLNK smart PDU platform, replacing the need for two separate units and conserving rack space. True sine wave output on battery ensures safe operation of AV processors, DSPs, and network devices with APFC power supplies during power events. Each of the 8 NEMA 5-20R outlets is individually controlled via the built-in network interface, allowing precise power sequencing at system startup and targeted remote reboots during operation. The dedicated RJ-45 Ethernet port provides access to a web-based management console and supports SNMP for integration with enterprise monitoring platforms and building management systems. Automatic voltage regulation (AVR) compensates for brownouts and over-voltage conditions without drawing on battery, extending battery service intervals. The front panel provides real-time local indication of load level, battery status, and estimated runtime. At 2U, the unit is well-suited for installations where rack space is at a premium, such as wall cabinets, smaller equipment racks in huddle rooms, and AV closets. It is compatible with Middle Atlantic's full line of rack enclosures and accessories.

Key Features

• 1500VA/1350W Capacity — Appropriate for medium AV racks including displays, processors, control systems, and network gear.

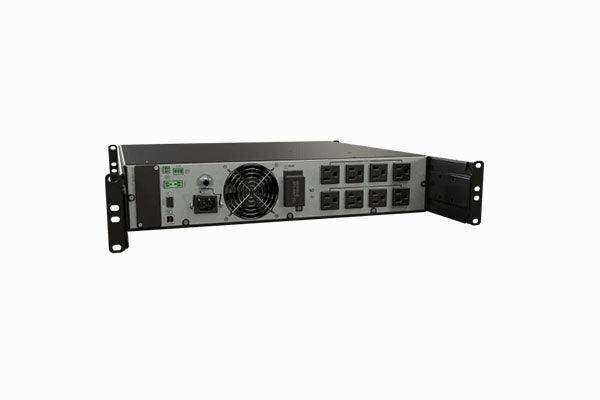

• 8 Individually Switched NEMA 5-20R Outlets — Per-outlet control allows independent power cycling and sequencing of each connected device.
• True Sine Wave Output on Battery — Safe operation for APFC-based AV and IT equipment during battery events.
• Integrated RLNK Network PDU — UPS and smart PDU combined in a single 2U unit, reducing rack footprint.

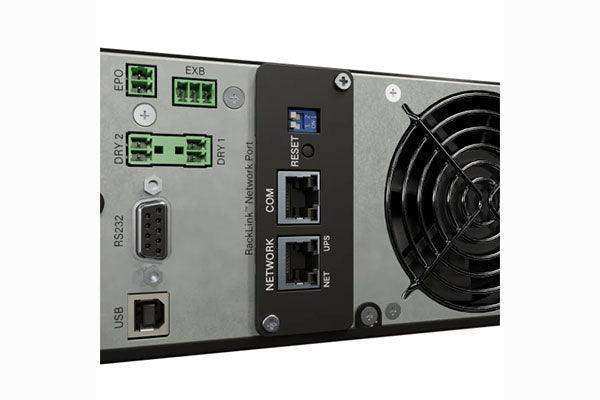

• SNMP & Web Interface Management — Remote access via browser or NMS for monitoring, control, and scheduling.
• Automatic Voltage Regulation — Protects against brownouts and surges without battery consumption.
• 2U Compact Rack Form Factor — Efficient use of rack space in huddle rooms, AV closets, and small equipment racks.

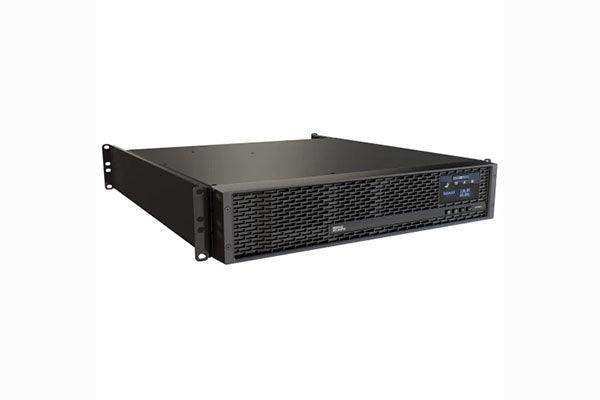

• Front-Panel Display — Local monitoring of load, battery health, and runtime without network access.

Typical Applications

• Huddle room and small conference room AV racks
• AV closet and head-end equipment protection
• Collaborative workspace AV integration
• Wall-mount rack installations with power management
• Higher education classroom AV systems
• Corporate breakout room AV infrastructure

Technical Specifications

Frequently Asked Questions

How does the 1500VA model compare to the 2000VA NEXSYS models?

The UPX-RLNK-1500R-8 provides 1500VA/1350W, suitable for smaller or medium racks. The 2000VA models offer 2000VA/1800W for larger rack loads. Both feature the same RLNK smart PDU integration and 8 individually switched outlets.

Does this unit need a separate PDU?

No. The RLNK integration provides full network PDU capability built into the UPS, including remote outlet switching, current monitoring, and power scheduling.

Can I use this in a wall-mount rack?

Yes. The 2U form factor is compatible with standard 19-inch EIA racks, including wall-mount and floor-mount enclosures from Middle Atlantic.

What happens to connected equipment during a power outage?

The UPS switches to battery and delivers true sine wave power to all outlets. Equipment remains operational for the duration of the available runtime based on load.

Is SNMP monitoring supported?

Yes, SNMP is supported for integration with network management systems, enabling automated alerts, polling, and centralized monitoring.

Where can I purchase this product?

The UPX-RLNK-1500R-8 is available through Creation Networks at https://creationnetworks.net.
