Middle Atlantic PDX-215C - NEXSYS 15A 2-Outlet Compact PDU Surge

Product Overview

The Middle Atlantic PDX-215C is a NEXSYS 15-amp, 2-outlet compact PDU with multi-stage MOV surge protection designed for space-constrained installations. Its compact form factor makes it well-suited for behind-display, digital signage, kiosk, and in-wall power distribution applications. Two mounting options are included: a clamp and L-brackets, both compatible with Lever Lock plates for tool-free rack or enclosure mounting. An IEC inlet allows the use of user-selected cord lengths, with a standard 2-foot cord included.

Product Description

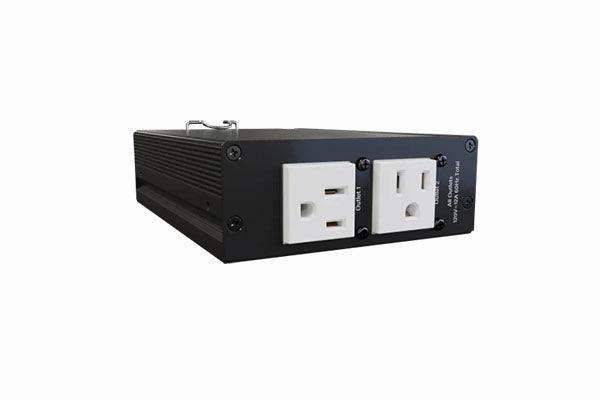

The PDX-215C is part of Middle Atlantic's NEXSYS compact PDU line, engineered to deliver reliable power protection in locations where standard 1RU rack PDUs are impractical. The unit provides two NEMA 5-15R outlets on a 15-amp circuit, sufficient for single-display or two-device installations in tight spaces. Three stages of MOV surge protection provide multi-layer defense against voltage transients, with visual surge status indicators on both the front and side of the unit for at-a-glance monitoring. Selectable under/over voltage protection via a dry contact port allows the unit to automatically cut power to outlets when line voltage falls outside the acceptable range and restore power automatically when voltage normalizes, protecting sensitive equipment without manual intervention. The outlet orientation is designed to accommodate DC transformers and wall warts without blocking adjacent outlets, maximizing the usability of both outlet positions. Two mounting solutions are included in the box: a clamp and L-brackets, both compatible with Middle Atlantic's Lever Lock plate system for tool-free mounting inside racks, kiosks, or in-wall boxes. The IEC inlet enables integrators to select the appropriate power cord length for the installation, reducing cord clutter. The PDX-215C is commonly specified for digital signage, behind-display AV equipment, and compact rack or in-wall enclosure applications where physical space is the primary constraint.

Key Features

• Compact form factor — Ideal for behind-display, kiosk, digital signage, and in-wall power applications.
• Multi-stage surge protection — 3-stage MOV surge protection with front and side visual status indicators.
• Under/over voltage protection — Selectable dry contact port automatically cuts and restores power during voltage events.
• Two mounting options — Includes clamp and L-brackets compatible with Lever Lock plate for tool-free mounting.

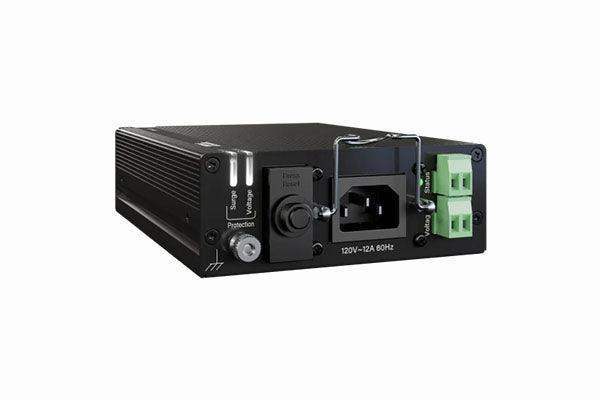

• IEC inlet — Allows user-selected cord length; 2-foot cord included.
• Outlet orientation — Designed to accommodate wall warts without blocking adjacent outlets.

Technical Specifications
