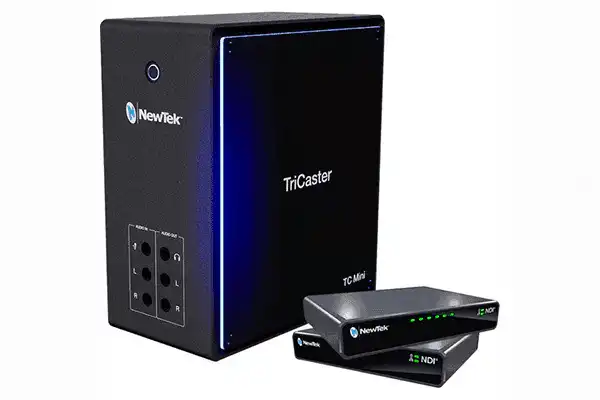

Vizrt TCM4KUHD TriCaster TC Mini 4K - includes two Spark Plus 4K IO Converters - BDL-000000004

Product Overview

The Vizrt TriCaster TC Mini 4K is a compact, desktop live production system capable of producing full UHD 4K output for broadcast, streaming, and corporate AV deployments. This bundle (SKU: BDL-000000004) includes the TC Mini 4K chassis plus two Spark Plus 4K I/O converters, providing a complete, ready-to-deploy 4K production system out of the box. Built for broadcast engineers and AV system integrators who need 4K capability in a portable form factor, the TC Mini 4K accepts HDMI and NDI sources and outputs NDI for full IP video workflow integration. The included Spark Plus converters bridge SDI and HDMI sources directly into the NDI ecosystem without additional equipment.

Product Description

The TriCaster TC Mini 4K bundle delivers a self-contained 4K live production environment designed for organizations moving to IP-based broadcast workflows. The TC Mini 4K chassis accepts HDMI inputs and connects to NDI sources over standard Gigabit Ethernet, making it compatible with an extensive range of professional cameras, PTZ units, and software encoders. The two included Spark Plus 4K I/O converters add bidirectional HDMI-to-NDI and SDI conversion, significantly expanding the system's connectivity without requiring a separate converter chassis. Onboard software handles live switching, virtual sets, chroma keying, multi-channel audio mixing, streaming, and recording within a single integrated interface. Live Story Creator automates show execution from a Microsoft Word script, and DataLink enables real-time data injection into on-screen graphics. With support for up to three multiview monitoring outputs and direct NDI output from all mix buses, the TC Mini 4K integrates naturally into distributed production environments, remote production setups, and permanent installation studios where 4K UHD delivery is required.

Key Features

• UHD 4K Production Output — Produces program output at full 4K UHD resolution, meeting broadcast and premium streaming delivery requirements.
• 2x Spark Plus 4K I/O Converters Included — Bundle includes two converters that bridge HDMI and NDI sources bidirectionally, eliminating the need for separate conversion hardware.
• NDI-Native Architecture — All mix outputs are available as NDI streams over IP, enabling integration with NDI monitors, recorders, and downstream production systems.
• HDMI Video Inputs — Accepts HDMI camera and device sources directly without adapters, supporting resolutions up to 4K UHD.
• Live Chroma Key and Virtual Sets — Integrated LiveMatte chroma key and 30+ professional virtual sets are included for broadcast-quality compositing without external hardware.
• Multi-Channel Audio Mixer — Handles analog and digital audio sources with DSP processing, VU metering, and per-source gain control.
• Live Streaming and Recording — Simultaneous multi-platform streaming and multi-channel recording run on-board without external capture hardware.
• Live Story Creator — Automates production playback from a Microsoft Word script for structured live shows and broadcast news workflows.
• DataLink Integration — Pulls live data from spreadsheets and databases directly into on-screen titles and graphics overlays.
• 3x Multiview Monitoring Outputs — Drive up to three operator monitoring screens for full situational awareness during live production.
• Compact Desktop Form Factor — Designed for portable deployment in fly packs, field production, and space-constrained permanent installations.

Typical Applications

• Broadcast studio
• House of worship
• Sports production
• Campus athletics
• Auditorium
• Corporate all-hands room
• Multi-purpose room
• Training room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is included in the TC Mini 4K bundle?

The bundle (BDL-000000004) includes the TriCaster TC Mini 4K production unit and two Spark Plus 4K I/O converters. The Spark Plus converters provide bidirectional HDMI and NDI conversion, allowing HDMI cameras and SDI devices to feed directly into the TC Mini 4K.

Does the TC Mini 4K support SDI cameras?

Not directly from the TC Mini 4K chassis. The included Spark Plus 4K I/O converters can accept HDMI sources and output NDI. For direct SDI connectivity, use the converters with appropriate SDI-to-HDMI adapters or choose a model with native SDI inputs such as the TriCaster TC410 Plus.

What streaming resolutions are supported?

The TC Mini 4K supports streaming up to 4K UHD to compatible CDN and streaming platforms, including YouTube Live, Facebook Live, and custom RTMP endpoints.

Is the TC Mini 4K suitable for permanent installation?

Yes. While the desktop form factor is optimized for portable and field production, many organizations deploy the TC Mini 4K in fixed broadcast studios, house of worship productions, and corporate AV rooms.

What warranty is included?

The TriCaster TC Mini 4K bundle includes a 1-year limited manufacturer warranty from Vizrt.
