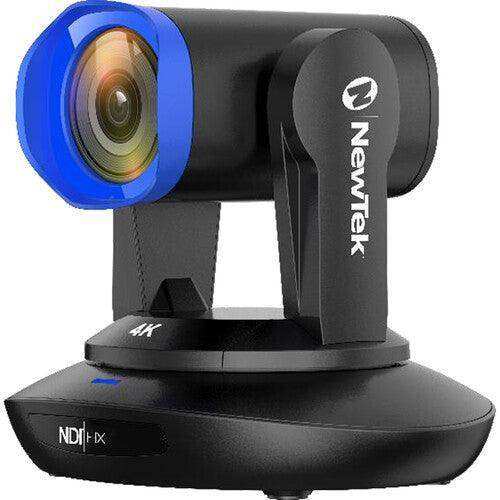

NewTek PTZ3UHD PTZ3 UHD NDI Camera with 30x Optical Zoom - FG-003270-R001
Roll over image to zoom in Click on image to zoom
NewTek PTZ3UHD PTZ3 UHD NDI Camera with 30x Optical Zoom - FG-003270-R001
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

NewTek PTZ3UHD PTZ3 UHD NDI Camera with 30x Optical Zoom - FG-003270-R001

Availability: Call for Availability
Availability: Direct Ship
Vizrt SKU: FG-003270-R001
No reviews
Price:
$4,695.00

Description

ombining the simplicity and control of a PTZ camera with NDI | HX 3 protocol, the updated PTZ3 UHD NDI Camera with 30x Optical Zoom from NewTek provides video professionals, technology managers, and A/V system integrators with up to UHD 4K60 video for remote learning, hospitals, meeting rooms, and studios. The PTZ3 UHD features a 30x optical zoom with 2x digital zoom capability and smooth, natural looking pans and tilts. It can send high-quality video with almost no latency while using less bandwidth than previous NDI protocols, and it features both SDI and HDMI outputs for local monitoring. The PTZ3 features a 3.5mm line input and a mini-XLR audio input connection, and also includes an XLR to mini-XLR adapter for use with professional audio equipment.

The camera supports tally, control, power, audio, and video using a single network cable, allowing you to use the PTZ3 UHD with any application that supports NDI. The single-cable connection simplifies placement of the camera, as you only have to run a single Ethernet cable and do not need to run a separate power line. The included ceiling and wall mounts allow you to mount the PTZ3 UHD out of the way, so you can control it remotely using NDI, IP, RS-232, or with the included IR remote.

Multicast Mode Optionally allow multiple destinations to receive video from your NDI | HX PTZ Camera without individual point-to-point connections to conserve network bandwidth Vibrant Video The camera offers 4K60 ultra-high-definition video and a state-of-the-art Sony sensor. NDI Output Acquire and deliver video to the network in full UHD or HD, with NDI output via NDI and native support for resolutions up to 2160p60 or 1080p60. NDI | HX3 Enjoy advanced flexibility and simplicity: using an NDI | HX enabled device, users can select NDI | HX 3 as an option for better video with reduced latency, using a fraction of the bandwidth, all while maintaining the visually lossless standards NDI users' demand. Professional XLR Audio Use mini-XLR connection in addition to the standard 3.5mm line in. Delivering clean, professional-level audio directly from the camera into the NDI network, the XLR feature offers an array of connectivity options. When combined with NDI Audio Direct, the XLR audio connects to NDI receivers and virtually any audio software providing unprecedented levels of creative flexibility. Power over Ethernet Streamline installation and reduce cabling complexity, optionally eliminating the need for a separate power supply connection with support for Power over Ethernet via PoE+. Pan-Tilt-Zoom Perform real-time pan, tilt, and zoom camera movements with motor-driven PTZ camera control and configurable preset positions. 3G-SDI and HDMI Output Optionally acquire and deliver video into conventional workflows with support for 3G-SDI and HDMI hardware output. Program and Preview Tally Receive tally notification from compatible NDI devices via physical LEDs when video output from your NDI | HX PTZ Camera is visible on Program and/or Preview. Remote Control & Monitoring Operate camera controls, monitor video, manage login credentials, and configure audio, video, and network settings from any compatible networked device, using the Web-based user interface or NewTek NDI Studio Monitor. Remote Recording Capture live NDI | HX PTZ Camera video remotely from any compatible computer or device, using NewTek NDI Studio Monitor. Video Settings Manage NDI | HX PTZ Camera options to include exposure, focus, iris, shutter speed, white balance, wide dynamic range, and more with configurable video settings. Audio Present high-quality audio, with support for mic and line-level audio input, and adjustable volume control. NDI Webcam Input Designate your NDI | HX PTZ camera as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more, via the included software driver. Network Identification Easily identify your NDI | HX Camera on the network with the ability to apply custom device and channel names. NDI offers auto-discovery; all connected NDI devices are able to find each other automatically without the need to enter IP addresses and port information. Firmware Updates Download and install free firmware updates to ensure your NDI | HX PTZ Camera is equipped with the latest features, capabilities, and performance enhancements.
Image Sensor 1/1.8"-Type CMOS
Sensor Resolution Effective: 12 Megapixel
Shutter Type Electronic Global Shutter
Shutter Speed 1/30 to 1/10000 Seconds
Optical Zoom Ratio 30x
Max Digital Zoom 2x
External Recording Modes RJ45
UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080p) at 24.00/25/29.97/50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/50/59.94/60.00 fps
HDMI
UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080p) at 24.00/25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/50/59.94/60.00 fps
SDI/BNC
HD (1920 x 1080p) at 23.98/24.00/25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/50/59.94/60.00 fps
Broadcast Output NTSC/PAL
IP Streaming NDI|HX
3840 x 2160 at 25p, 29.97p, 30p, 50p, 60p
1920 x 1080 at 24p, 25p, 29.97p, 50p, 59.94p, 60p
1280 x 720 at 25p, 29.97p, 30p, 50p, 60p
Supported Control Protocols IP
IR
NDI
RS-232
Imaging
Image Sensor 1/1.8"-Type CMOS
Sensor Resolution Effective: 12 Megapixel
Built-In ND Filter None
Focus Control Autofocus
Exposure Control
Shutter Type Electronic Global Shutter
Shutter Speed 1/30 to 1/10000 Seconds
Flip / Mirror Support Image Flip
Lens
Focal Length 6.9 to 214.6mm
Optical Zoom Ratio 30x
Max Digital Zoom 2x
Field of View Horizontal: 60 to 2°
Maximum Aperture f/1 to 14
Minimum Focus Distance 4.9' / 1.5 m
Video Capture
External Recording Modes RJ45
UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080p) at 24.00/25/29.97/50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/50/59.94/60.00 fps
HDMI
UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080p) at 24.00/25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/50/59.94/60.00 fps
SDI/BNC
HD (1920 x 1080p) at 23.98/24.00/25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 25/29.97/50/59.94/60.00 fps
Embedded Audio HDMI/NDI
Broadcast Output NTSC/PAL
IP Streaming NDI|HX
3840 x 2160 at 25p, 29.97p, 30p, 50p, 60p
1920 x 1080 at 24p, 25p, 29.97p, 50p, 59.94p, 60p
1280 x 720 at 25p, 29.97p, 30p, 50p, 60p
Control
Move Speed Pan: 120°/sec
Tilt: 80°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 60°)
Tally Light Yes
Supported Control Protocols IP
IR
NDI
RS-232
Interface
Video I/O 1 x HDMI Output
1 x BNC (3G-SDI) Output
1 x RJ45 (NDI) Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body
1 x Mini XLR Microphone Input
Other I/O 1 x D-Sub 8-Pin (RS-232) Input
1 x D-Sub 8-Pin (RS-232) Output
1 x USB-C Input
Power
PoE Support PoE+ 802.3at
Power I/O 1 x DC (12VDC) Input
Power Consumption Device: 12 W
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C
Operating Humidity 20 to 80%
General
Dimensions (W x H x D) 8.7 x 7.5 x 6.8" / 220 x 190 x 173 mm
Weight 2.98 lb / 1.35 kg
Packaging Info
Package Weight 9.67 lb
Box Dimensions (LxWxH) 11.8 x 11.2 x 10.8"
