Vizrt 3P22RUDD 3Play 3P2 Instant Sports Replay System - BDL-000000009
Product Overview

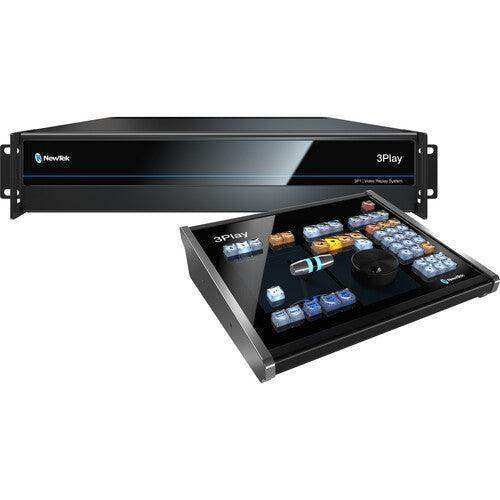

The Vizrt 3Play 3P2 (BDL-000000009) is a 10-channel UHD 4K instant sports replay system in a 2 RU chassis, purpose-built for live sports broadcast production. Supporting up to 2160p60 across all channels, it combines eight NDI inputs, four 3G-SDI inputs, and dual output paths — NDI or SDI — in a single integrated unit with an included 3P2 Control Surface. The 3P2 is engineered for broadcast teams, regional sports networks, and mobile production crews who need full 4K replay capability with end-to-end IP workflow support via NDI.
Product Description
The 3Play 3P2 delivers a complete 10-channel replay and telestration workstation in a 2 RU rack package. Eight NDI inputs via dual NICs allow the system to receive video from any NDI source on the production network — cameras, encoders, TriCaster outputs — without requiring SDI infrastructure at the replay position. Four 3G-SDI inputs extend compatibility into hybrid SDI/IP environments where not all sources are NDI-capable. The system captures up to 2160p60 UHD on all channels simultaneously, with a quad-link SDI output available for direct 4K UHD monitoring or down-conversion feeds. Integrated dual-channel NDI Telestrator enables on-air annotation directly from the replay workstation. The 3P2 supports synchronized, simultaneous capture and playback across all channels, and its clip publishing tools allow replay segments to be shared across the network to TriCaster systems or other NDI destinations in real time. Playlist sync between 3P2 and TriCaster systems enables tightly coordinated production workflows. The included 3P2 Control Surface provides tactile hardware control over all replay functions, reducing reliance on mouse and keyboard during live broadcasts.
Key Features
- 10-Channel UHD 4K60 Replay — Simultaneous capture and playback across 10 channels at up to 2160p60 for full 4K sports production.
- 8x NDI Inputs via Dual NICs — Accepts video from any NDI source on the production network for end-to-end IP replay workflows.
- 4x 3G-SDI Inputs — Hybrid SDI/IP input support for productions where not all sources are NDI-based.
- NDI and SDI Output Paths — Dual configurable outputs to NDI destinations or SDI monitors; quad-link SDI output for UHD 4K.
- Dual-Channel NDI Telestrator — Two independent telestration channels for on-air annotation and replay analysis.
- Simultaneous Record and Playback — Continuous capture on all channels while replays are being played, with no recording interruption.
- Clip Publishing and Playlist Sync — Share clips to TriCaster and other NDI systems in real time; sync playlists across networked replay systems.
- Playback Zoom and Tracking — In-playback zoom and subject tracking for enhanced replay presentation.

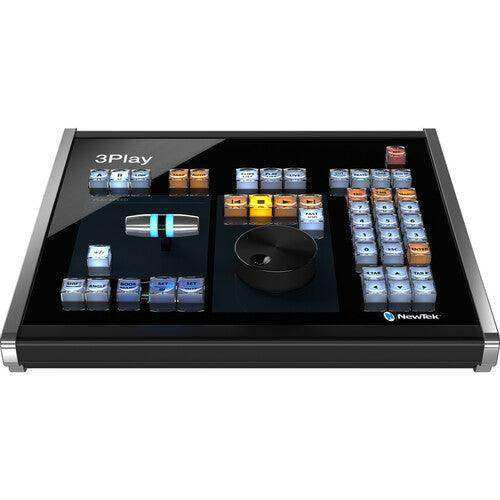

- Included 3P2 Control Surface — Hardware control panel for fast, reliable operation during live sports broadcasts.

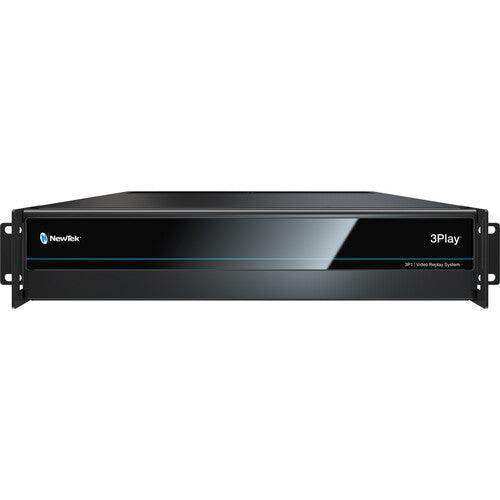

- 2 RU Rack-Mount Chassis — Standard 2 RU form factor for mobile truck and permanent broadcast facility rack integration.
Typical Applications
- Live sports broadcast production (regional and national)
- Stadium and arena production control rooms
- Mobile sports production trucks
- Multi-camera live event productions requiring instant replay
- University athletics broadcast facilities
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | BDL-000000009 |
| Channels | 10 channels |
| Max Resolution | 2160p60 (UHD 4K) |
| NDI Inputs | 8x (via dual NICs) |
| SDI Inputs | 4x 3G-SDI |
| Outputs | 2x NDI or SDI; 1x quad-link SDI (UHD 4K) |
| Telestrator | Dual-channel NDI Telestrator |
| Chassis | 2 RU rack-mount |
| Included | 3P2 Control Surface |
| Network | Dual NIC for NDI |
Competitor Comparison
| Feature | Vizrt 3Play 3P2 (BDL-000000009) | EVS XT-VIA | Grass Valley Ignite Replay |
|---|---|---|---|
| UHD 4K60 Channels | 10 channels | Yes (higher cost) | Configuration-dependent |
| NDI Native Input | Yes, 8x NDI | No | No |
| Chassis | 2 RU | 4 RU+ | Server-based |
| Telestrator Included | Yes, dual-channel | Optional add-on | Optional add-on |
| Control Surface Included | Yes | Separate purchase | Separate purchase |
| TriCaster Integration | Native playlist sync | No | No |
Frequently Asked Questions
- Does the 3Play 3P2 support true UHD 4K60 on all 10 channels simultaneously?
- Yes. The 3P2 supports up to 2160p60 across all channels, with quad-link SDI output available for direct UHD 4K monitoring.
- Can the 3P2 accept both NDI and SDI sources at the same time?
- Yes. The 3P2 supports a hybrid workflow with up to eight NDI inputs and four 3G-SDI inputs simultaneously, allowing mixed source environments.
- Is the control surface included with the BDL-000000009 bundle?
- Yes. The BDL-000000009 bundle includes the 3P2 system unit and the 3P2 Control Surface.
- How does the 3P2 integrate with TriCaster systems?
- The 3P2 and TriCaster can share playlist content over the network via NDI, enabling replay segments to be pushed directly to TriCaster for on-air playback without manual file transfers.
- What rack space is required for the 3P2?
- The 3P2 occupies 2 RU in a standard 19" rack, making it suitable for mobile truck installations and permanent broadcast facility rack rooms.
