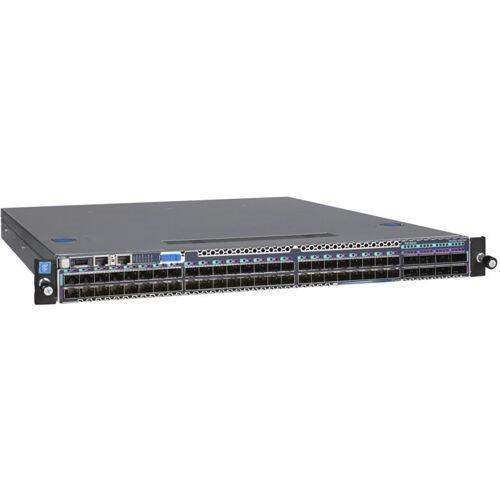

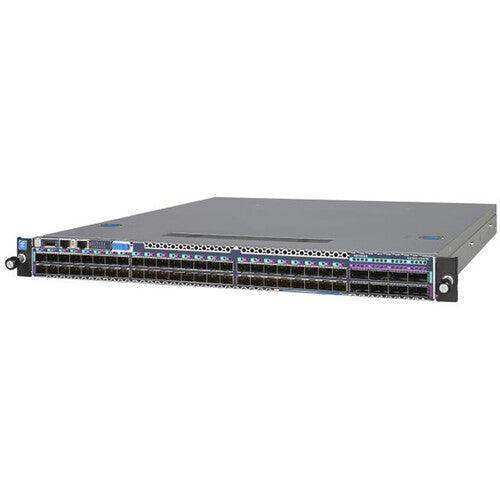

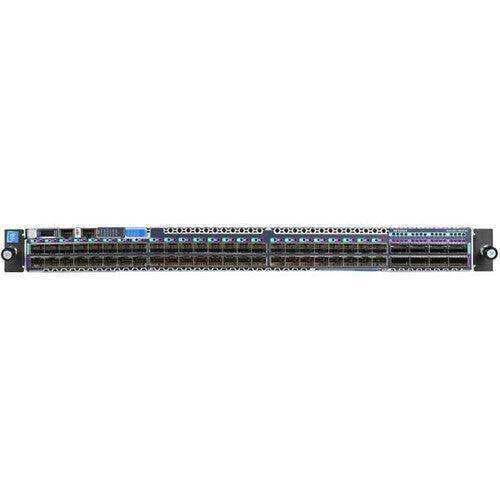

Netgear XSM4556-100NAS M4500-48XF8C Managed Switch with 48x10G/25G SFP28 and 8x100G QSFP28 Ports

Save 36%
Netgear SKU: XSM4556-100NAS
No reviews
Price:
$15,850.00 $24,756.14

Description

The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market. They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box.

Highlights

A 10G to 100G solution
  • The M4500-32C offers 32-port QSFP28 preconfigured for 100G and can support 40G QSFP+ and 50G QSFP28 optics or DAC cables
  • The M4500-48XF8C offers 48-port SFP28 preconfigured for 10G with 8-port 100G QSFP28 uplinks, and the SFP28 ports can support 10G and 25G
For Pro AV installations
  • Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box
  • True AV and multicast Zero Touch network configuration: Connect AV-over-IP encoders and decoders, and power on the switch. It just works!
Intelligent IGMP Plus
  • IGMP Plus multicast allows for scalable Pro AV installations at Layer 2 without the PIM (Protocol Independent Multicast) complexity
  • IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across M4500 and M4300 switches on that VLAN
Higher availability
  • Meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in sensible applications

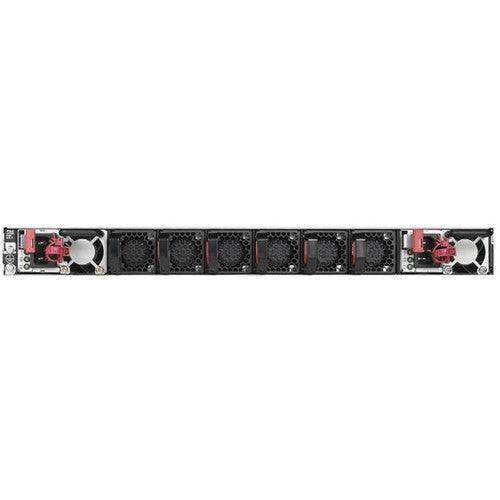

  • The M4500 switches offer 1+1 power and 4+2 fan redundancy, an x86 Intel Atom® Processor C3558 with 8GB DDR3/ECC RAM and 128GB SSD storage
Industry standard management
  • The M4500 switches come with an industry standard command line interface (CLI), SSH, SNMP, sFlow, and MLAG
  • An out of band 1 Gigabit Ethernet port facilitates management, with simplified macro-commands for AV-over-IP configuration
Industry leading warranty
  • NETGEAR M4500 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
  • 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
  • Total Number of Network Ports: 48
  • Modular: Yes
  • Port/Expansion Slot Details: 48 x 25 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details: 8 x 100 Gigabit Ethernet Uplink
  • Media Type Supported: Optical Fiber
  • Ethernet Technology: 25 Gigabit Ethernet
  • Ethernet Technology: 100 Gigabit Ethernet
  • Network Technology: 25GBase-X
  • Network Technology: 1000Base-X
  • Number of Total Expansion Slots: 56
  • Expansion Slot Type: SFP28
  • Expansion Slot Type: QSFP28
  • Layer Supported: 3
  • Manageable: Yes
  • Power Source: Power Supply
  • Redundant Power Supply Supported: Yes
  • Compatible Rack Unit: 1U
  • Form Factor: Rack-mountable
General Information
Manufacturer Netgear, Inc
Manufacturer Part Number XSM4556-100NAS
Manufacturer Website Address http://www.netgear.com
Brand Name Netgear
Product Series M4500
Product Model XSM4556
Product Name XSM4556 Ethernet Switch
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 48
Modular Yes
Port/Expansion Slot Details 48 x 25 Gigabit Ethernet Expansion Slot
8 x 100 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported Optical Fiber
Ethernet Technology 25 Gigabit Ethernet
100 Gigabit Ethernet
Network Technology 25GBase-X
1000Base-X
I/O Expansions
Number of Total Expansion Slots 56
Expansion Slot Type SFP28
QSFP28
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Power Description
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Rail-mountable
Miscellaneous
Package Contents XSM4556 Ethernet Switch 2 x Power Supplies and Six Fan Trays Already Installed Power Cord(s) Console Cable with One DB9 Female Connector and One RJ-45 Serial Connector 2 x Mounting Ears and Screws For Rack Mounting (Front) 1 x Set of Rail Kits For Rack Mounting (Back)
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
REACH
ErP
Warranty
Limited Warranty Lifetime
Item Details
Model Number XSM4556-100NAS
Brand NETGEAR
Category Networking/Switches
Mfr ID NETGER
UPS Shippable Y
Shipping Weight 44.8
