NETGEAR XSM4348S-100NES M4300-24X24F MANAGED SWITCH

Product Overview

The NETGEAR M4300-24X24F managed switch (XSM4348S-100NES) is a full-width, stackable Layer 3 switch that combines 24 10GBASE-T copper ports and 24 10G SFP+ fiber ports for 48 ports of line-rate 10G in a single 1U chassis. Engineered for 10G server aggregation, SMB core, and high-bandwidth AV-over-IP, it pairs dual redundant power supplies with non-stop forwarding for sustained uptime. As a stackable Layer 3 switch, it integrates into spine-and-leaf topologies with mixed 10G/1G stacking across the M4300 series. The complete L2/L3 feature set is included with no add-on licensing.

Product Description

The M4300-24X24F delivers dense 10G connectivity where copper and fiber both need to terminate at full speed. Twenty-four 10GBASE-T RJ45 ports handle in-rack copper runs and 10G servers, while twenty-four 10G SFP+ cages accept fiber transceivers and direct-attach cables for aggregation and uplinks. Dual redundant modular power supplies and non-stop forwarding with hitless failover keep traffic moving through a control-plane event, making the switch suitable for environments that cannot tolerate downtime. The platform runs a full Layer 2, Layer 3, and Layer 4 services stack, including static routing, RIP, OSPF, VRRP, PIM, and policy-based routing, with no separate license required. For AV deployments, the switch is SDVoE-ready and supports NETGEAR IGMP Plus, a Layer 2 multicast approach that distributes uncompressed AV-over-IP streams without the complexity of PIM-based Layer 3 multicast routing. Management spans CLI, web GUI, SNMP, sFlow, and RSPAN, and the unit can be administered alongside the rest of the fleet through NETGEAR's management tools.

Key Features

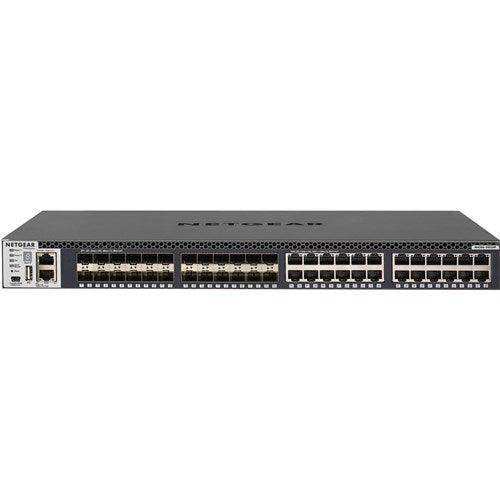

• 48 ports of 10G — 24x 10GBASE-T copper and 24x 10G SFP+ fiber terminate copper and optics at line rate in one chassis.

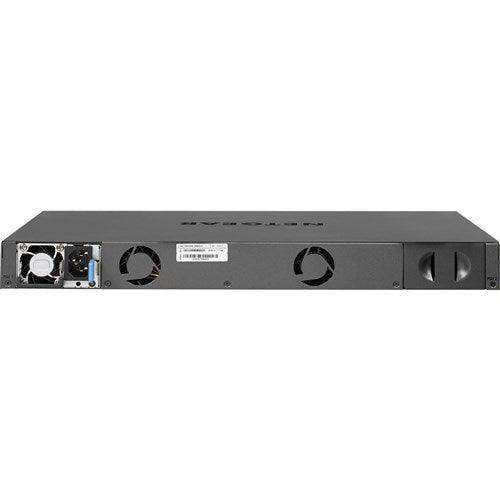

• Dual redundant power supplies — modular PSUs maintain operation if a single supply fails, supporting business continuity.
• Non-stop forwarding — NSF with hitless failover preserves traffic flow during control-plane transitions.
• Full Layer 3 routing, no license — static, RIP, OSPF, VRRP, PIM, and policy-based routing are included out of the box.
• SDVoE-ready AV-over-IP — supports uncompressed video distribution for SDVoE-based AV networks.
• NETGEAR IGMP Plus — Layer 2 multicast for AV-over-IP without configuring PIM Layer 3 multicast routing.
• Mixed 10G/1G stacking — line-rate stacking across the M4300 series for spine-and-leaf and collapsed-core designs.
• Flexible management — CLI, web GUI, SNMP, sFlow, and RSPAN for monitoring and troubleshooting.

Typical Applications

• Broadcast studio — SDVoE AV-over-IP backbones for uncompressed video distribution.
• Auditorium — high-bandwidth multicast distribution to large-format displays and processors.
• Commercial meeting space — aggregation core linking AV endpoints, servers, and storage.
• Government space — redundant, high-availability Layer 3 core for converged networks.

Technical Specifications

Frequently Asked Questions

Does the M4300-24X24F require a license for Layer 3 routing?
No. The full Layer 2, Layer 3, and Layer 4 feature set, including OSPF, VRRP, PIM, and policy-based routing, is included out of the box with no additional license.

Is this switch suitable for AV-over-IP?
Yes. It is SDVoE-ready and supports NETGEAR IGMP Plus, which handles AV multicast at Layer 2 without configuring PIM Layer 3 multicast routing.

What transceivers do the SFP+ ports use?
The 24 SFP+ cages accept standard 10G SFP+ optics and direct-attach copper cables. Contact our team for compatible modules and cabling for your run lengths.

Can it stack with other M4300 switches?
Yes. The M4300 series supports mixed 10G/1G line-rate stacking, allowing this switch to join a stack with other M4300 models.

What warranty is included?
The switch is backed by NETGEAR's ProSAFE limited lifetime hardware warranty.

Competitor Comparison

Why Buy from Creation Networks

As an authorized NETGEAR reseller with in-house AV and networking expertise, we help you design AV-over-IP and Layer 3 networks, size power and stacking, and select the right SFP+ optics and cabling. Explore our NETGEAR managed switch collection or contact our team for volume and project quotes. Pricing is subject to change.
