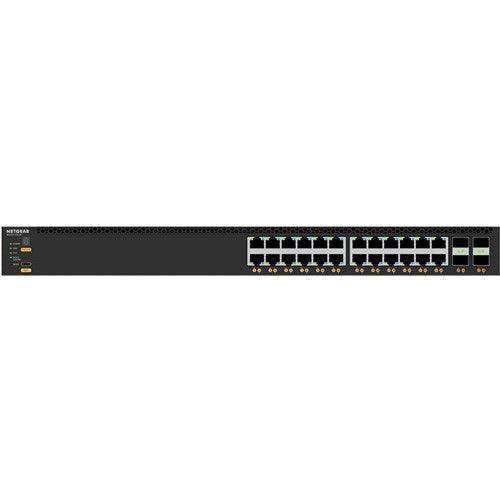

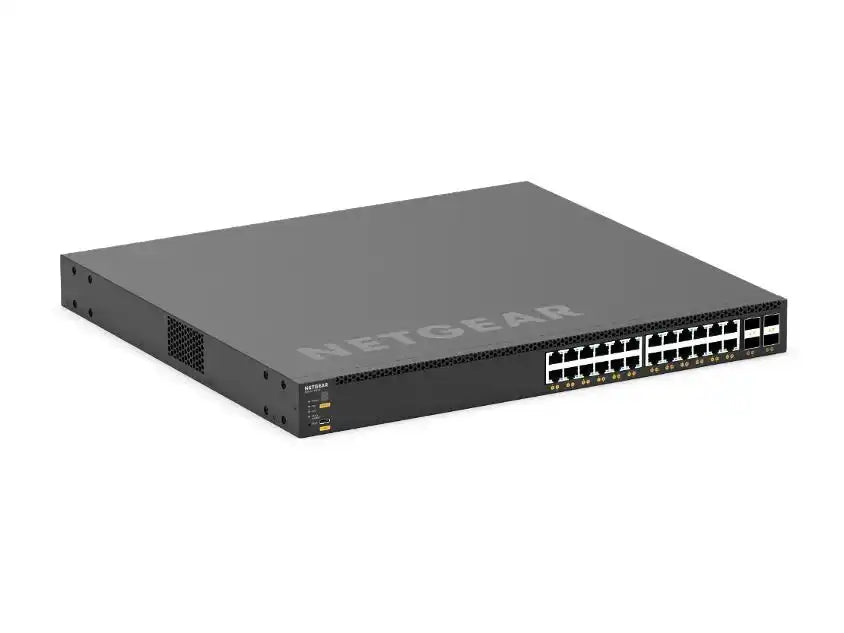

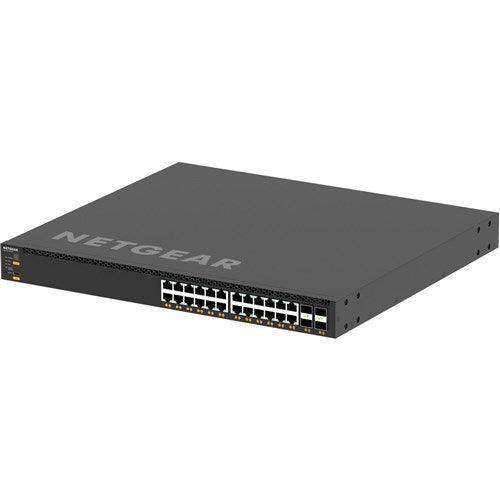

Netgear M4350-24X4V 24-Port 10G/Multi-Gig PoE+ Fully Managed AV Switch - XSM4328CV-100NES

Product Overview

The NETGEAR M4350-24X4V (XSM4328CV-100NES) is a fully managed Multi-Gig AV switch built for professional AV-over-IP environments. It combines 24 Multi-Gigabit PoE+ access ports (100M/1G/2.5G/5G/10G) with four 25G SFP28 uplinks, giving AV integrators headroom for bandwidth-intensive 4K/8K video distribution alongside networked audio. The switch ships with the NETGEAR AV User Interface and Engage Controller for one-click protocol configuration, while a full Layer 3 feature set keeps it equally capable as an IT distribution switch.

Product Description

The M4350-24X4V is engineered for AV-over-IP at scale. Its 24 access ports auto-negotiate from 100M to 10G and deliver IEEE 802.3at PoE+ per port, drawing from a 576W base PoE budget that expands to 720W with an optional second modular PSU. Four 25G SFP28 uplinks aggregate traffic to core or spine switches so that high-resolution video streams do not bottleneck at the uplink. The NETGEAR AV User Interface and Engage Controller provide pre-built profiles certified across a broad AV ecosystem, covering Dante, NDI, Q-SYS, AES67, AVB, Crestron NVX, and AMX SVSI without additional licensing for AVB or multicast features. NETGEAR IGMP Plus optimizes multicast for AV traffic at Layer 2 with no PIM required. For IT teams, the platform adds full Layer 3 routing, Virtual Chassis stacking with NSF Non-Stop Forwarding and hitless failover, and an 880W internal PSU with a modular bay for 1+1 redundancy. A TAA-compliant SKU (XSM4328CV-TAANES) is available for federal procurement.

Key Features

• 24x Multi-Gig PoE+ ports — Auto-negotiate 100M/1G/2.5G/5G/10G with IEEE 802.3at PoE+ on every port.
• 4x 25G SFP28 uplinks — High-bandwidth aggregation to core or spine switches for 4K/8K AV-over-IP workflows.
• Expandable PoE budget — 576W standard, expandable to 720W with an optional second modular PSU.

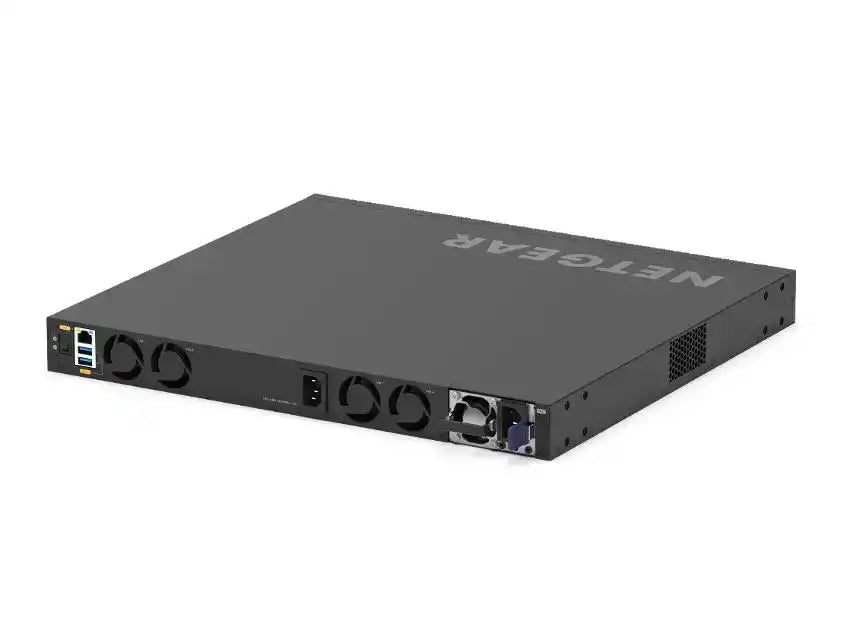

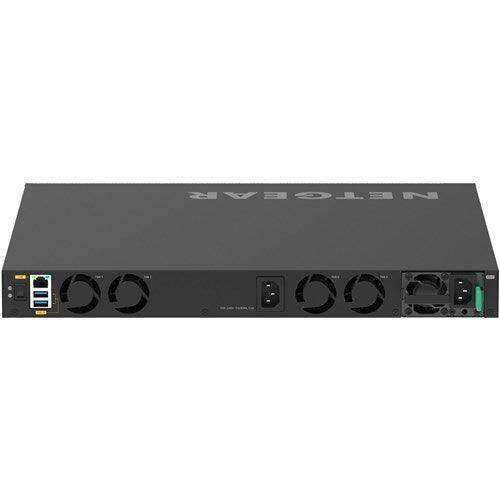

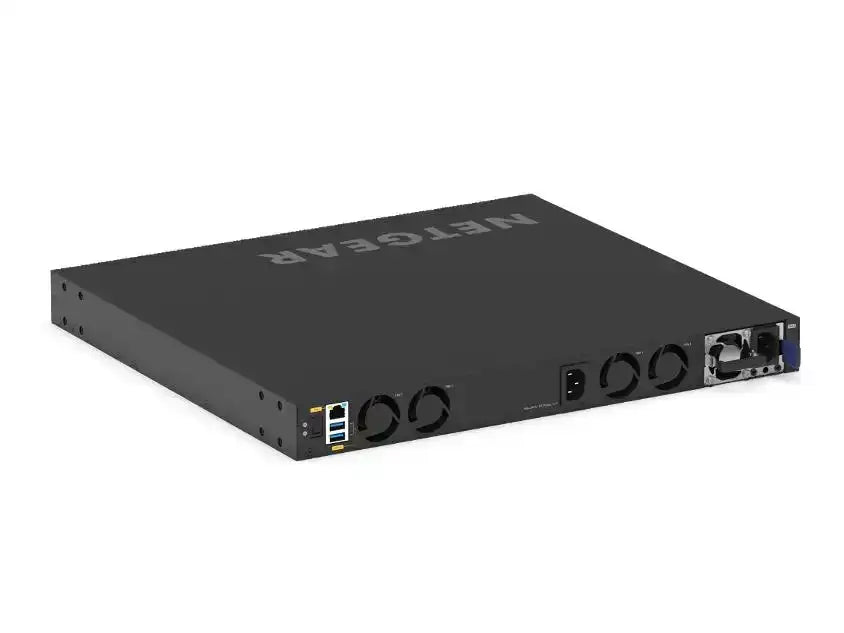

• 880W internal PSU with redundancy bay — Modular hot-swap bay enables 1+1 redundancy for mission-critical uptime.
• NETGEAR AV UI + Engage Controller — Included at no extra license cost, with one-click profiles for Dante, Q-SYS, AES67, AVB, NDI, Crestron NVX, and AMX SVSI.
• NETGEAR IGMP Plus — Layer-2 multicast optimization for AV-over-IP with no PIM required.
• Virtual Chassis stacking — NSF Non-Stop Forwarding and hitless failover for high availability.
• Full Layer 3 routing — Static, policy-based routing, OSPF, RIPv1/v2, and VRRP.
• Enterprise management and security — CLI, web GUI, SNMP v1/v2c/v3, sFlow, RSPAN, TACACS+, RADIUS, ACLs, 802.1X, DHCP snooping, and Dynamic ARP Inspection.
• TAA-compliant variant — XSM4328CV-TAANES satisfies federal procurement requirements.

Typical Applications

• Boardroom — Low-latency, high-density AV-over-IP distribution with networked audio and video endpoints.
• Conference room — Multi-room meeting environments with Dante audio and NVX or NDI video.
• House of worship — Distributed Dante/AES67 audio and NDI video streaming across the venue.
• Government space — TAA-compliant infrastructure via the XSM4328CV-TAANES SKU for federal facilities.
• Broadcast studio — NDI and high-resolution AV-over-IP workflows that benefit from 25G uplinks.
• Auditorium — Performing arts and theater installations with Dante or Q-SYS audio networks.
• All-hands room — Reconfigurable AV systems for large-format meeting and event spaces.

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What AV-over-IP protocols does the M4350-24X4V support?
It supports Dante, NDI, Q-SYS, AES67, AVB (IEEE 802.1BA), Crestron NVX, and AMX SVSI, with pre-built profiles in the NETGEAR AV UI and Engage Controller at no additional license cost.

How much PoE can the switch deliver?
The base PoE budget is 576W with IEEE 802.3at PoE+ up to 30W per port, expandable to 720W with an optional second modular PSU.

Is a TAA-compliant version available for government projects?
Yes. The XSM4328CV-TAANES SKU is TAA compliant for federal and government procurement.

What warranty applies?
The M4350 series is covered by the NETGEAR ProSAFE Limited Lifetime Hardware Warranty, with next-business-day advance replacement.

Can Creation Networks help with AV-over-IP system design?
Yes. Our AV and networking team provides pre-sales design, switch sizing, and PoE budgeting for Dante, NDI, and Q-SYS deployments. Contact us for project support.
