Netgear XS724EM-100NAS

Product Overview

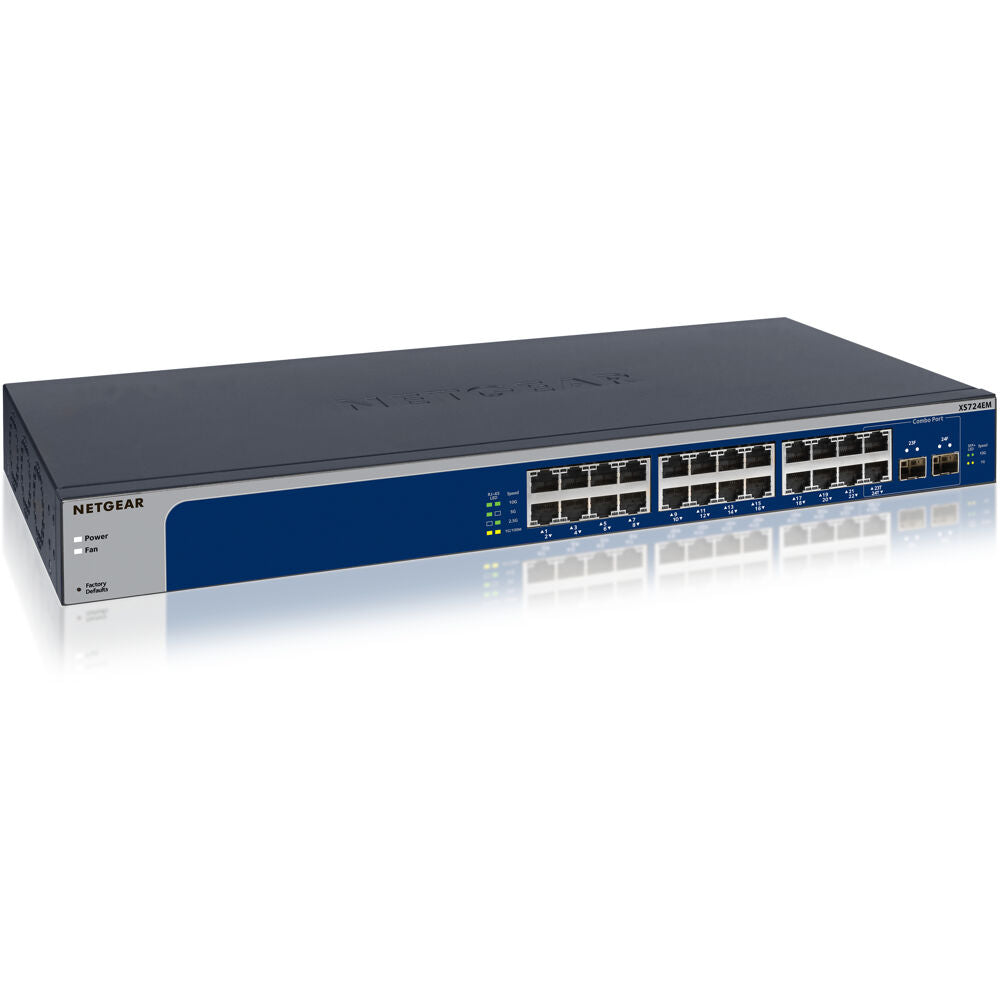

The NETGEAR XS724EM is a 24-port 10G/multi-gigabit Plus switch with two 10G SFP+ uplinks, built for high-bandwidth commercial AV and SMB networks. All 24 copper ports use 5-speed technology to auto-negotiate 100M/1G/2.5G/5G/10G, and two shared 10G SFP+ combo ports provide fiber uplinks to the core. The Plus management layer adds VLANs, QoS, link aggregation, and IGMP snooping on top of plug-and-play simplicity. With a 480Gbps fabric and a 32K MAC table, it aggregates 10G workstations, NAS, and AV-over-IP endpoints in a rack-mount chassis.

Product Description

The XS724EM gives AV integrators dense 10G connectivity with essential management at a Plus-switch price point. Each of the 24 copper ports auto-detects 100M/1G/2.5G/5G/10G, delivering each device its full speed instead of downgrading sub-10G devices to 1G as standard 10G switches do. Ports run 2.5G/5G over existing Cat5e and full 10G over Cat6A, reducing recabling costs. Two shared 10G SFP+ combo ports add fiber or copper-module uplinks to the network core.

The 480Gbps fabric forwards traffic at wire speed with a 32K MAC address table, jumbo frame support up to 9K, and up to 240 Mpps forwarding. Plus management adds port-based and 802.1Q VLANs, port-based and 802.1p/DSCP QoS, static and LACP link aggregation (up to 12 LAGs), IGMP snooping, rate limiting, loop prevention, broadcast storm control, port mirroring, and cable test, all through a web GUI or the ProSAFE Plus utility. The metal chassis mounts in a 19-inch rack or sits on a desktop, with active fans for quiet operation. It suits broadcast and editing environments aggregating 10G storage and workstations. See related 10G switches in our NETGEAR switch collection.

Key Features

• 24 5-speed 10G ports — Every copper port auto-negotiates 100M/1G/2.5G/5G/10G, delivering each device its full speed with no downgrade.
• 2 10G SFP+ uplinks — Two shared 10G SFP+ combo ports for fiber or copper-module uplinks to the core.
• 480Gbps fabric — Wire-speed store-and-forward switching with a 32K MAC table and up to 240 Mpps forwarding.
• Plus management — VLANs, QoS, IGMP snooping, and link aggregation through a web GUI or ProSAFE Plus utility.
• Link aggregation — Static and LACP LAGs (up to 12 LAGs, 8 members each) for higher uplink bandwidth and redundancy.
• Existing-cable friendly — Runs 2.5G/5G over Cat5e and full 10G over Cat6A to reduce recabling.
• Rack-mount design — 19-inch metal chassis with active fans for quiet operation.
• Limited Lifetime warranty — Backed by NETGEAR lifetime hardware coverage, 24/7 support, and NBD replacement.

Typical Applications

• Broadcast studio and editing suite networks aggregating 10G NAS and multi-gig workstations
• Boardroom and large conference room AV systems requiring dense 10G connectivity to displays and servers
• Auditorium and all-hands room installations distributing high-bandwidth video over a 10G fabric
• Commercial meeting spaces consolidating multi-gig and 10G endpoints to a Plus-managed switch
• Multi-purpose rooms needing VLAN segmentation and link aggregation without a full smart switch

Technical Specifications

Specifications sourced from the NETGEAR datasheet.

Frequently Asked Questions

Does the XS724EM provide PoE?
No. It is a non-PoE 10G/multi-gig aggregation switch. Pair it with a PoE switch such as the MS-series to power access points and cameras.

What is the difference between the XS724EM and a full smart switch?
The XS724EM is a Plus switch. It offers VLANs, QoS, IGMP snooping, and link aggregation through a web GUI and the ProSAFE Plus utility, which is simpler than full smart-switch features like ACLs, 802.1x, and cloud management.

Do the ports require Cat6A cabling?
For full 10G, Cat6A is recommended (or Cat6 under 55 m). The ports run 2.5G/5G over existing Cat5e, so most multi-gig devices connect without recabling.

How are the SFP+ ports configured?
The two 10G SFP+ ports are shared combo ports, so you use either the SFP+ slot or its paired copper port for each uplink, not both at once.

Can I aggregate links for more bandwidth?
Yes. Static and LACP link aggregation supports up to 12 LAGs with 8 members each for higher uplink throughput or redundancy.

What warranty and support are included?
The XS724EM carries a NETGEAR Limited Lifetime hardware warranty with 24/7 online technical support and Next Business Day replacement.
