Netgear WAX620PA-100NAS
Netgear WAX620PA-100NAS is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Netgear WAX620PA-100NAS
Product Overview
The NETGEAR WAX620PA is a high-performance dual-band WiFi 6 AX3600 4x4 access point shipped with an included 12V DC power adapter for sites without PoE. It delivers up to 3.6Gbps total throughput, connects through a single 2.5G/Multi-Gigabit port, and is managed via NETGEAR Insight cloud with no on-site WiFi controller. The bundled adapter and high stream count make it a practical, high-capacity choice for commercial AV and IT wireless coverage.
Product Description
The WAX620PA matches the WAX620 hardware and adds a 12V DC power adapter in the box, so the access point can be powered locally when a PoE source is unavailable. It runs 802.11ax WiFi 6 on the 2.4GHz and 5GHz bands in a 4x4 design that provides eight streams of data for up to 3.6Gbps aggregate throughput. WiFi 6 features including OFDMA, bidirectional MU-MIMO, BSS Coloring, and Target Wake Time keep airtime efficient as many laptops, phones, and wireless presentation endpoints share the same access point. The single 100/1000/2.5GBASE-T port also supports 802.3at PoE, giving you the option of powering the unit over Ethernet later.
For commercial AV integrators, the WAX620PA delivers the capacity headroom for dense BYOD and wireless presentation environments while removing the dependency on an installed PoE switch. Enterprise security including WPA3 128-bit to 192-bit encryption, eight SSIDs, and VLAN support separates guest, corporate, and AV control traffic, and NETGEAR Insight provides remote provisioning, monitoring, and firmware management from a single pane of glass. The unit forms an Instant WiFi Mesh backhaul with other WAX620, WAC540, or WC564 units where cabling is impractical. Browse the full lineup in the NETGEAR collection at Creation Networks to pair the WAX620PA with compatible Multi-Gigabit PoE switches.
Key Features

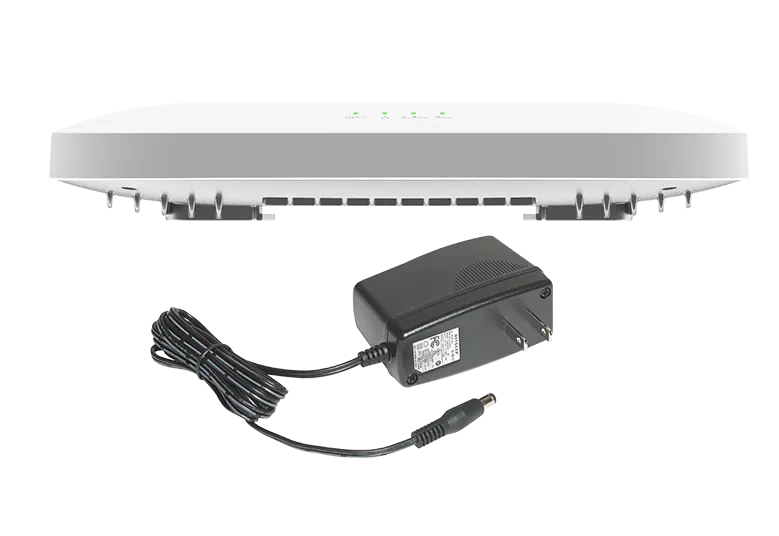

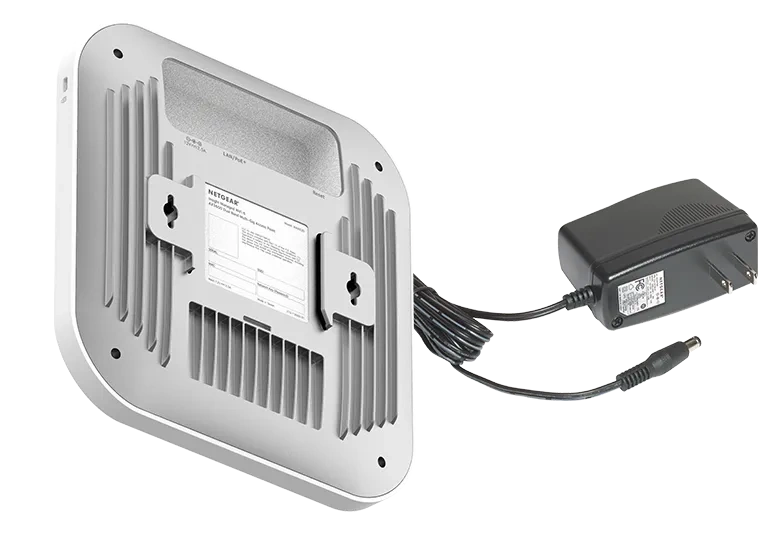

- Included power adapter — Ships with a 12V DC adapter for local power where PoE is not available, with 802.3at PoE still supported.
- WiFi 6 AX3600 4x4 dual-band — 802.11ax radios on 2.4GHz and 5GHz deliver eight streams and up to 3.6Gbps aggregate throughput for high-density coverage.
- 2.5G Multi-Gig port — A single 100/1000/2.5GBASE-T port supports a Multi-Gigabit uplink, backward compatible with 100/1000Mbps Ethernet.
- High-density efficiency — OFDMA, bidirectional MU-MIMO, BSS Coloring, and Target Wake Time serve many simultaneous clients with less congestion.
- Insight cloud management — Remote provisioning, monitoring, and firmware management with no on-site WiFi controller.
- Enterprise security — WPA3 128-bit to 192-bit encryption, WPA2/WPA3 Enterprise, 802.1x RADIUS, eight SSIDs, and VLAN support segment guest, corporate, and AV traffic.
- Ceiling or wall mount — Includes a wall/ceiling mount kit for clean installation in conference rooms and meeting spaces.
Technical Specifications
| WiFi Standard | 802.11ax WiFi 6 (dual-band, backward compatible to 802.11a/b/g/n/ac) |
| Bands | 2.4GHz, 5GHz |
| Aggregate Throughput | AX3600, up to 3.6Gbps theoretical |
| Throughput per Band | 5GHz: 2400Mbps; 2.4GHz: 1200Mbps |
| Wireless Mode | 4x4 in 5GHz, 4x4 in 2.4GHz (8 streams) |
| MU-MIMO / OFDMA | Bidirectional MU-MIMO, OFDMA, BSS Coloring, TWT |
| Antenna Gain | Internal 3.1 / 4.3 dBi (2.4GHz / 5GHz) |
| Ethernet Port | One 100/1000/2.5GBASE-T port (802.3af / 802.3at PoE) |
| Power Adapter | 12V DC, 2.5A included |
| PoE Power Consumption | 25.5W |
| Security | WPA / WPA2 / WPA3 (128-bit to 192-bit), WPA2/WPA3 Enterprise, 802.1x RADIUS, 8 SSIDs, VLAN |
| Management | NETGEAR Insight cloud |
| Mounting | Wall/ceiling mount kit included |
| Dimensions (W x D x H) | 205.7 x 205.7 x 34.3 mm (8.09 x 8.09 x 1.35 in) |
| Weight | 783 g (1.72 lb) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Warranty | NETGEAR Enterprise Limited Lifetime warranty |
Specifications sourced from the NETGEAR datasheet.
