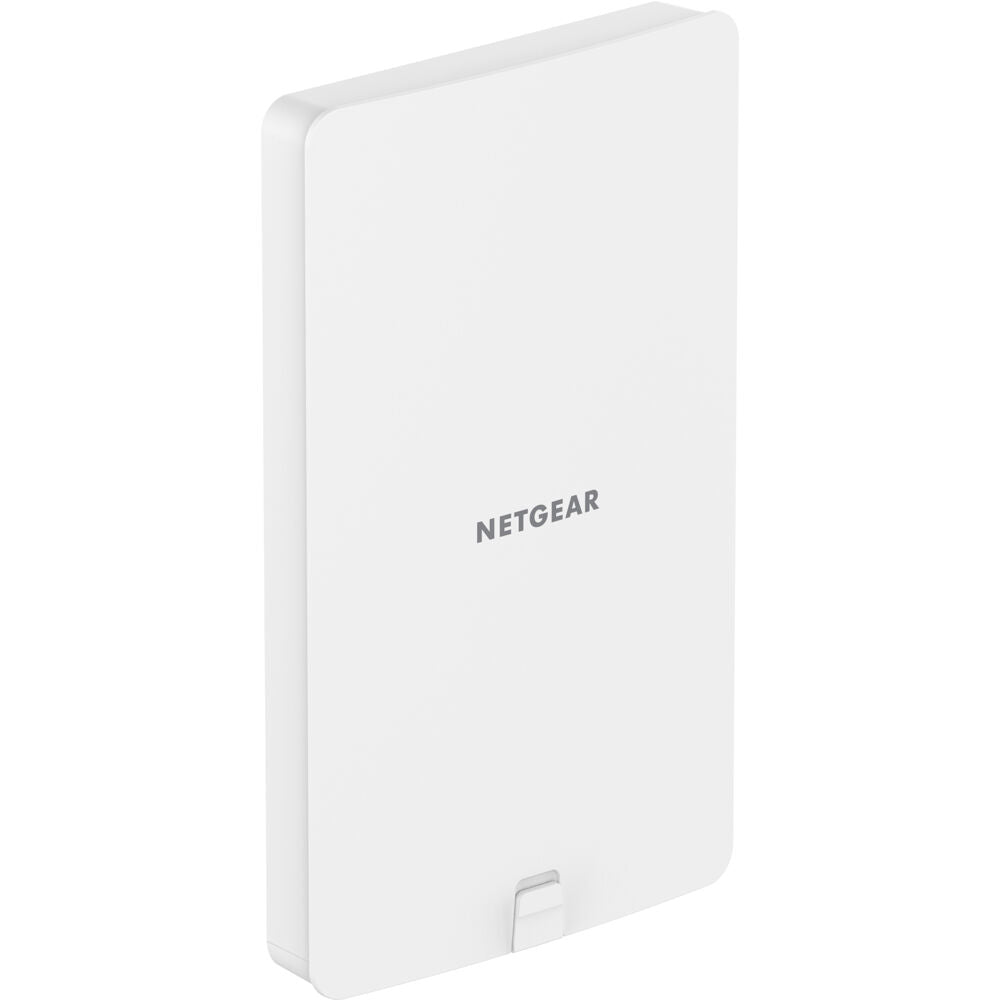

Netgear WAX610Y-100NAS
Product Overview
The NETGEAR WAX610Y is the outdoor, IP55-rated version of the WAX610 dual-band WiFi 6 AX1800 access point. It delivers up to 1.8Gbps total throughput over a single 2.5G/Multi-Gigabit PoE+ port and is managed through NETGEAR Insight cloud with no on-site WiFi controller. Built to withstand rain, dust, and sun, it extends commercial AV and IT wireless coverage to courtyards, patios, and other outdoor areas around the building.
Product Description
The WAX610Y carries an IP55 rating with a P2i nano-coating to resist rain, dust, sun, frost, and snow, operating across a -10° to 50°C range for year-round outdoor deployment. It runs 802.11ax WiFi 6 on the 2.4GHz and 5GHz bands in a 2x2 design providing four streams of data for up to 1.8Gbps aggregate throughput. WiFi 6 features including OFDMA, bidirectional MU-MIMO, BSS Coloring, and Target Wake Time keep airtime efficient as many client devices connect outdoors. A single 100/1000/2.5GBASE-T port supports 802.3at PoE, carrying power and a Multi-Gigabit uplink over one outdoor-rated cable run, and the unit is powered by PoE only.
For commercial AV integrators, the WAX610Y closes outdoor coverage gaps so staff and guests stay connected beyond the building envelope. Enterprise security including WPA3, eight SSIDs, and VLAN support separates guest, corporate, and operational traffic, while NETGEAR Insight provides remote provisioning, monitoring, and firmware management from a single pane of glass. The unit forms an Instant WiFi Mesh backhaul with other WAX610, WAX610Y, WAC540, or WC564 units where outdoor cabling is impractical. Browse the full lineup in the NETGEAR collection at Creation Networks to pair the WAX610Y with compatible Multi-Gigabit PoE switches.
Key Features
- WiFi 6 AX1800 dual-band — 802.11ax radios on 2.4GHz and 5GHz deliver up to 1.8Gbps aggregate throughput for outdoor coverage.
- IP55 weatherproof design — P2i nano-coating and IP55 rating resist rain, dust, sun, frost, and snow from -10° to 50°C.
- 2.5G PoE+ uplink — A single 802.3at Multi-Gigabit port delivers power and data over one cable; the unit is powered by PoE only.
- High-density efficiency — OFDMA, bidirectional MU-MIMO, BSS Coloring, and Target Wake Time serve many simultaneous clients with less congestion.
- Insight cloud management — Remote provisioning, monitoring, and firmware management with no on-site WiFi controller.
- Enterprise security — WPA3, WPA2/WPA3 Enterprise, 802.1x RADIUS, eight SSIDs, and VLAN support segment guest, corporate, and operational traffic.
- Instant WiFi Mesh — Forms a wireless backhaul with other WAX610, WAX610Y, WAC540, or WC564 units where outdoor cabling is impractical.

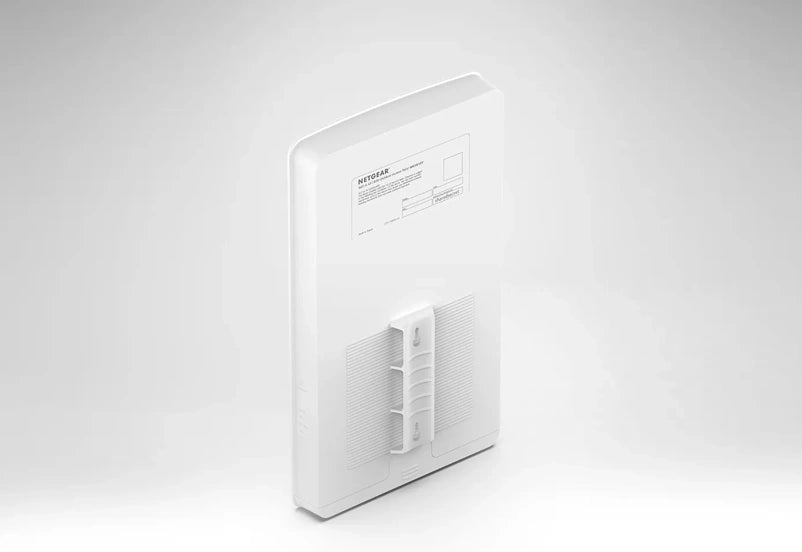

- Pole or wall mount — Includes both pole mount and wall/ceiling mount kits for flexible outdoor installation.
Technical Specifications
| WiFi Standard | 802.11ax WiFi 6 (dual-band, backward compatible to 802.11a/b/g/n/ac) |
| Bands | 2.4GHz, 5GHz |
| Aggregate Throughput | AX1800, up to 1.8Gbps theoretical |
| Throughput per Band | 5GHz: 1200Mbps; 2.4GHz: 600Mbps |
| Wireless Mode | 2x2 in 5GHz, 2x2 in 2.4GHz (4 streams) |
| MU-MIMO / OFDMA | Bidirectional MU-MIMO, OFDMA, BSS Coloring, TWT |
| Antenna Gain | Internal 3.6 / 4.4 dBi (2.4GHz / 5GHz) |
| Ethernet Port | One 100/1000/2.5GBASE-T port (802.3af / 802.3at PoE) |
| Power | Powered by PoE only |
| PoE Power Consumption | 16.1W |
| Weather Rating | IP55, P2i nano-coating |
| Security | WPA / WPA2 / WPA3, WPA2/WPA3 Enterprise, 802.1x RADIUS, 8 SSIDs, VLAN |
| Management | NETGEAR Insight cloud |
| Mounting | Pole mount kit and wall/ceiling mount kit included |
| Dimensions (W x D x H) | 181 x 305 x 34 mm (7.12 x 12.0 x 1.33 in) |
| Weight | 940 g (2.07 lb) |
| Operating Temperature | -10° to 50°C (10° to 122°F), no solar radiation |
| Warranty | NETGEAR Enterprise Limited Lifetime warranty |
Specifications sourced from the NETGEAR datasheet.
