Netgear WAX610PA-100NAS
Product Overview
The NETGEAR WAX610PA is a dual-band WiFi 6 AX1800 access point shipped with an included 12V DC power adapter for sites without PoE. It delivers up to 1.8Gbps total throughput, connects through a single 2.5G/Multi-Gigabit port, and is managed via NETGEAR Insight cloud with no on-site WiFi controller. The bundled adapter makes it a practical choice for commercial AV and IT wireless coverage where a PoE switch is not yet in place.
Product Description
The WAX610PA matches the WAX610 hardware and adds a 12V DC power adapter in the box, so the access point can be powered locally when a PoE source is unavailable. It runs 802.11ax WiFi 6 on the 2.4GHz and 5GHz bands in a 2x2 design providing four streams of data for up to 1.8Gbps aggregate throughput. WiFi 6 features including OFDMA, bidirectional MU-MIMO, BSS Coloring, and Target Wake Time keep airtime efficient when many laptops, phones, and wireless presentation endpoints connect to the same access point. The single 100/1000/2.5GBASE-T port also supports 802.3at PoE, giving you the option of powering the unit over Ethernet later.
For commercial AV integrators, the WAX610PA delivers a dependable BYOD and wireless presentation experience in conference rooms and open workspaces while removing the dependency on an installed PoE switch. Enterprise security including WPA3, eight SSIDs, and VLAN support separates guest, corporate, and AV control traffic, and NETGEAR Insight provides remote provisioning, monitoring, and firmware management from a single pane of glass. The unit forms an Instant WiFi Mesh backhaul with other WAX610, WAX610Y, WAC540, or WC564 units where cabling is impractical. Browse the full lineup in the NETGEAR collection at Creation Networks to pair the WAX610PA with compatible Multi-Gigabit PoE switches.
Key Features

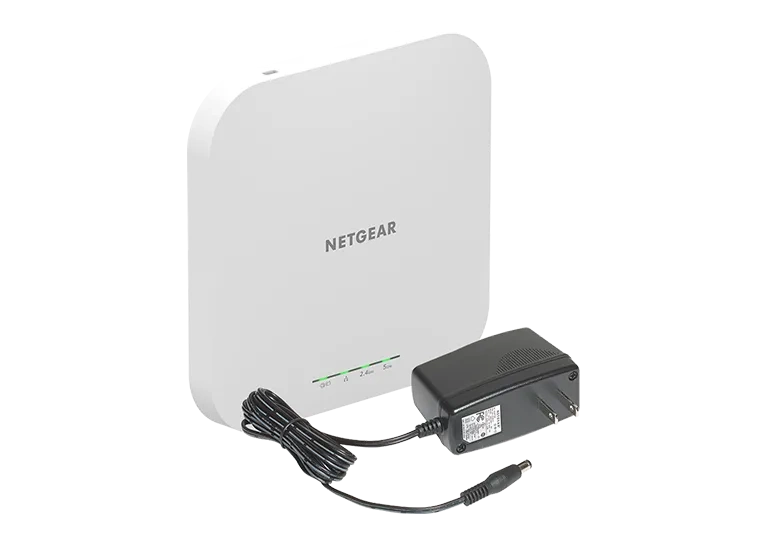

- Included power adapter — Ships with a 12V DC adapter for local power where PoE is not available, with 802.3at PoE still supported.
- WiFi 6 AX1800 dual-band — 802.11ax radios on 2.4GHz and 5GHz deliver up to 1.8Gbps aggregate throughput for commercial coverage.
- 2.5G Multi-Gig port — A single 100/1000/2.5GBASE-T port supports a Multi-Gigabit uplink, backward compatible with 100/1000Mbps Ethernet.
- High-density efficiency — OFDMA, bidirectional MU-MIMO, BSS Coloring, and Target Wake Time serve many simultaneous clients with less congestion.
- Insight cloud management — Remote provisioning, monitoring, and firmware management with no on-site WiFi controller.
- Enterprise security — WPA3, WPA2/WPA3 Enterprise, 802.1x RADIUS, eight SSIDs, and VLAN support segment guest, corporate, and AV traffic.

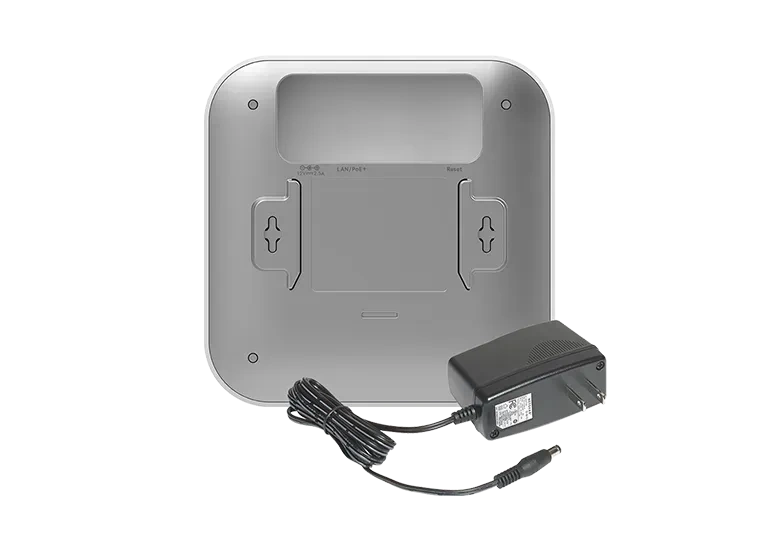

- Ceiling or wall mount — Includes a wall/ceiling mount kit for clean installation in conference rooms and open workspaces.
Technical Specifications
| WiFi Standard | 802.11ax WiFi 6 (dual-band, backward compatible to 802.11a/b/g/n/ac) |
| Bands | 2.4GHz, 5GHz |
| Aggregate Throughput | AX1800, up to 1.8Gbps theoretical |
| Throughput per Band | 5GHz: 1200Mbps; 2.4GHz: 600Mbps |
| Wireless Mode | 2x2 in 5GHz, 2x2 in 2.4GHz (4 streams) |
| MU-MIMO / OFDMA | Bidirectional MU-MIMO, OFDMA, BSS Coloring, TWT |
| Antenna Gain | Internal 3.8 / 4.5 dBi (2.4GHz / 5GHz) |
| Ethernet Port | One 100/1000/2.5GBASE-T port (802.3af / 802.3at PoE) |
| Power Adapter | 12V DC, 2.5A included |
| PoE Power Consumption | 15.3W |
| Security | WPA / WPA2 / WPA3, WPA2/WPA3 Enterprise, 802.1x RADIUS, 8 SSIDs, VLAN |
| Management | NETGEAR Insight cloud |
| Mounting | Wall/ceiling mount kit included |
| Dimensions (W x D x H) | 160.9 x 160.9 x 33.25 mm (6.33 x 6.33 x 1.30 in) |
| Weight | 412 g (0.90 lb) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Warranty | NETGEAR Enterprise Limited Lifetime warranty |
Specifications sourced from the NETGEAR datasheet.
