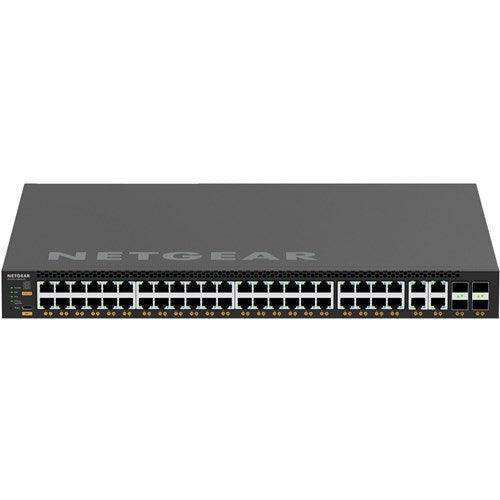

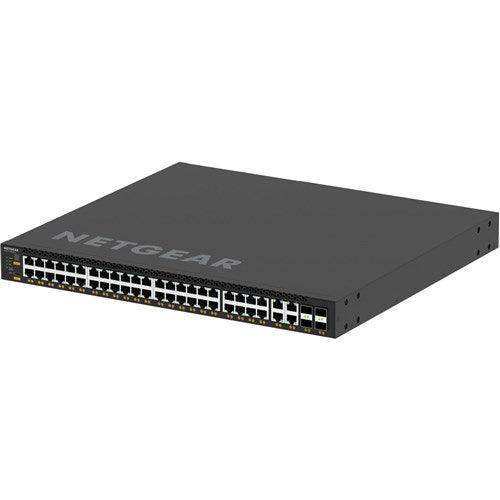

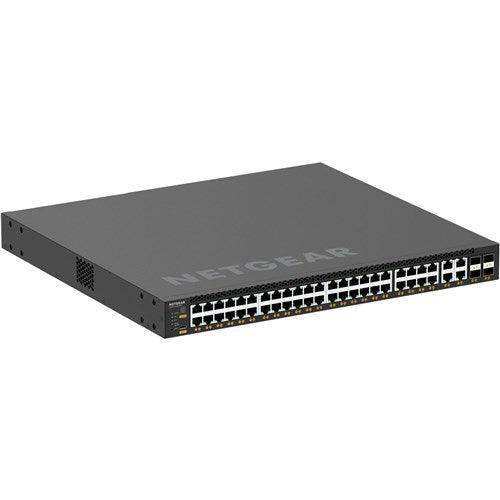

Netgear M4350-44M4X4V 44-Port 2.5G PoE++ Fully Managed AV Switch with 25G Uplinks - MSM4352-100NES

Product Overview

The NETGEAR M4350-44M4X4V (MSM4352-100NES) is a high-density, high-power fully managed AV switch built for AV-over-IP deployments that need Multi-Gig PoE++ at scale. This 44-port 2.5G PoE++ switch pairs 44 2.5GBASE-T PoE++ access ports with four 10G/Multi-Gig PoE++ ports and four 25G SFP28 uplinks, delivering high per-port power for PTZ cameras, wireless access points, and other IEEE 802.3bt endpoints. As a Layer 3 AV switch with 25G SFP28 uplinks, the MSM4352-100NES connects dense PoE++ access to a high-bandwidth core or spine.

Product Description

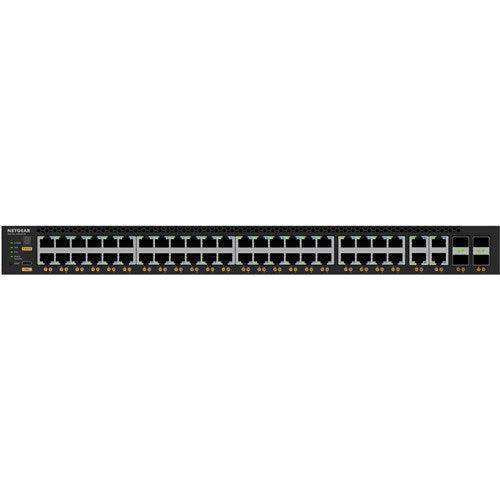

The M4350-44M4X4V provides 52 total ports: 44 2.5G PoE++ RJ45 ports, four 10G/Multi-Gig PoE++ ports, and four 25GBASE-X SFP28 uplinks for aggregation to core or spine switches. All 48 copper ports support IEEE 802.3bt PoE++ at up to 90W per port. A 550W internal power supply provides a 194W base PoE budget, and two modular power supply slots accept APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 units for 1+1 redundancy or EPS share. With modular supplies installed, the total PoE budget can reach 3,314W, and the redundant PoE budget can reach 1,794W for high-draw installations. The switch ships with the NETGEAR AV User Interface and Engage Controller for one-click AV-over-IP profiles, and uses NETGEAR IGMP Plus for Layer 2 multicast management without PIM. Virtual Chassis stacking adds non-stop forwarding (NSF) and hitless failover, while the Layer 3 feature set covers static, policy-based, and dynamic routing with advanced QoS and security.

Key Features

• 44x 2.5G PoE++ ports — 2.5GBASE-T RJ45 access ports with IEEE 802.3bt power up to 90W per port for dense AV endpoints.
• 4x 10G/Multi-Gig PoE++ ports — higher-bandwidth, high-power access for demanding endpoints.
• 4x 25G SFP28 uplinks — 25GBASE-X aggregation to core or spine switches.
• High PoE capacity — 194W base from the internal 550W supply, expandable to 3,314W total with modular supplies.

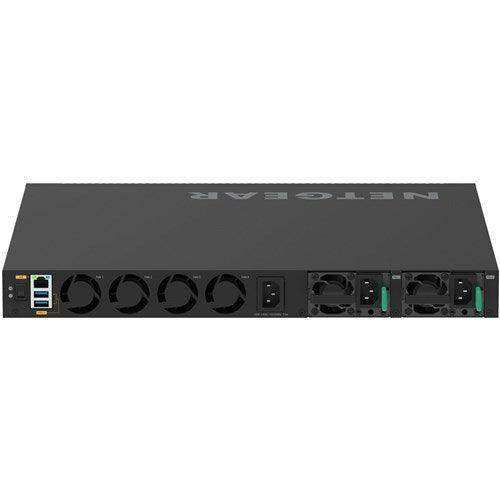

• Two modular PSU slots — accept APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 for 1+1 redundancy or EPS share; redundant PoE budget up to 1,794W.
• NETGEAR AV UI and Engage Controller — one-click AV-over-IP profiles with no additional licensing required.
• NETGEAR IGMP Plus — Layer 2 multicast management for AV-over-IP without PIM configuration.
• Virtual Chassis stacking — non-stop forwarding and hitless failover across stacked units.
• Full Layer 3 routing — static, policy-based, and dynamic routing with advanced QoS and security.
• TAA-compliant SKU available — a TAA option supports government and regulated procurement.

Typical Applications

• House of worship — high-power PTZ cameras, wireless mics, and Dante audio over 2.5G PoE++.
• Auditorium — networked lighting and distributed audio fed from dense PoE++ access.
• All-hands room — large corporate AV gatherings with many powered endpoints.
• Broadcast studio — PoE++ for cameras and intercom across a production floor.
• Government space — command and operations facilities with a TAA procurement path.
• Multi-purpose room — flexible high-density AV for events and hospitality spaces.

Technical Specifications

Frequently Asked Questions

How much PoE power does the M4350-44M4X4V provide?
The internal 550W supply provides a 194W base PoE budget across the 48 IEEE 802.3bt copper ports. Adding modular APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 supplies can raise the total PoE budget to 3,314W, with a redundant PoE budget up to 1,794W.

What uplink options does it offer?
Four 25GBASE-X SFP28 ports provide high-bandwidth uplinks to core or spine switches; the four 10G/Multi-Gig PoE++ ports can also serve high-bandwidth powered endpoints.

What AV-over-IP systems does it support?
The NETGEAR AV User Interface and Engage Controller apply one-click profiles for common AV-over-IP transports, and NETGEAR IGMP Plus manages multicast at Layer 2 without PIM. Confirm specific device compatibility with your AV manufacturer.

Is a TAA-compliant version available?
Yes. A TAA-compliant SKU is available; contact our team for the correct part number and lead time.

What is the warranty?
This switch is covered by the NETGEAR ProSAFE Limited Lifetime Hardware Warranty. Contact us for advance-replacement support options.
