Netgear MS510TXUP-100NAS

Product Overview

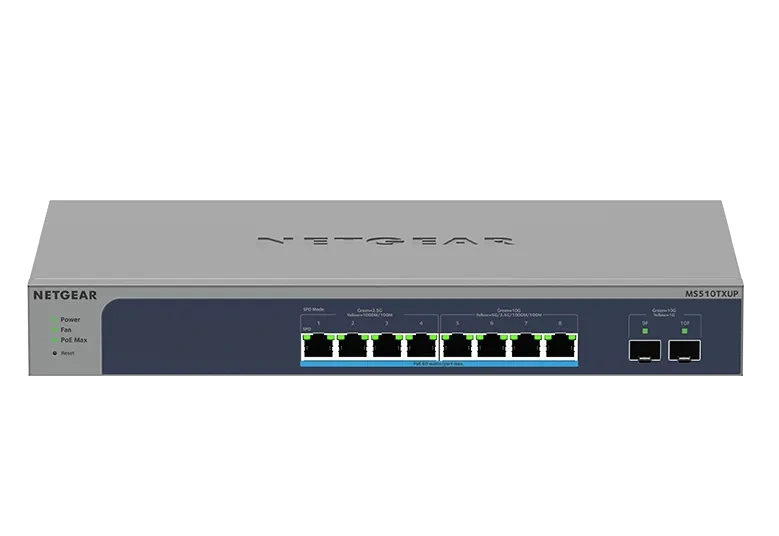

The NETGEAR MS510TXUP is an 8-port multi-gigabit/10G Ultra60 PoE++ smart switch with two dedicated 10G SFP+ uplinks for commercial AV networks. It pairs four 1G/2.5G ports with four 10G multi-gig ports, all supporting Ultra60 PoE++ (802.3bt) up to 60W from a 295W total PoE budget. Layer 2+/Lite L3 management, IPv6 support, ACLs, and optional NETGEAR Insight cloud control make it a flexible edge or aggregation switch. The 140Gbps non-blocking fabric and 10G fiber uplinks suit high-bandwidth WiFi 6 access points, NAS, and AV-over-IP gear.

Product Description

The MS510TXUP mixes copper speeds in a single 8-port unit so you can match each device to the bandwidth it needs. Four ports auto-negotiate 100M/1G/2.5G and four ports run up to 10G (100M/1G/2.5G/5G/10G), all over existing Cat5e at 2.5G/5G. Every copper port supports Ultra60 PoE++ at up to 60W per port from a 295W budget, enough to power WiFi 6 access points, PTZ cameras, and other high-draw AV endpoints. Two dedicated 10G SFP+ ports provide fiber uplinks to the core or to a 10G NAS, and the non-blocking 140Gbps fabric forwards traffic at wire speed.

Management is full smart-switch grade: advanced VLANs, L2/L3/L4 ACLs with 802.1x port authentication, IGMP snooping and querier, IPv6 QoS and ACLs, LACP link aggregation, and SNMP v1/v2c/v3 with RMON. Advanced per-port PoE controls, uninterrupted PoE, and PoE scheduling give precise control over connected devices. Optional NETGEAR Insight remote cloud management adds multi-site monitoring, configuration, and firmware updates from a mobile app or web portal. Temperature- and load-based fans keep it to 33 dBA at full power for quiet rack operation. Explore related models in our NETGEAR switch collection.

Key Features

• Mixed multi-gig/10G ports — Four 1G/2.5G ports plus four 10G ports (100M/1G/2.5G/5G/10G) match each device to its needed speed.
• Ultra60 PoE++ power — All eight ports deliver up to 60W (802.3bt) from a 295W budget for APs, cameras, and AV endpoints.
• 2x 10G SFP+ uplinks — Two dedicated 10G fiber/copper ports aggregate to the core or connect a 10G NAS.
• Smart Layer 2+/Lite L3 — Advanced VLANs, L2/L3/L4 ACLs, 802.1x, IGMP snooping/querier, and IPv6 management.
• NETGEAR Insight cloud — Optional remote monitoring, configuration, PoE scheduling, and firmware updates across sites.
• Uninterrupted PoE — Power persists through firmware upgrades and soft reboots to keep AV devices online.
• Non-blocking 140Gbps fabric — Store-and-forward switching at wire speed with a 32K MAC table.

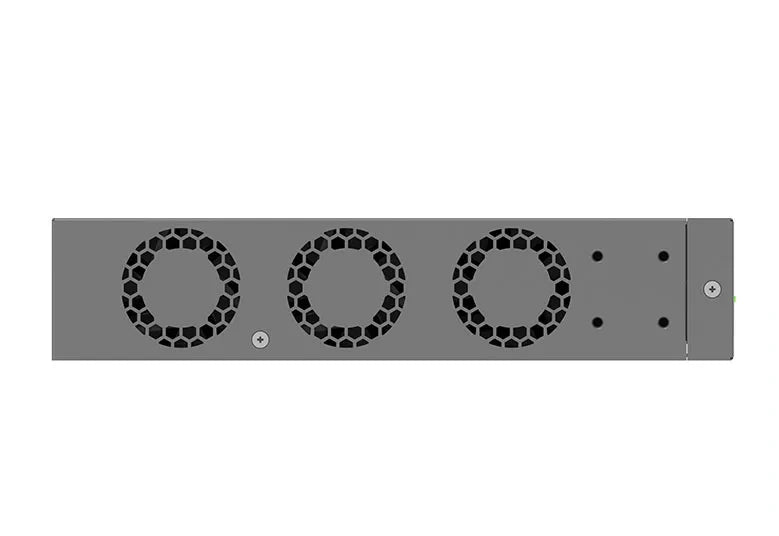

• Quiet rack-mount design — Load-based fans rated to 33 dBA at full power with desktop or rack mounting.

Typical Applications

• Conference room and boardroom AV systems needing 10G uplinks for wireless video and shared storage
• Broadcast studio AV-over-IP setups requiring mixed multi-gig and 10G connectivity
• House of worship installations powering WiFi 6 access points and PTZ cameras with 10G backhaul
• Training room and multi-purpose room networks aggregating multi-gig endpoints to a 10G core
• Government spaces requiring IPv6 management, ACL security, and remote multi-site oversight

Technical Specifications

Specifications sourced from the NETGEAR datasheet.

Frequently Asked Questions

What is the difference between the multi-gig and 10G ports?
Four ports run 1G/2.5G and four run the full multi-gig range up to 10G (100M/1G/2.5G/5G/10G). All eight support Ultra60 PoE++, so you can mix device speeds while powering each one.

Can I connect a 10G NAS or uplink to a core switch?
Yes. The two dedicated 10G SFP+ ports accept fiber or copper modules for high-bandwidth uplinks to a core switch or direct connection to 10G storage.

Does it support 2.5G and 5G over existing cabling?
Yes. The multi-gig ports run 2.5G and 5G over existing Cat5e, so you avoid recabling when upgrading access points and endpoints.

How much PoE can it deliver?
Every copper port supports Ultra60 PoE++ up to 60W, drawing from a 295W total budget shared across active ports.

Can I manage it remotely?
Yes. Optional NETGEAR Insight cloud management provides remote monitoring, configuration, PoE scheduling, and firmware updates from a mobile app or web portal.

What warranty and support are included?
The MS510TXUP includes a NETGEAR Limited Lifetime hardware warranty with Next Business Day replacement, a 1-year Insight subscription, and optional ProSUPPORT service packs.
