Netgear MS108UP-100NAS

Product Overview

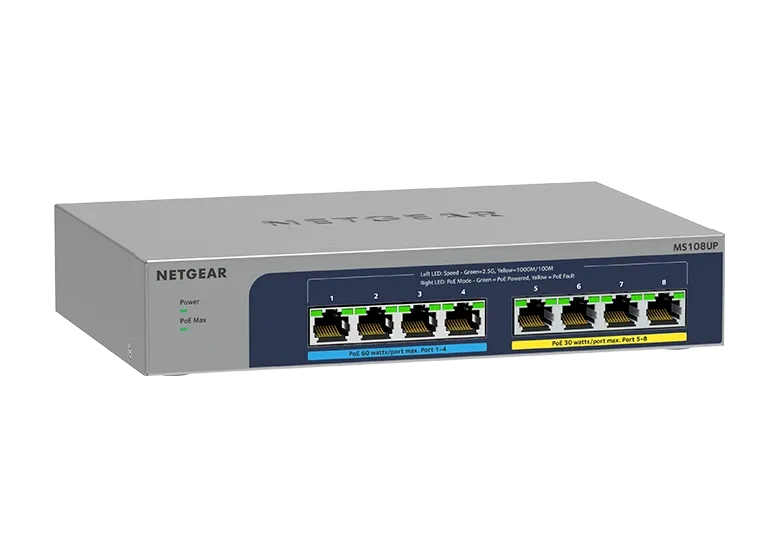

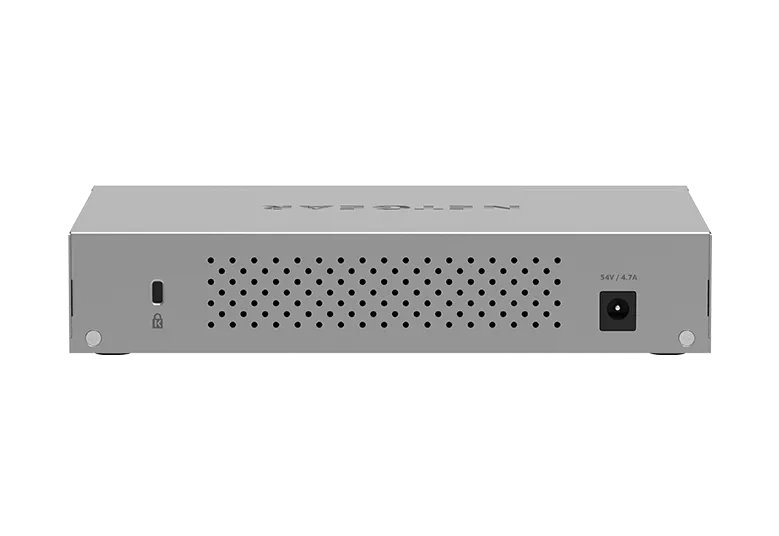

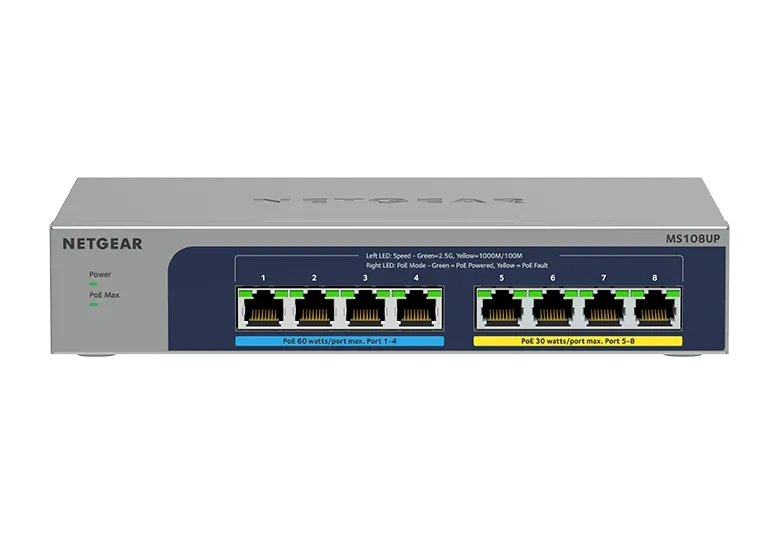

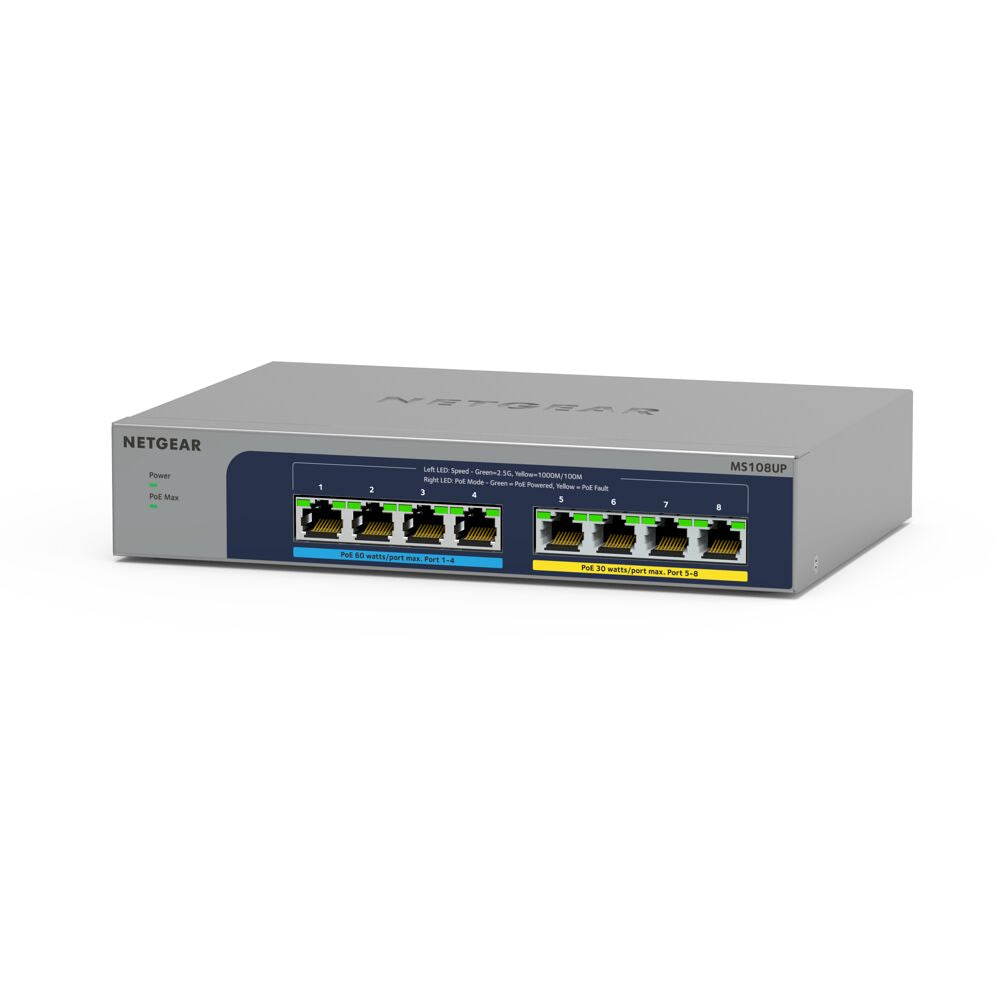

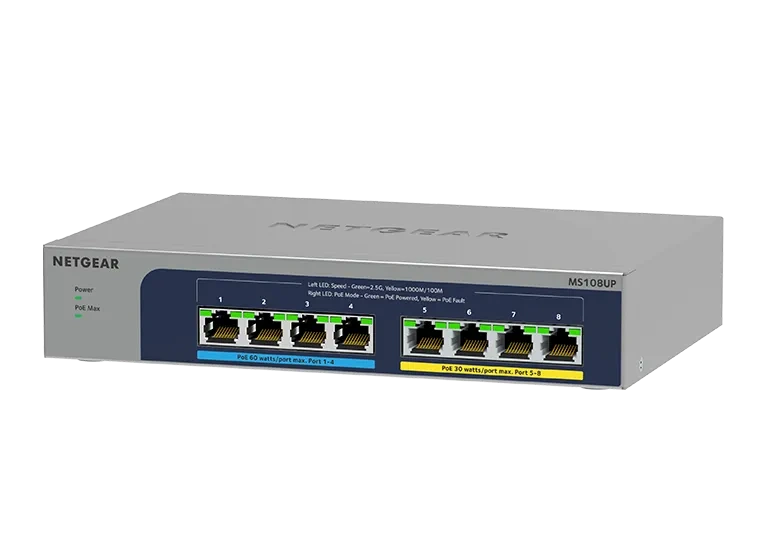

The NETGEAR MS108UP is an 8-port multi-gigabit Ultra60 PoE++ unmanaged switch built for plug-and-play AV power and connectivity. All eight ports run 1G/2.5G, with four Ultra60 PoE++ ports at up to 60W and four PoE+ ports at up to 30W, sharing a 230W total PoE budget. Unique PoE Auto-Balance distributes power based on each device's actual need rather than its detected class, and the fanless metal enclosure runs silent. It is a simple, affordable way to power WiFi 6 access points, IP cameras, and VoIP endpoints with no configuration.

Product Description

The MS108UP is the first NETGEAR unmanaged multi-gig PoE++ switch, giving AV installers high power and multi-speed connectivity without any setup. Each of the eight 2.5GBASE-T copper ports auto-negotiates 100M/1G/2.5G over existing Cat5e cabling, so multi-gig WiFi 6 access points and 2.5G cameras connect instantly at the speed each device needs. Ports 1-4 supply Ultra60 PoE++ (802.3bt) up to 60W per port and ports 5-8 supply PoE+ (802.3at) up to 30W, all drawing from a 230W budget.

PoE Auto-Balance is the standout feature: instead of reserving power by detected PoE class, the switch delivers exactly what each connected device draws, which lets you power more devices from the available budget. The non-blocking 40Gbps fabric forwards traffic at wire speed, and the fanless design with a 0 dBA acoustic rating makes it suitable for a conference room credenza or AV equipment closet. Per-port LEDs show speed, link, activity, and PoE status for quick at-a-glance monitoring. Browse comparable models in our NETGEAR switch collection to find the right fit for your install.

Key Features

• Ultra60 PoE++ power — Four ports deliver up to 60W (802.3bt) and four deliver up to 30W (802.3at) from a 230W budget for APs, cameras, and phones.
• PoE Auto-Balance — Allocates power by actual device draw rather than detected class, letting you power more devices from the available budget.
• Multi-gig 2.5G ports — All eight RJ-45 ports auto-negotiate 100M/1G/2.5G over Cat5e for WiFi 6 access points and 2.5G endpoints.
• Plug-and-play — No software or configuration needed; connect devices and they negotiate speed automatically.
• Non-blocking 40Gbps fabric — Store-and-forward switching at wire speed across all ports.
• Fanless silent operation — Zero acoustic noise suits quiet rooms and AV equipment closets.
• Per-port status LEDs — Speed, link, activity, and PoE indicators for fast visual monitoring.
• Limited Lifetime warranty — Backed by NETGEAR Enterprise hardware coverage and optional support tiers.

Technical Specifications

Specifications sourced from the NETGEAR datasheet.
