Netgear XSM4316S-100NES M4300-8X8F Stackable Managed Switch with 16x10G Including 8x10GBase-T and 8xSFP+ Layer 3

Netgear SKU: XSM4316S-100NES
No reviews
Price:
$2,159.99 $3,369.44

Description

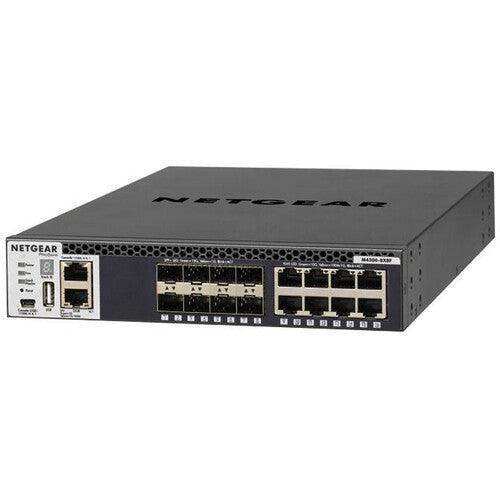

The M4300-8X8F features sixteen 10G ports, comprised of eight RJ45 copper wire connectors and eight SFP+ fiber optic transceiver slots. This switch is designed to smoothly transfer data with a 320 Gb/s switching capacity and 238 Mpps forwarding rate. Your data is secured by features such as access control, private VLANs, and denial of service (DoS) attack protection. The half-width design allows you to install two switches into the same rackmount space for redundancy. A modular 250W power supply is included.

  • 8 x 10G RJ45 Ports
  • 8 x 10G SFP+ Slots
  • 320 Gb/s Switching Capacity
  • 238 Mpps Forwarding Rate
  • Half-Width Rackmount Design
  • Includes Modular 250W PSU
  • Fan Cooled
  • Pre-Configured for AV-Over-IP
  • License-Free Layer 2 & 3 Features

Netgear XSM4316S-100NES Specs
Wi-Fi None
Interfaces
Inputs/Outputs 8 x 10Gb Ethernet (RJ45)
8 x 10Gb SFP
1 x RS-232 (Console)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)
1 x Mini-USB (Console)
1 x USB-A
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support, Layer 4 Support
Supported Protocols Auto-MDIX/MDI
Auto-VoIP
DHCP Server
DoS
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
SNMPv1
SNMPv2c
SNMPv3
TLS
Queuing Strict Priority
Transmission Method Store-and-Forward
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 16K
VLAN Groups 4093
VLAN IDs 4093
Security
Security Features DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Access Control List 100
IP Interfaces 128
Static Routes 64
SNMP Support 1, 2, 3
Standards
Supported IEEE Standards 802.1ab, 802.1as, 802.1ax, 802.1d, 802.1p, 802.1q, 802.1qat, 802.1qav, 802.1qbb, 802.1s, 802.1v, 802.1w, 802.1x, 802.3, 802.3ad, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3ba, 802.3bz, 802.3u, 802.3x
Performance
Latency 0.7 to 2.6 µs
Forwarding Rate 238 Mpps
Switching Bandwidth 320 Gb/s (Non-Blocking)
Packet Buffer 16 Mb
Computer
Flash Memory 256 MB
CPU Up to 800 MHz Single-Core
Memory 1 GB
Electrical
Power Draw 49.00 W (Max)
AC Input Power 110 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 90% (Non-Condensing)
Storage Temperature -4 to 158°F / -20 to 70°C
Storage Humidity 95% (Non-Condensing)
Operating Altitude 10,000' / 3048 m
Storage Altitude 10,000' / 3048 m
Noise Level 36.9 dB
General
Certifications CE, VCCI, RCM, CCC, FCC, BSMI, CB
*as per Manufacturer
Cooling System Fan
Mean Time Between Failures (MTBF) 196,120 Hours
Indicator Lights Link/Activity/Speed, Master, Power, Stack
Rack Form Factor 1 RU
Dimensions 13.58 x 8.35 x 1.73" / 34.49 x 21.21 x 4.39 cm
Weight 7.31 lb / 3.32 kg
Packaging Info
Package Weight 11.16 lb
Box Dimensions (LxWxH) 22.7 x 14.3 x 3.6"
