Netgear M4350-24G4XF 24-Port 1G PoE+ Fully Managed AV Switch with 10G Uplinks - GSM4328-100NES

Product Overview

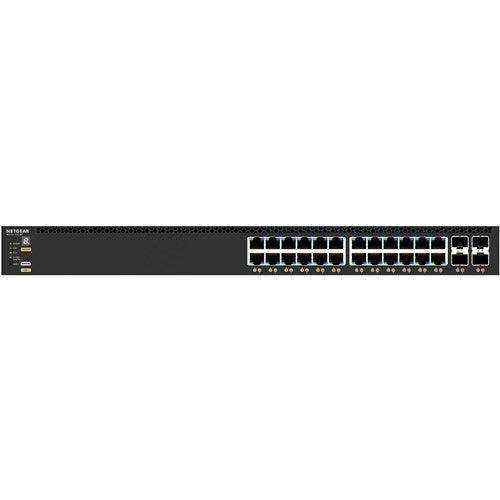

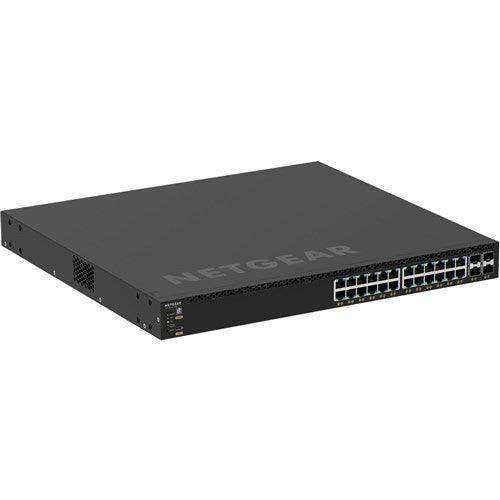

The NETGEAR M4350-24G4XF (GSM4328-100NES) is a fully managed AV switch built for AV-over-IP deployments that need PoE+ at the edge and 10G headroom for uplinks. It pairs 24 Gigabit PoE+ access ports with four 10G SFP+ fiber uplinks, delivering a 648W base PoE budget that can reach 720W with a redundant power supply installed. As part of the NETGEAR M4350 series, this 24-port PoE+ AV switch combines simplified AV configuration with Layer 3 routing and Virtual Chassis stacking for medium-scale professional installations.

Product Description

The M4350-24G4XF ships with the NETGEAR AV User Interface and Engage Controller, which apply certified one-click configuration profiles for protocols including Dante, NDI, Q-SYS, AES67, AVB, Crestron NVX, and AMX SVSI at no additional licensing cost. An 880W internal power supply provides 648W of PoE budget across the 24 access ports, each capable of up to 30W under IEEE 802.3at PoE+. A single modular power supply slot accepts an APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 unit for 1+1 redundancy or EPS sharing, and adding a redundant supply raises the available PoE budget to 720W. Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover, while the Layer 3 feature set covers static, policy-based, and dynamic routing. NETGEAR IGMP Plus delivers Layer-2 multicast management without PIM, so AV-over-IP video distribution works with little setup out of the box. The chassis fits in a 1U rack space at 400mm depth and includes a quiet mode rated at 33dB for noise-sensitive rooms.

Key Features

• 24x 1G PoE+ ports — IEEE 802.3at delivers up to 30W per port for cameras, displays, and AV endpoints.
• 4x 10G SFP+ uplinks — 10GBASE-X fiber uplinks aggregate edge traffic to the core.
• 648W base PoE budget, up to 720W — 880W internal PSU powers a full bank of PoE+ devices, expandable with a redundant supply.
• Modular redundant PSU slot — accepts APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 for 1+1 redundancy or EPS sharing.
• NETGEAR AV UI + Engage Controller — certified one-click profiles for Dante, NDI, Q-SYS, AES67, AVB, Crestron NVX, and AMX SVSI, no license required.
• NETGEAR IGMP Plus — Layer-2 multicast management without PIM for low-effort AV-over-IP setup.
• Virtual Chassis stacking — non-stop forwarding and hitless failover for high availability.
• Layer 3 routing — static, policy-based, and dynamic routing for segmented AV and IT networks.
• Jumbo frame support — frames up to 12KB for high-bandwidth media flows.
• Quiet mode acoustics — 33dB at 25C suits boardrooms and worship spaces.
• NETGEAR ProSAFE Limited Lifetime Hardware Warranty — covers the switch hardware for its service life.

Typical Applications

• Boardroom — powers and networks displays, cameras, and DSPs on a single managed switch.
• Conference room — supports Dante audio and NDI video endpoints with PoE+ at the edge.
• House of worship — distributes multicast audio and video across the sanctuary and overflow rooms.
• Government space — provides Layer 3 segmentation for AV and IT traffic in agency facilities.
• Commercial meeting space — aggregates AV-over-IP endpoints with 10G uplinks to the core.
• Multi-purpose room — flexible PoE+ ports adapt to changing AV layouts.
• All-hands room — scales video distribution for town-hall and large-group sessions.

Technical Specifications

Frequently Asked Questions

Does the M4350-24G4XF require licenses for AV protocol profiles?
No. The NETGEAR AV User Interface, Engage Controller, and AVB support are included at no additional cost, with certified profiles for Dante, NDI, Q-SYS, AES67, Crestron NVX, and AMX SVSI.

How much PoE can it deliver?
The 880W internal supply provides a 648W base PoE budget across the 24 PoE+ ports at up to 30W per port. Installing a redundant modular supply raises the available budget to 720W.

Can it route between VLANs for AV and IT traffic?
Yes. The switch supports Layer 3 static, policy-based, and dynamic routing, so you can segment AV-over-IP and IT networks on one platform.

How does it simplify AV-over-IP multicast?
NETGEAR IGMP Plus handles Layer-2 multicast management without PIM, enabling video-over-IP delivery with little configuration out of the box.

What warranty applies?
This M4350 series switch is backed by the NETGEAR ProSAFE Limited Lifetime Hardware Warranty. Contact our team for current support contract options.
