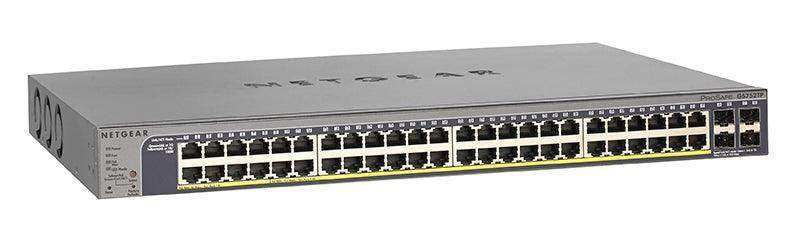

Netgear GS752TPP-300NAS 48-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (760W)

Product Overview

The NETGEAR GS752TPP-300NAS is a 48-port Gigabit PoE+ Smart Managed Pro switch with a 760W PoE power budget and 4 dedicated SFP fiber uplink ports. Designed for SMB and commercial deployments, this 48-port PoE+ switch supports high-power endpoints such as wireless access points, IP cameras, VoIP phones, and video-over-IP devices. Cloud-manageable through NETGEAR Insight, it delivers Layer 2 features plus Layer 3 static routing in a single rack-mountable unit.

Product Description

This Smart Managed Pro switch provides 48 Gigabit PoE+ copper ports and 4 dedicated SFP slots for fiber uplinks, uplink redundancy, and failover. The full 760W PoE power budget gives integrators substantial headroom to power dense deployments of high-draw PoE devices across all ports. A non-blocking switching architecture, 16K MAC address table, 256 VLANs, and 512 multicast groups support demanding small-business and commercial networks. Layer 3 static routing handles up to 32 IPv4/IPv6 routes for inter-VLAN local routing, while DiffServ QoS prioritizes voice and video traffic. Temperature- and load-based fan-speed control keeps operation quiet at a maximum of 39.74dB at 25°C ambient. Remote and cloud management is available through NETGEAR Insight via the mobile app or web portal, and the switch is also manageable with the NMS300 platform and a web browser-based GUI.

Key Features

• 48 Gigabit PoE+ ports — Power and connect access points, cameras, phones, and IoT endpoints on every port.
• 760W PoE power budget — Provides headroom to drive dense, high-power PoE deployments simultaneously.
• 4 dedicated SFP uplinks — Add fiber uplinks with redundancy and failover for improved reliability.
• Layer 3 static routing — Supports 32 IPv4/IPv6 routes for inter-VLAN local routing without an external router.
• Advanced VLAN and Private VLAN — Segment traffic across up to 256 VLANs for security and isolation.
• DiffServ QoS — Prioritizes traffic with port-based, 802.1p, and L2/L3/L4 DSCP-based queuing.
• L2/L3/L4 ACLs and 802.1x — Enforce granular access control and port-based authentication.
• Per-port PoE scheduling — Manage and schedule power remotely to connected devices.
• IGMP Snooping, Querier, and MVR — Optimize multicast for larger L2 networks and AV-over-IP deployments.
• NETGEAR Insight cloud management — Configure and monitor from anywhere via mobile app or web portal.
• Auto DoS prevention and Dynamic ARP — Defend against denial-of-service and man-in-the-middle attacks.
• Energy Efficient Ethernet (802.3az) — Reduces power consumption during low-traffic periods.

Typical Applications

• Conference room — Power and uplink IP video endpoints, displays, and wireless access points.
• Training room — Aggregate cameras, VoIP, and AV devices on a single PoE+ switch.
• Commercial meeting space — Segment AV, voice, and data traffic across VLANs with QoS.
• House of worship — Distribute multicast video and audio to access points and endpoints.
• Multi-purpose room — Support flexible PoE device layouts with per-port power scheduling.

Technical Specifications

Frequently Asked Questions

Does the GS752TPP-300NAS support PoE+ on all 48 ports?
Yes. PoE+ is supported on all ports, with a total 760W power budget shared across connected devices.

Can this switch route between VLANs?
Yes. It provides Layer 3 static routing for up to 32 IPv4/IPv6 routes, enabling inter-VLAN local routing without a separate router.

How is the switch managed?
Through a web browser-based GUI, NETGEAR Insight cloud (app or portal), the NMS300 management platform, and SNMP v1/v2c/v3 with RMON.

Is it suitable for AV-over-IP networks?
It includes IGMP Snooping, Querier, and Multicast VLAN Registration (MVR) to optimize multicast traffic for AV-over-IP endpoints on larger L2 networks.

What warranty is included?
It carries a NETGEAR limited lifetime warranty with Next Business Day replacement and 90 days of 24x7 advanced technical phone support.
