Netgear GS724TP-300NAS
Product Overview

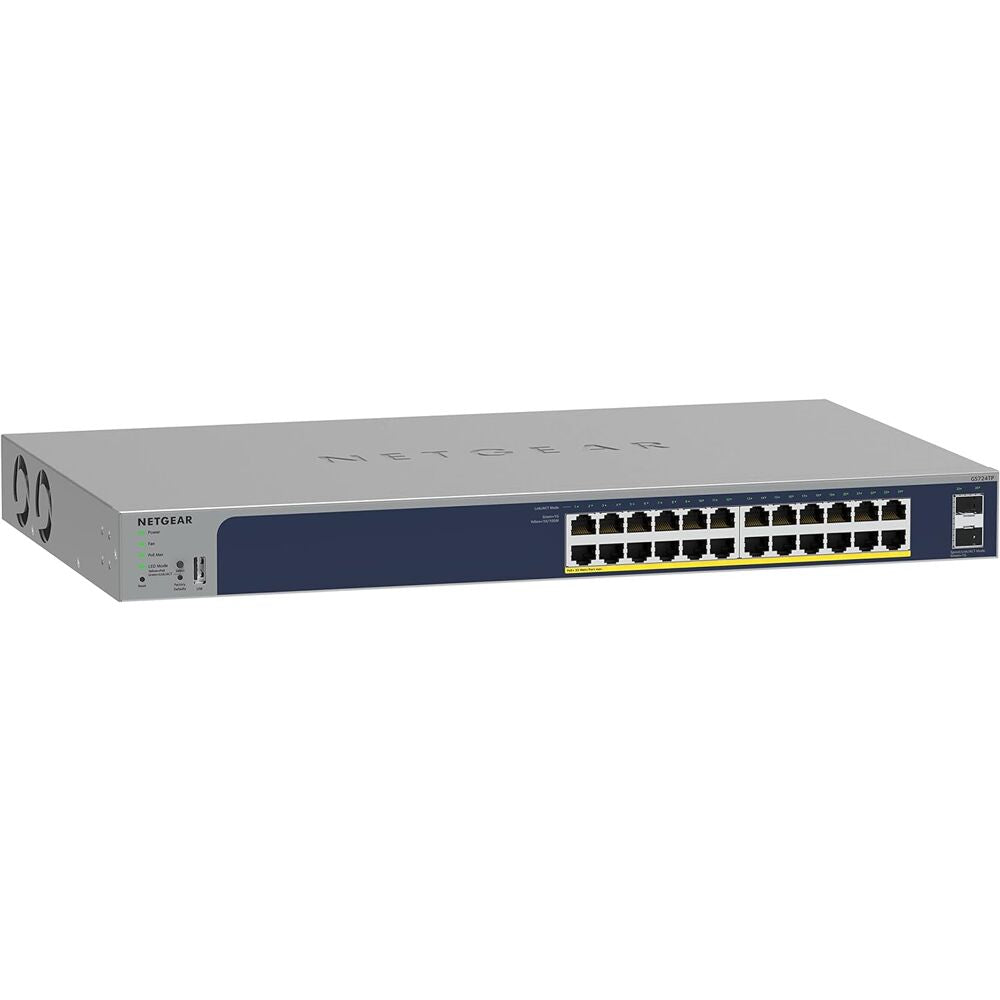

The NETGEAR GS724TP is a 24-port Gigabit PoE+ smart managed pro switch with two dedicated SFP fiber uplinks and a 190W PoE budget. It pairs Layer 2 management features such as VLANs, ACLs, and QoS with optional NETGEAR Insight remote and cloud management. All 24 copper ports deliver 802.3at PoE+ to power VoIP phones, IP cameras, and wireless access points. Temperature- and load-based fan control keeps rack-mount operation quiet at up to 32.4 dBA.
Product Description
The NETGEAR GS724TP 24-port Gigabit PoE+ smart managed pro switch is built for converged commercial AV networks that carry voice, video, and data on a single platform. Its 24 PoE+ ports share a 190W budget for powering modern endpoints, while two dedicated Gigabit SFP ports provide fiber uplinks to the network core. The switch delivers 52Gbps of non-blocking switching capacity and supports an 8K MAC address table and up to 64 VLANs for network segmentation.
Management features include advanced VLAN support, L2/L3/L4 access control lists, 802.1x port authentication, DiffServ QoS, and Auto-VoIP for prioritizing voice traffic. Per-port PoE controls allow remote enable, disable, power limiting, and scheduling, which helps integrators manage device power and conserve energy. IGMP snooping and querier optimize multicast streams for video distribution. Administrators can configure the switch through the local web GUI or activate NETGEAR Insight for remote management from a mobile app or cloud portal. To build out a matching infrastructure, browse the full NETGEAR switch collection. The GS724TP mounts in a standard 19-inch rack and is backed by a NETGEAR limited lifetime warranty.
Key Features
- 24 PoE+ Gigabit ports — All 24 RJ-45 ports deliver 802.3at PoE+ for powering APs, cameras, and VoIP phones over Ethernet.
- 190W PoE budget — A 190W total budget supports a mix of mid-power PoE endpoints across the port count.
- 2 dedicated SFP uplinks — Two Gigabit SFP fiber ports provide aggregation links to the network core.
- 52Gbps non-blocking switching — Wire-speed forwarding across all ports handles converged voice, video, and data.
- Advanced VLANs and ACLs — Up to 64 VLANs plus L2/L3/L4 access control lists segment and secure traffic.
- Auto-VoIP and QoS — DiffServ QoS and Auto-VoIP prioritize voice and video for clean call quality.
- Per-port PoE scheduling — Remote PoE controls enable, disable, power-limit, and schedule connected devices.
- NETGEAR Insight cloud-ready — Optional remote and cloud management through the Insight app or Cloud Portal.
- Quiet rack operation — Load-based fan control keeps noise to a maximum of 32.4 dBA at 25°C.
Typical Applications
- Conference rooms and boardrooms running converged VoIP, video conferencing, and PoE-powered cameras
- House of worship installations distributing IP video and powering PTZ cameras with VLAN segmentation
- Training rooms and multi-purpose rooms requiring managed PoE+ with fiber uplinks to a core switch
- Government spaces needing 802.1x authentication and ACL-based access control on PoE endpoints
- Commercial meeting spaces consolidating wireless APs, phones, and signage on one managed switch
Technical Specifications
| Copper Ports | 24 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 |
| Fiber Uplinks | 2 dedicated 1G SFP (1000BASE-X) |
| PoE Standard | 802.3at PoE+ on all 24 ports |
| Total PoE Budget | 190W |
| Switching Capacity | 52 Gbps (non-blocking) |
| MAC Address Table | 8K |
| VLANs | 64 |
| Packet Buffer Memory | 512 KB |
| Jumbo Frame Support | 9,216 bytes |
| Acoustic Noise | 32.4 dBA max at 25°C |
| Dimensions (W x D x H) | 440 x 204 x 43 mm (17.3 x 8 x 1.7 in) |
| Mounting | Desktop or 19-inch rack |
| Warranty | NETGEAR limited lifetime |
Specifications sourced from the NETGEAR datasheet.
Frequently Asked Questions
How many PoE+ ports does the GS724TP have and what is the power budget?
The switch provides 24 ports of 802.3at PoE+ sharing a 190W total budget, suitable for powering VoIP phones, IP cameras, and wireless access points.
What are the two SFP ports used for?
The two dedicated Gigabit SFP fiber ports provide uplinks to a network core or aggregation switch, accepting NETGEAR fiber or copper SFP transceiver modules.
Can the GS724TP be managed remotely?
Yes. It can be configured locally through the web browser GUI or remotely via NETGEAR Insight using the mobile app or Insight Cloud Portal, with the first two devices managed free.
Is it suitable for AV integration with VLANs and QoS?
Yes. It supports up to 64 VLANs, L2/L3/L4 ACLs, DiffServ QoS, Auto-VoIP, and IGMP snooping for prioritizing voice and managing multicast video streams.
How does it install in a rack and what warranty applies?
The GS724TP includes a rackmount kit for standard 19-inch racks, runs quietly at up to 32.4 dBA, and is backed by a NETGEAR limited lifetime warranty with next-business-day replacement.
