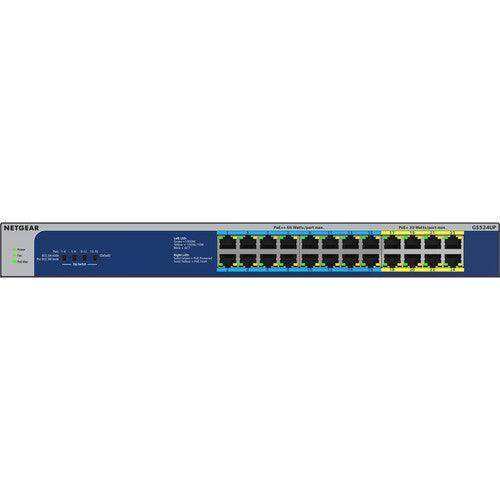

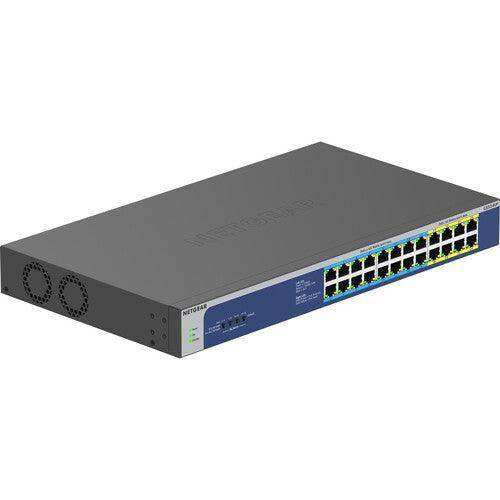

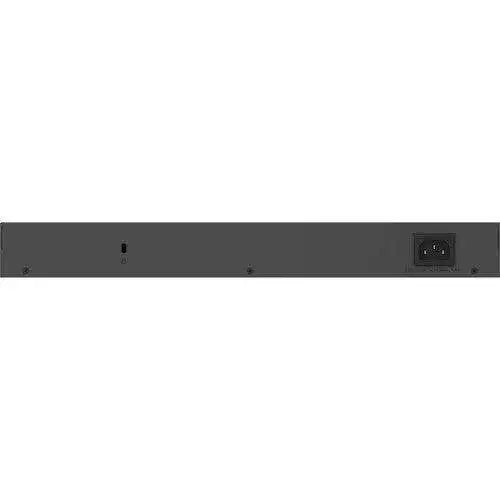

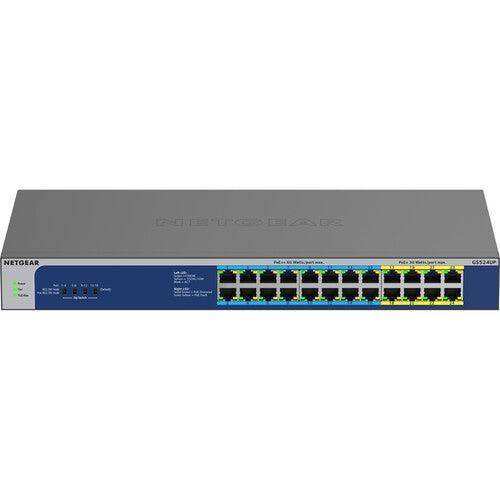

Netgear GS524UP-100NAS 24-Port PoE++ Compliant Gigabit Unmanaged Network Switch

Product Overview

The NETGEAR GS524UP-100NAS is a 24-port Gigabit unmanaged PoE++ switch designed to add high-power Power over Ethernet capacity to a network without any configuration. It provides 16 PoE++ (802.3bt Type 3, 60W) ports and 8 PoE+ (802.3at, 30W) ports within a 480W power budget, allocated automatically across connected devices. As an unmanaged switch, it has no management interface, VLANs, or CLI — you connect devices and it operates plug-and-play. This NETGEAR 24-port PoE++ unmanaged switch suits installs that need dense high-wattage PoE for advanced IP cameras, high-bandwidth access points, and VoIP phones.

Product Description

The GS524UP expands capacity for power-hungry endpoints with 24 Gigabit Ethernet ports: 16 ports deliver up to 60W of PoE++ output and the remaining 8 supply up to 30W, all drawing from a 480W power budget. NETGEAR Power Auto-Balance and allocation technology detects each device's requirement and distributes power automatically, with no setup required. Because it is unmanaged, there is no web GUI, VLAN support, or command-line interface; devices are simply connected and forwarded at Layer 2. The switch provides 48 Gb/s non-blocking switching capacity and a 1.4 Mpps forwarding rate, with 9216-byte jumbo frame support and an 8K MAC address table. A rugged metal chassis dissipates heat for reliable desktop or rackmount operation, and the unit ships with mounting hardware for either placement. Indicator LEDs report link/activity, PoE, speed, and fan status.

Key Features

• 16 PoE++ ports at 60W — Powers high-draw devices such as PTZ cameras, multi-radio access points, and pan-tilt-zoom endpoints over a single cable.
• 8 PoE+ ports at 30W — Supports standard PoE+ devices like IP phones and access points alongside the high-power ports.
• 480W total PoE budget — Provides ample headroom for mixed deployments of cameras, phones, and wireless endpoints.
• Power Auto-Balance and allocation — Automatically detects each device's draw and distributes power, with no configuration needed.
• Unmanaged, plug-and-play — No management UI, VLANs, or CLI; connect devices and the switch forwards traffic immediately.
• 48 Gb/s non-blocking switching — Handles full wire-speed traffic across all ports with a 1.4 Mpps forwarding rate.
• 9216-byte jumbo frames — Supports larger frames for efficient bulk data transfers.
• Rugged metal chassis — Durable metal housing dissipates heat for reliable continuous operation.
• Desktop or rackmount — Includes hardware for either placement to fit closets, racks, or AV furniture.
• Energy Efficient Ethernet (802.3az) — Reduces power draw on idle and lightly loaded links.

Typical Applications

• Conference room — Powers high-wattage cameras and access points without managed configuration.
• House of worship — Supplies 60W PoE++ to PTZ cameras and high-bandwidth wireless for streaming.
• Training room — Plug-and-play power and connectivity for multiple APs and IP devices.
• Commercial meeting space — Adds dense PoE++ capacity quickly where no managed features are required.
• Multi-purpose room — Flexible desktop or rack placement to power mixed AV and IT endpoints.

Technical Specifications

Frequently Asked Questions

Does the GS524UP support VLANs or remote management?
No. The GS524UP is an unmanaged switch with no web interface, VLAN support, or command-line management. It operates plug-and-play. If you need managed features, consider a NETGEAR smart managed Pro model instead.

How much PoE power does each port deliver?
16 ports deliver up to 60W (PoE++/802.3bt Type 3) and 8 ports deliver up to 30W (PoE+/802.3at), within a shared 480W budget. NETGEAR Power Auto-Balance allocates power automatically.

How do I install it?
Connect power and your devices and the switch forwards traffic immediately with no configuration. It includes hardware for desktop placement or rack mounting.

Is it suitable for high-power AV cameras and access points?
Yes. The 60W PoE++ ports support advanced IP cameras, PTZ cameras, and high-bandwidth access points that exceed standard PoE+ limits.

What support is available?
For warranty terms and pre-sale guidance, contact our team — we can confirm current NETGEAR coverage before you specify.
