Netgear GS510TPP-100NAS
Product Overview

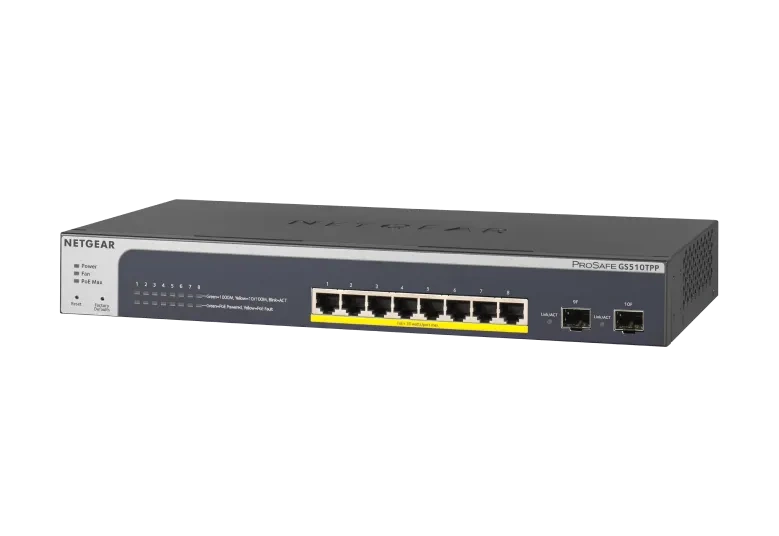

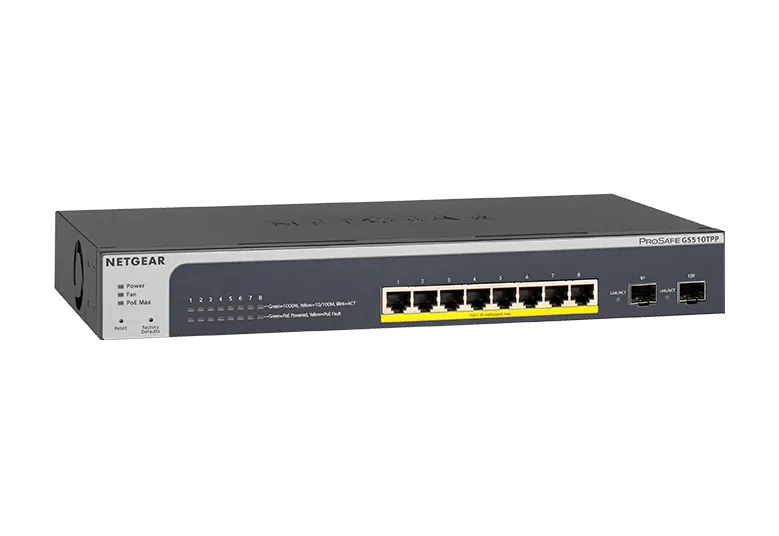

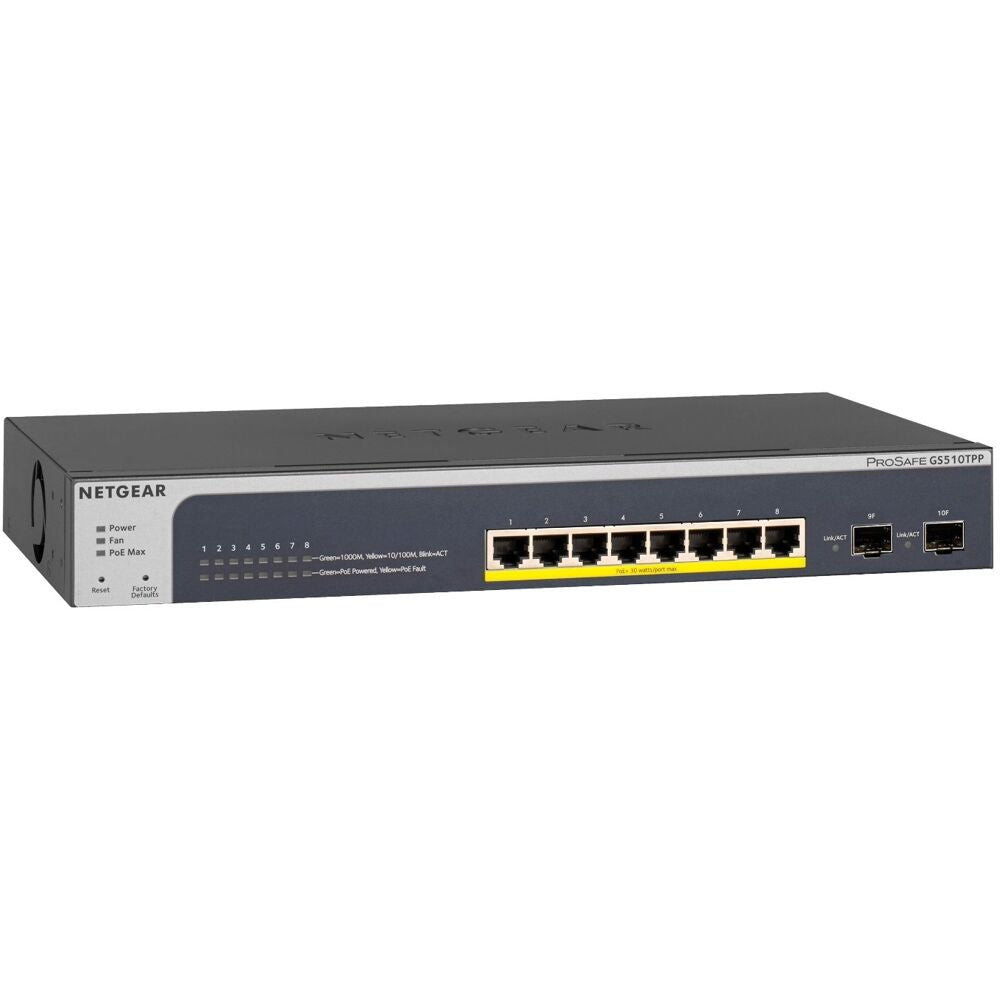

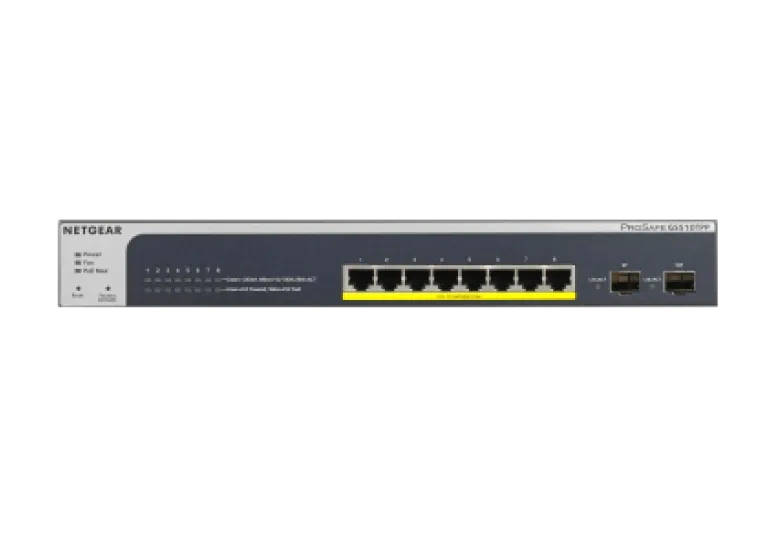

The NETGEAR GS510TPP is an 8-port Gigabit Ethernet smart-managed switch with eight 802.3at PoE+ ports, two dedicated SFP fiber uplinks, and a 190W power budget. It offers Layer 2+ management with VLANs, QoS, ACLs, and IPv4/IPv6 static routing for converged commercial AV networks. NETGEAR Insight cloud management allows remote configuration and monitoring. Temperature- and load-based fan control keeps operation quiet for boardrooms and conference rooms.
Product Description
The GS510TPP 8-port Gigabit PoE+ smart switch is aimed at AV integrators who need managed control plus generous PoE in a compact device. All eight Gigabit copper ports deliver 802.3at PoE+ from a 190W budget, enough headroom for high-power Wi-Fi access points, PTZ cameras, and VoIP endpoints. Two dedicated SFP ports provide fiber uplinks with link aggregation and failover, keeping downlink Gigabit ports free. The switch supports Layer 2+ and Layer 3 Lite features including advanced VLANs, L2/L3/L4 ACLs, 802.1x authentication, DiffServ QoS, Auto-VoIP, and IPv4/IPv6 static routing across 32 routes.
Management runs through a browser-based GUI, SNMP, and optionally the NETGEAR Insight cloud platform for remote deployment and monitoring without additional hardware. The fanless-class acoustic design uses temperature- and load-based fan control rated at a maximum of 32 dB at full power, so it stays quiet in occupied rooms. Dual firmware images and dual configuration files improve uptime during updates. With 20 Gbps of non-blocking fabric, a 16K MAC table, and 256 VLANs, it segments and prioritizes AV, voice, and data traffic effectively. The GS510TPP pairs well with the broader NETGEAR switch collection for managed edge deployments, and it carries a NETGEAR Limited Lifetime warranty.
Key Features
- 8 PoE+ Ports (802.3at) — Powers high-draw access points, PTZ cameras, and VoIP phones over Ethernet.
- 190W Total PoE Budget — Provides ample headroom for dense PoE+ device loads.
- 2 Dedicated SFP Uplinks — Fiber uplinks with link aggregation and failover, without using copper ports.
- Layer 3 Static Routing — 32 IPv4 and IPv6 routes enable inter-VLAN local routing on the switch.
- Advanced VLANs and ACLs — 256 VLANs plus L2/L3/L4 ACLs and 802.1x for segmented, secure networks.
- NETGEAR Insight Cloud Management — Remote configuration and monitoring without extra hardware.
- Auto-VoIP and DiffServ QoS — Prioritizes voice and video traffic for converged AV networks.
- Quiet Load-Based Cooling — Maximum 32 dB at full power for placement in occupied rooms.
- Dual Firmware and Config Images — Improves uptime during firmware updates and changes.
Typical Applications
- Boardrooms powering ceiling access points, cameras, and VoIP endpoints with managed VLAN segmentation
- Conference rooms using fiber SFP uplinks back to a building distribution switch
- House of worship installations prioritizing audio and video traffic across a converged network
- Commercial meeting spaces requiring 802.1x security and inter-VLAN routing at the edge
- Training rooms deploying high-power access points managed remotely through NETGEAR Insight
Technical Specifications
| Ports | 8 x 10/100/1000 Mbps Gigabit Ethernet |
| PoE Ports | 8 x 802.3at PoE+ |
| SFP Ports | 2 (dedicated 100M/1G fiber) |
| Total PoE Budget | 190W |
| Management | Smart-managed (L2+/L3 Lite), web GUI, SNMP, NETGEAR Insight |
| Switching Bandwidth | 20 Gbps (non-blocking) |
| VLANs | 256 |
| Static Routes | 32 IPv4 / 32 IPv6 |
| MAC Address Table | 16K |
| Acoustic Noise | Max 32 dBA at full power, 25°C |
| Dimensions (W x D x H) | 328 x 169 x 43 mm (12.9 x 6.7 x 1.7 in) |
| Mounting | Desktop or 19-inch rack (kit included) |
| Warranty | NETGEAR Limited Lifetime warranty |
Specifications sourced from the NETGEAR datasheet.
Frequently Asked Questions
What management level does the GS510TPP offer?
It is a smart-managed switch with Layer 2+ and Layer 3 Lite features, including VLANs, ACLs, QoS, 802.1x, and IPv4/IPv6 static routing. It is configured through a web GUI, SNMP, or the NETGEAR Insight cloud platform.
Can I manage it remotely?
Yes. The GS510TPP supports NETGEAR Insight cloud management, allowing remote configuration and monitoring from the Insight app or web portal without any additional hardware.
What do the two SFP ports support?
The two dedicated SFP ports accept 100M/1G fiber transceivers for uplinks to the network core. They support link aggregation and failover and do not consume any of the eight copper Gigabit ports.
Will it power Wi-Fi 6 access points and PTZ cameras?
Yes, within the 190W shared budget. The PoE+ ports support high-draw 802.3at devices; total simultaneous draw across all powered ports must remain within 190W.
Is it quiet enough for a boardroom?
It uses temperature- and load-based fan control rated at a maximum of 32 dB at full power, which is suitable for occupied rooms and racks alike.
Can it be rack-mounted?
Yes. A rack-mount kit is included for a standard 19-inch rack, and the switch can also be used on a desktop.
What warranty and support are included?
The GS510TPP carries a NETGEAR Limited Lifetime hardware warranty with 90 days of free 24x7 technical support, and optional Sprint and Drive support tiers are available.
