The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market. They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box.
A 10G to 100G solution

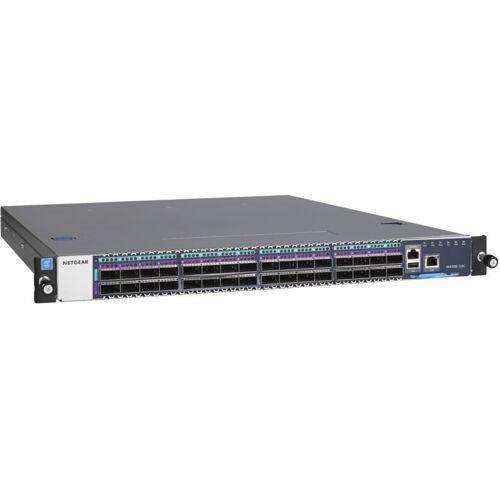

- The M4500-32C offers 32-port QSFP28 preconfigured for 100G and can support 40G QSFP+ and 50G QSFP28 optics or DAC cables
- The M4500-48XF8C offers 48-port SFP28 preconfigured for 10G with 8-port 100G QSFP28 uplinks, and the SFP28 ports can support 10G and 25G
For Pro AV installations
- Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box
- True AV and multicast Zero Touch network configuration: Connect AV-over-IP encoders and decoders, and power on the switch. It just works!
Intelligent IGMP Plus
- IGMP Plus multicast allows for scalable Pro AV installations at Layer 2 without the PIM (Protocol Independent Multicast) complexity
- IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across M4500 and M4300 switches on that VLAN
- Meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in sensible applications
- The M4500 switches offer 1+1 power and 4+2 fan redundancy, an x86 Intel Atom® Processor C3558 with 8GB DDR3/ECC RAM and 128GB SSD storage
Industry standard management
- The M4500 switches come with an industry standard command line interface (CLI), SSH, SNMP, sFlow, and MLAG
- An out of band 1 Gigabit Ethernet port facilitates management, with simplified macro-commands for AV-over-IP configuration
Industry leading warranty
- NETGEAR M4500 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
- Total Number of Network Ports: 32
- Modular: Yes
- Port/Expansion Slot Details: 32 x 100 Gigabit Ethernet Expansion Slot
- Media Type Supported: Twisted Pair
- Ethernet Technology: 100 Gigabit Ethernet
- Network Technology: 100GBase-X
- Number of Total Expansion Slots: 32
- Expansion Slot Type: QSFP28
- Layer Supported: 3
- Manageable: Yes
- Power Source: Power Supply
- Redundant Power Supply Supported: Yes
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Form Factor: Rail-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 20"
- Weight (Approximate): 21.54 lb
|Manufacturer Part Number||CSM4532-100NAS|
|Manufacturer Website Address||http://www.netgear.com|
|Product Name||CSM4532 Ethernet Switch|
|Product Type||Ethernet Switch|
|Total Number of Network Ports||32|
|Port/Expansion Slot Details||32 x 100 Gigabit Ethernet Expansion Slot|
|Media & Performance|
|Media Type Supported||Twisted Pair|
|Ethernet Technology||100 Gigabit Ethernet|
|Number of Total Expansion Slots||32|
|Expansion Slot Type||QSFP28|
|Network & Communication|
|Management & Protocols|
|Power Source||Power Supply|
|Redundant Power Supply Supported||Yes|
|Compatible Rack Unit||1U|
|Package Contents||CSM4532 Ethernet Switch 2 x Power Supplies and Six Fan Trays Already Installed Power Cord(s) Console Cable with One DB9 Female Connector and One RJ-45 Serial Connector 2 x Mounting Ears and Screws For Rack Mounting (Front) 1 x Set of Rail Kits For Rack Mounting (Back)|
