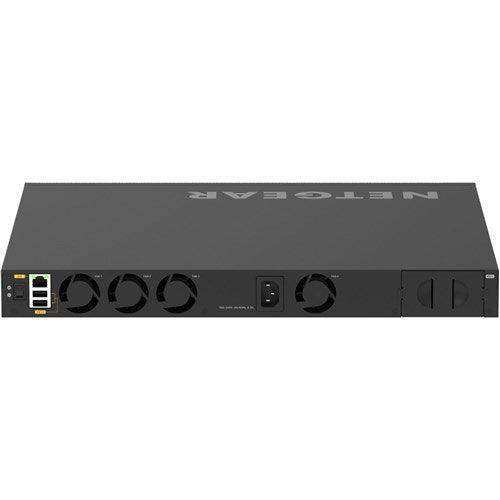

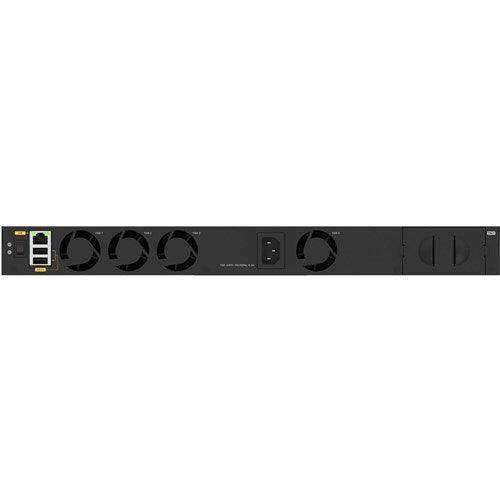

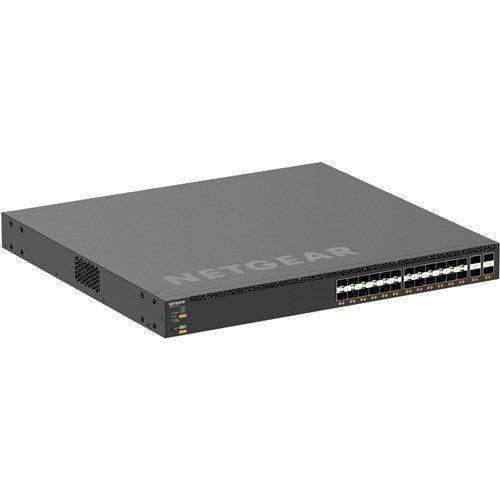

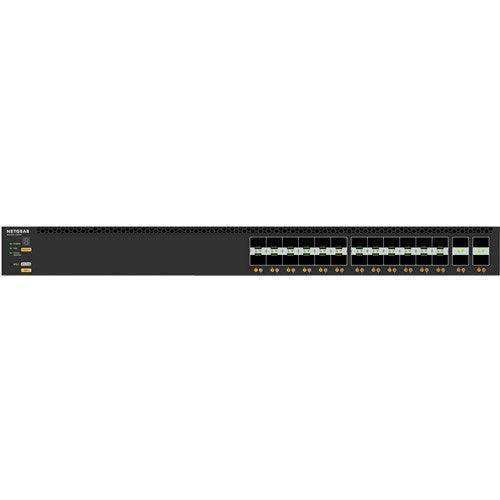

Netgear M4350-24F4V 24-Port 10G SFP+ Fully Managed AV Fiber Switch with 25G Uplinks - XSM4328FV-100NES

Product Overview

The NETGEAR M4350-24F4V (XSM4328FV-100NES) is a fully managed, all-fiber 10G SFP+ AV switch with 24 SFP+ ports and four 25G SFP28 uplinks. Purpose-built for AV-over-IP backbones that demand long-distance fiber, this 24-port fiber managed AV switch aggregates encoder/decoder racks, remote AV rooms, and inter-building links onto a pure-fiber network. Running the NETGEAR AV OS workflow, it provides high-bandwidth aggregation for broadcast, large-venue, and campus AV distribution.

Product Description

The M4350-24F4V presents 24 SFP+ ports that accept 1G and 10G SFP/SFP+ transceivers, giving integrators an all-fiber access and aggregation tier for AV-over-IP endpoints, while the four 25GBASE-X SFP28 uplinks provide high-bandwidth links to core or spine switches. The switch ships with the NETGEAR AV User Interface and Engage Controller, providing one-click configuration profiles for common AV protocols with no separate license. A 240W internal power supply is paired with a single modular PSU slot for 1+1 redundancy, accepting the APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 modules. Virtual Chassis stacking delivers non-stop forwarding (NSF) and hitless failover, and the full Layer 3 feature set supports static, policy-based, and dynamic routing. NETGEAR IGMP Plus manages AV multicast at Layer 2 without PIM, simplifying large fiber AV deployments across buildings and venues.

Key Features

• 24x 10G SFP+ Ports — All-fiber access tier accepting 1G and 10G SFP/SFP+ transceivers.
• 4x 25G SFP28 Uplinks — High-bandwidth 25GBASE-X aggregation to core or spine.
• Pure Fiber Architecture — Suited to long-distance, EMI-sensitive, or secure fiber-only AV networks.
• NETGEAR AV OS + Engage Controller — One-click AV profiles with no separate license required.
• NETGEAR IGMP Plus — Layer-2 multicast management for AV streams without PIM complexity.
• Modular Redundant Power — 240W internal PSU plus a modular slot for 1+1 redundancy (APS350Wv1/APS600Wv2/APS920Wv1/APS2000Wv1).
• Virtual Chassis Stacking — Non-stop forwarding and hitless failover across stacked units.
• Full Layer 3 Routing — Static, policy-based, and dynamic routing built in.

Typical Applications

• Broadcast Studio — Fiber aggregation of encoder/decoder racks for live production.
• Auditorium — High-bandwidth fiber AV distribution for large venues.
• House of Worship — Multi-building, campus-wide fiber AV backbones.
• All-Hands Room — Core aggregation for distributed AV endpoints over fiber.
• Government Space — Fiber-only network infrastructure with managed multicast.

Technical Specifications

Frequently Asked Questions

What transceivers do the 24 SFP+ ports accept?
They are SFP+ cages that accept 10G SFP+ and 1G SFP optics or direct-attach cabling, so you populate them to match your fiber AV endpoints.

What are the 25G SFP28 uplinks for?
The four 25GBASE-X SFP28 ports provide high-bandwidth aggregation to a core or spine switch, useful for large fiber AV backbones and inter-building links.

Is this an all-fiber switch?
Yes. All access and uplink ports are SFP-based, making it suited to long-distance, EMI-sensitive, or secure fiber-only AV networks.

What AV protocols and management does it include?
It ships with the NETGEAR AV UI and Engage Controller for one-click AV profiles, and IGMP Plus handles multicast at Layer 2 without PIM. No additional license is required.

What warranty applies?
The M4350 series carries the NETGEAR ProSAFE Limited Lifetime Hardware Warranty. Contact our team for current support and advance-replacement terms.
