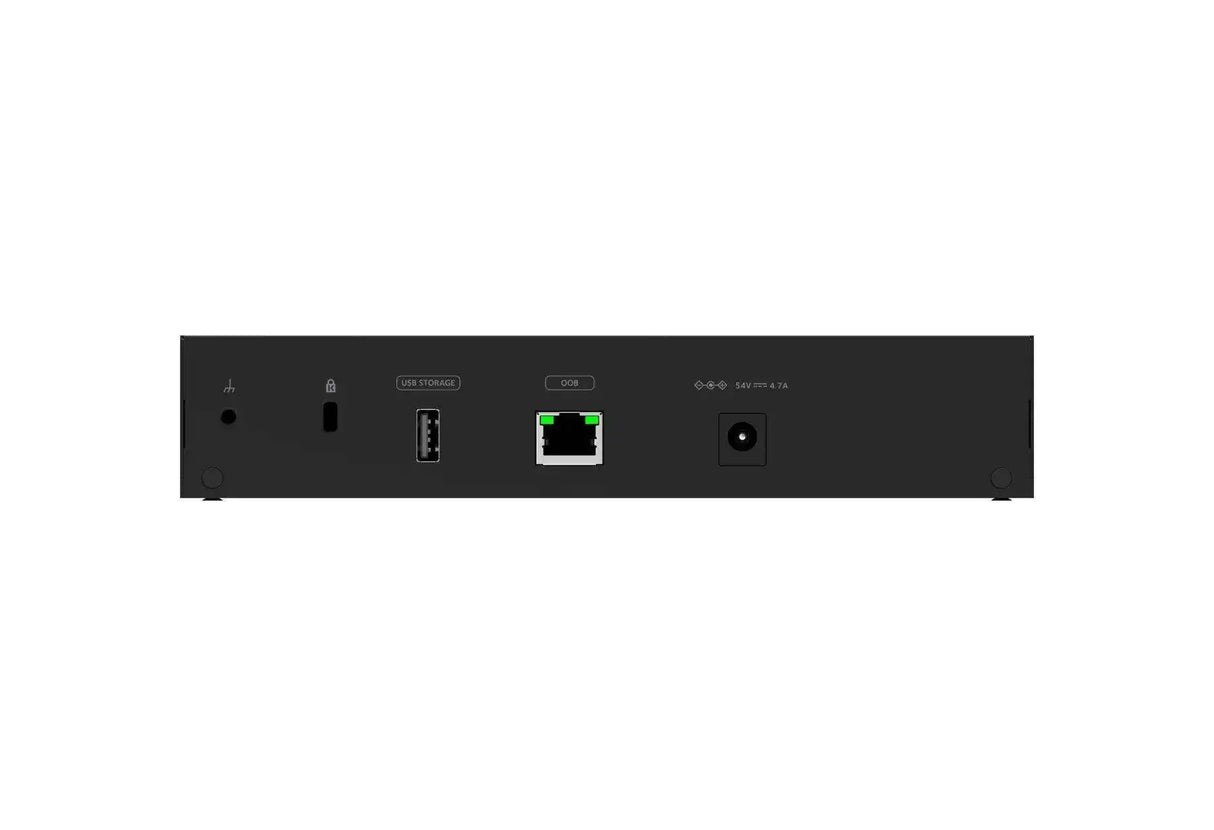

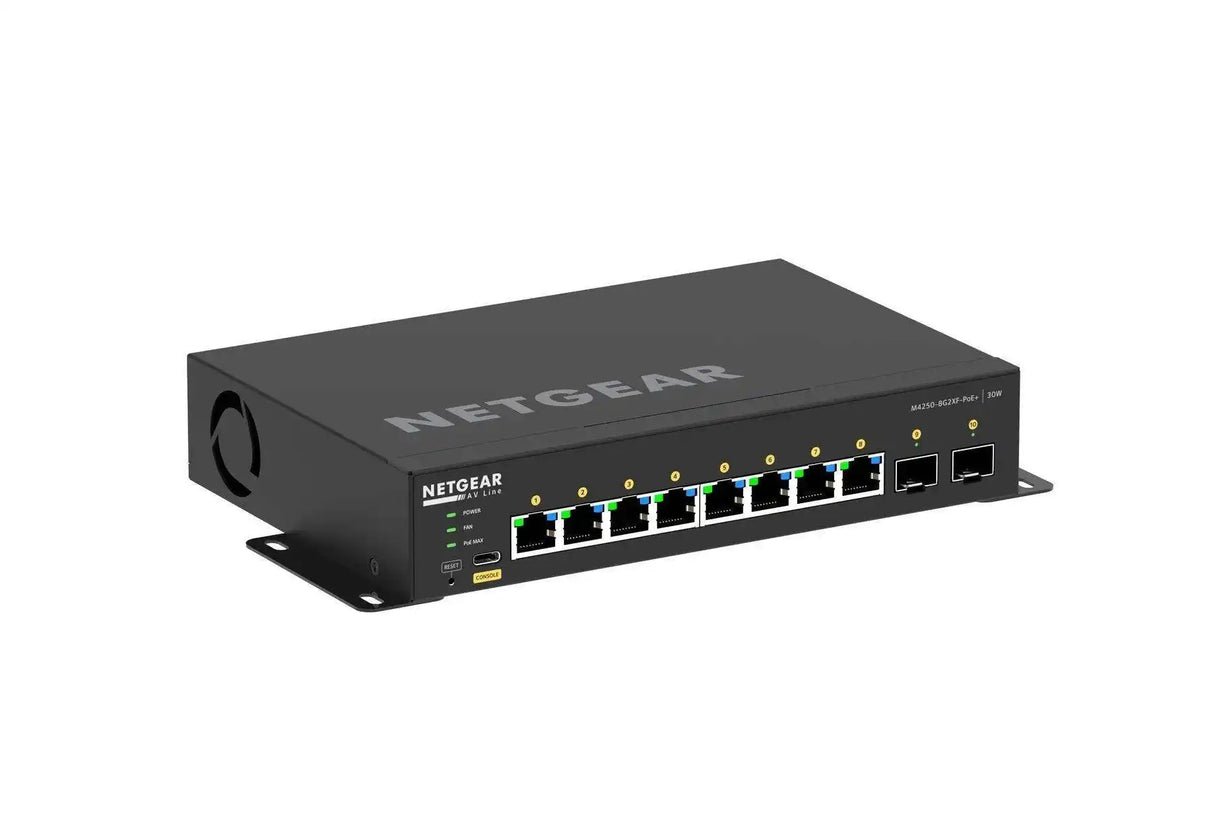

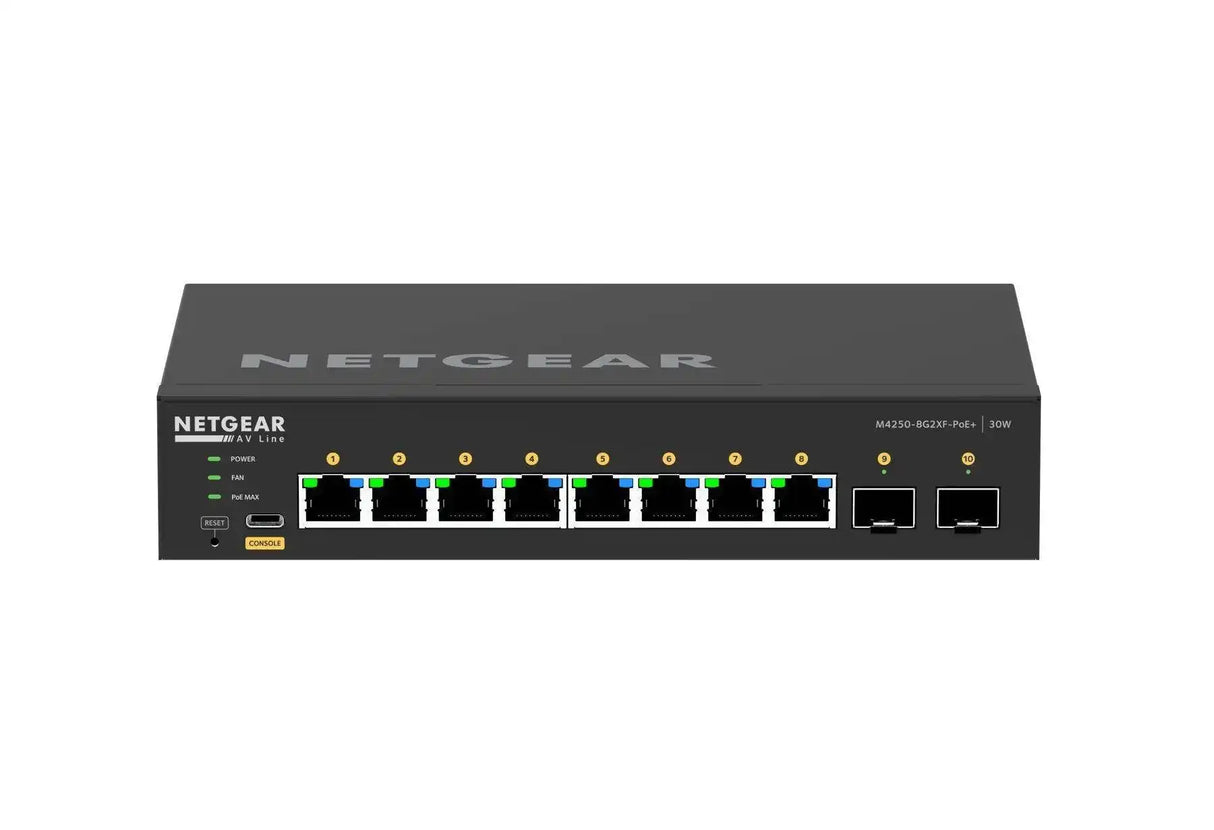

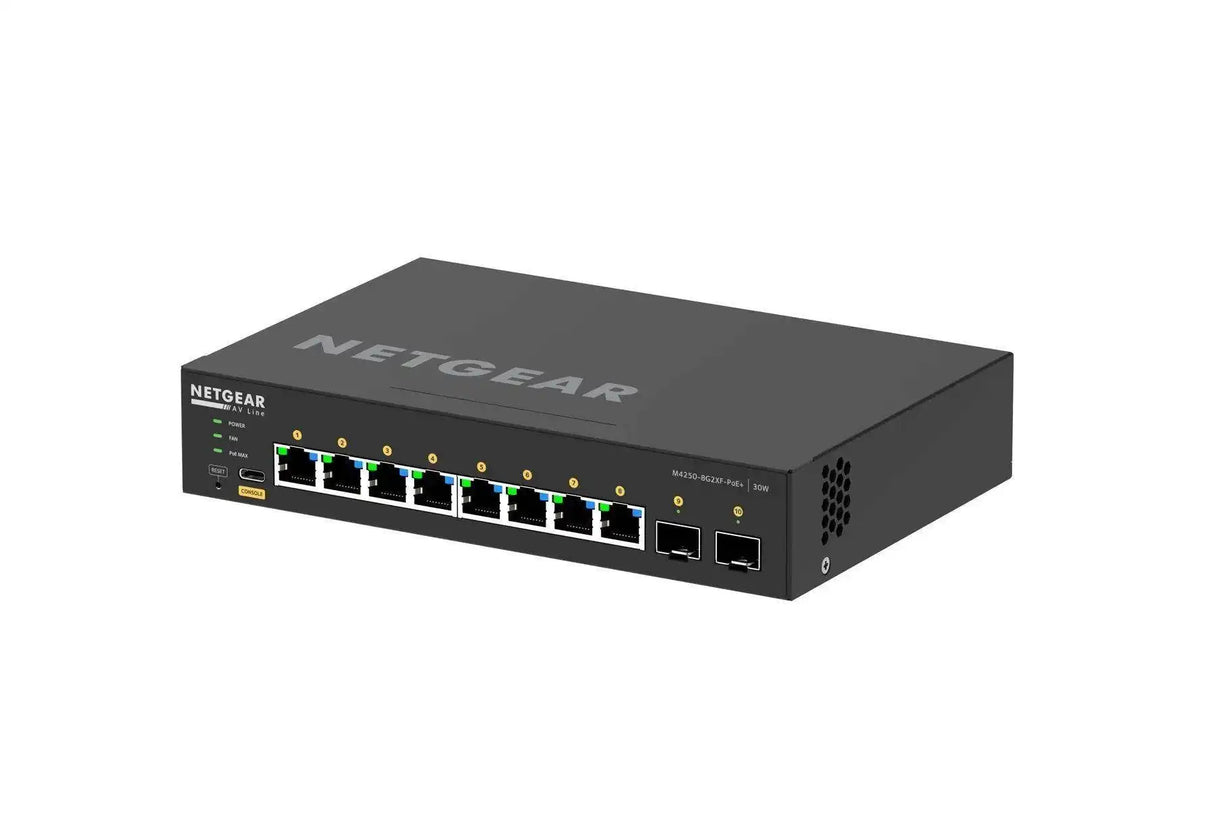

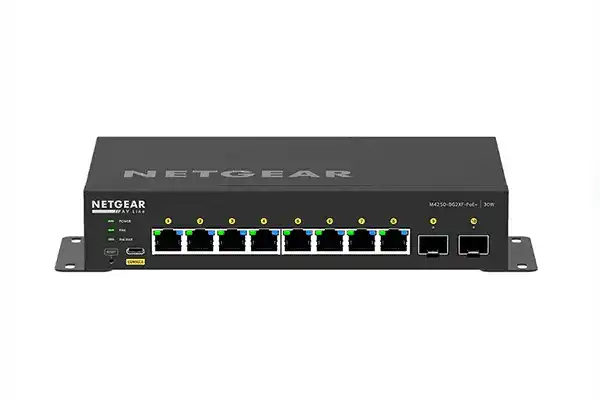

Netgear GSM4210PX-100NAS M4250-8G2XF-POE+ FULLY MANAGED DESKTOP SWITCH

Save 36%
Netgear SKU: GSM4210PX-100NAS
No reviews

Price:
Sale price$899.00 Regular price$1,403.93

Description

General Information

Manufacturer:   Netgear, Inc
Manufacturer Part Number:   GSM4210PX-100NAS
Manufacturer Website Address:   www.netgear.com
Brand Name:   Netgear
Product Line:   AV Line
Product Series:   M4250
Product Model:   GSM4210PX
Product Name:   AV Line M4250 GSM4210PX Ethernet Switch
Marketing Information:

The NETGEAR AVLine M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground upto support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.

NETGEAR M4250 series key features:

  • Ranges from 8 to 48 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
  • Uplink options include1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
  • Also includes12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
  • Rack moun tmodels designed for a clean integration with traditional, rack-mounted, AV equipment
  • The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
  • Reversed mounting is possible when ports are desired on the front of the rack
  • A second pair of rack mount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
  • Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totaly fanless operation
  • Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting option soutside the rack as well
  • New!M4250 desktop versions for use outside of the AV racks in conference rooms, mobile studios, on the wall, under a table or behind a screen

NETGEAR M4250 series AV software features:

  • Pre-configured for audio and video over IP out of the box, the M425 switches enable encoders and decoders to be connected with zero configuration
  • When more configuration is required, an AV web-based GUI is available
  • This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
  • For audio, profiles for Dante, Q-SYS and AES67 are built-in, as well as an AVB profile (AVB license sold separately)
  • For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE
  • Other AV CODECs and manufacturers are supported as well as audio/video/control mixed profiles
  • To further simplify star deployments, NETGEAR IGMP Plus™ brings multicast automation between all M4250 switches,and with M4300/M4500
  • With Auto-Trunk and Auto-LAG, simply connect M4250 switches together and you are done!




Product Type:   Ethernet Switch

Technical Information

Features:   Fanless

Interfaces/Ports

Total Number of Network Ports:   8
Uplink Port:   Yes
Network (RJ-45):   Yes
Port/Expansion Slot Details:   2 x SFP+ Expansion Slot
Port/Expansion Slot Details:   8 x Gigabit Ethernet PoE+

Media & Performance

Media Type Supported:   Optical Fiber
Media Type Supported:   Twisted Pair
Ethernet Technology:   10 Gigabit Ethernet
Network Technology:   10GBase-T
Network Technology:   10GBase-X

I/O Expansions

Number of Total Expansion Slots:   2
Expansion Slot Type:   SFP+
Number of SFP+ Slots:   2

Network & Communication

Layer Supported:   3
Networking Standards:   IEEE 802.1ak
Networking Standards:   IEEE 802.1as
Networking Standards:   IEEE 802.1AX
Networking Standards:   IEEE 802.1Qat
Networking Standards:   IEEE 802.1Qav
Networking Standards:   IEEE 802.3ad
Networking Standards:   IEEE 802.3af
Networking Standards:   IEEE 802.3at
Networking Standards:   IEEE 802.3az
Networking Standards:   IEEE 802.3bt

Management & Protocols

Manageable:   Yes

Power Description

PoE (RJ-45) Port:   Yes
PoE Budget:   220 W
Power Source:   Power Adapter

Physical Characteristics

Form Factor:   Desktop
Height:   1.6"
Width:   8.3"
Depth:   5.5"

Warranty

Limited Warranty:   Lifetime
