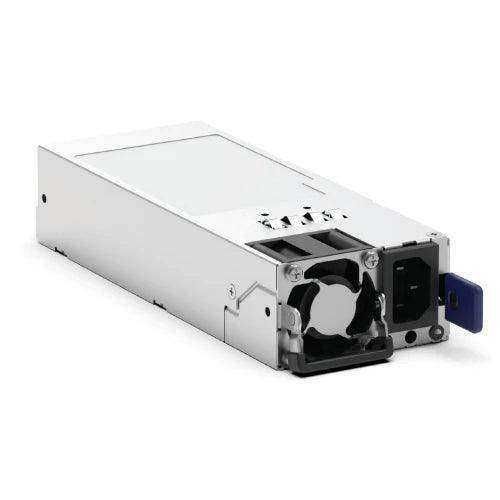

Netgear APS920W-100NES Modular PSU (920W)

Product Overview

The NETGEAR APS920W-100NES is a 920W modular power supply unit for the M4350 series AV-over-IP switches. It is the higher-output PSU option for supported M4350 chassis, seating into an available power bay to add redundancy or raise the available power budget for high-PoE configurations. With a 110V-240V AC input range, it supports North American and international rack deployments. The unit is a compact field-installable module sized for high-density commercial AV installations.

Product Description

This modular PSU is specified by NETGEAR as a power supply unit for the M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, and M4350-24F4V switches. At 920W it provides additional headroom over the 600W option, which is useful on chassis driving heavier PoE loads such as dense camera, access point, or AV-over-IP endpoint deployments. Installing a second supply gives the chassis 1+1 power redundancy, so a single PSU failure will not interrupt connected streams or powered devices. The unit uses a standard C14 inlet and accepts 110V-240V AC input, delivering up to 920W output at 110/220V AC. The compact module measures 73mm wide, 185mm deep, and 39.8mm high, weighing 0.937kg, and ships with an installation guide.

Key Features

• 920W modular supply — Delivers up to 920W output at 110/220V AC for M4350 series switches.
• High-PoE headroom — Higher output than the 600W option for chassis driving dense PoE loads.
• Wide AC input — Accepts 110V-240V AC through a standard C14 connector for domestic and international power.
• 1+1 redundancy — A second unit provides redundant power so a single PSU failure will not drop the switch.
• Compact module — Measures 73 x 185 x 39.8mm and weighs 0.937kg, sized for high-density M4350 chassis.
• 5-year hardware warranty — Backed by a NETGEAR limited 5-year hardware warranty.

Typical Applications

• Redundant (1+1) power for M4350 series chassis switches in AV-over-IP deployments
• PoE budget expansion on supported M4350 chassis driving dense camera, AP, or AV endpoint loads
• Field PSU replacement or spares for high-availability AV racks

Technical Specifications

Specifications are sourced from NETGEAR product documentation and are subject to change. Verify PSU compatibility against your specific switch model before ordering.

Frequently Asked Questions

Which switches accept the APS920W-100NES?
NETGEAR specifies this PSU for the M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, and M4350-24F4V switches. Confirm your model before ordering.

How does it differ from the 600W M4350 PSU?
It fits the same M4350 models but delivers up to 920W, providing more headroom for chassis with heavier PoE loads.

Can I run two supplies for redundancy?
Yes. A second supply provides 1+1 redundancy so the switch keeps running if one PSU fails.

What power input does it use?
It accepts 110V-240V AC through a standard C14 connector and delivers up to 920W output at 110/220V AC.

What warranty is included?
It is backed by a NETGEAR limited 5-year hardware warranty.
