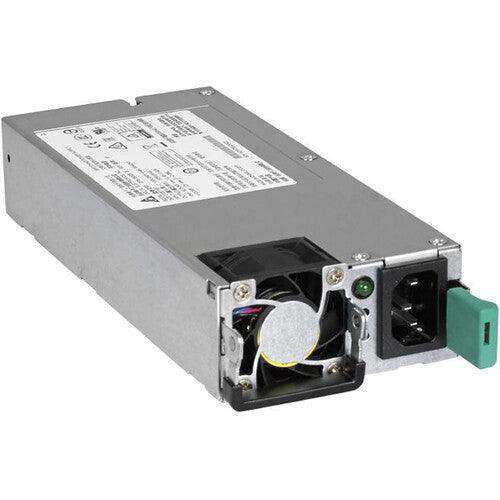

Netgear APS550W-100NES 100-240VAC Power Supply Unit (550W)

Product Overview

The NETGEAR APS550W-100NES is a 550W hot-swappable modular power supply unit built for the M4300 series PoE switch chassis. It installs into a free PSU bay on supported M4300 PoE models to add redundancy or expand the available power budget. Operating across a 100-240VAC input range, it suits North American and international AV rack deployments without configuration changes. The unit ships as a field-installable module for high-availability commercial AV and networking environments.

Product Description

This modular PSU is designed specifically as an additional or replacement power supply for the M4300-28G-PoE+ (GSM4328PA) and M4300-52G-PoE+ (GSM4352PA) switches. With a second unit installed, the switch gains 1+1 power redundancy so that a single supply failure does not interrupt connected AV-over-IP endpoints, PoE cameras, or access points. The same second supply can also raise the total PoE budget available to powered devices on supported chassis. The supply uses a standard C14 inlet and accepts 110V-240V AC input, delivering up to 575W output at 110/220V AC. As a hot-swappable module, it can be serviced without powering down the switch on chassis that support online PSU replacement. This makes it a practical spare to keep on hand for production AV racks where downtime is not acceptable.

Key Features

• 550W modular supply — Hot-swappable module rated up to 575W output at 110/220V AC for M4300 PoE switches.
• Wide AC input — Accepts 110V-240V AC through a standard C14 connector for domestic and international power.
• 1+1 redundancy — A second unit provides redundant power so a single PSU failure will not drop the switch.
• PoE budget expansion — Adding a supply increases the power available to PoE endpoints on supported chassis.
• Field serviceable — Hot-swap design allows replacement without taking the switch offline on chassis that support it.
• 5-year hardware warranty — Backed by a NETGEAR limited 5-year hardware warranty.

Typical Applications

• Redundant (1+1) power for M4300-28G-PoE+ and M4300-52G-PoE+ chassis switches
• PoE budget expansion on supported M4300 PoE switches feeding cameras, APs, and AV-over-IP endpoints
• Field PSU replacement or spares for high-availability AV racks

Technical Specifications

Specifications are sourced from NETGEAR product documentation and are subject to change. Verify PSU compatibility against your specific switch model before ordering.

Frequently Asked Questions

Which switches accept the APS550W-100NES?
NETGEAR lists this PSU as an additional supply for the M4300-28G-PoE+ (GSM4328PA) and M4300-52G-PoE+ (GSM4352PA) PoE switches. Confirm your model before ordering.

Can I run two supplies for redundancy?
Yes. Installing a second supply provides 1+1 redundancy so the switch keeps running if one PSU fails, and can also expand the available PoE budget on supported chassis.

Is it hot-swappable?
It is a hot-swappable module and can be replaced without powering down the switch on chassis that support online PSU service.

What power input does it use?
It accepts 110V-240V AC through a standard C14 connector and delivers up to 575W output at 110/220V AC.

What warranty is included?
It is backed by a NETGEAR limited 5-year hardware warranty.
