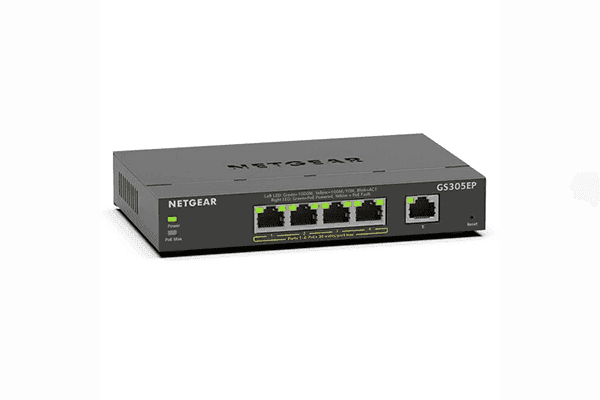

Netgear GS305EP 5-Port Gigabit PoE+ Compliant Managed Switch

Netgear SKU: GS305EP-100NAS
No reviews
Price:
$71.99 $124.78

Description

Quickly expand your small home or business network to support computers, storage, smart TVs, and more with the Netgear GS305EP 5-Port Gigabit PoE+ Compliant Managed Switch. Featuring five Gigabit Ethernet ports, four of which are PoE+ compliant with a 63W budget, this compact managed switch is designed to grow your network with support for powered devices such as IP cameras, VoIP phones, and access points. Its 10 Gb/s switching capacity helps to ensure smooth data transfers while support for VLAN traffic segmentation helps to secure access for connected devices. Simply connect the switch to your router and use the web-based configuration utility to get set up. No additional hardware device or software drivers are required. Other features include QoS traffic prioritization for optimized audio and video communications and DoS attack prevention. The GS305EP has a fanless design with a metal chassis that allows it to operate silently when mounted onto a desktop or wall so that it won't disturb your working environment.

 Power over Ethernet Featuring four PoE+ compliant ports with a 63W budget, the GS305EP can transfer both power and data with compatible devices. The integrated power management system allows you to enable or disable power for each port, limit the PoE power per port, and more. The PoE power stays on during firmware updates to provide an uninterrupted experience. VLAN Support Configure up to 64 VLANS to separate traffic and permissions into different groups. Reliable Multicasts The GS305EP supports up to 128 multicast groups, with features such as IGMP Snooping, rate limiting for bandwidth allocation, and Quality of Service (QoS) traffic prioritization to help ensure smooth video and audio traffic. Additionally, unknown multicasts can be blocked. Security Features Auto DoS (Denial-of-Service) attack prevention, Storm Control, Port Mirroring, and other features help to protect your network from attacks. Diagnostics Quickly troubleshoot connections with the cable testing utility. Link Aggregation Combine up to two ports using link aggregation to enhance the bandwidth and support mult-Gig connections to compatible devices.
  • 5 x Gigabit Ethernet Ports
  • 4 x PoE+ Compliant Ports
  • 10 Gb/s Switching Capacity
  • Desktop & Wall Mountable Design
  • 63W Power Budget
  • Web-Browser-Based Management
  • VLAN Support
  • Comprehensive Security Features
  • Silent, Passive Cooling
  • Plug-and-Play

Netgear GS305EP-100NAS Specs

 Interfaces
Inputs/Outputs 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring
Queuing Weighted Round Robin (WRR)
Transmission Method Store-and-Forward
Jumbo Frames Support 9216 Bytes
MAC Address Table Size 4K
Multicast Groups 128
VLAN Groups 64
Security
Security Features DoS Attack Prevention
Kensington Lock Support
Storm Control
Standards
Supported IEEE Standards 802.1p, 802.1q, 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x
Performance
Switching Bandwidth 10 Gb/s (Non-Blocking)
Packet Buffer 192 kB
Electrical
PoE Power Budget 63 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 90%
Storage Temperature -4 to 158°F / -20 to 70°C
Storage Humidity 95%
Operating Altitude 10,000' / 3048 m
Storage Altitude 10,000' / 3048 m
General
Cooling System Passive
Mean Time Between Failures (MTBF) 1,164,104 Hours
Material of Construction Metal
Indicator Lights Link/Activity/Speed, PoE, System/Power
Dimensions 6.2 x 4 x 1.1" / 158 x 101 x 27 mm
Weight 0.86 lb / 0.39 kg
Packaging Info
Package Weight 2.285 lb
Box Dimensions (LxWxH) 10.7 x 6.5 x 3.4"
