Sharp NP43ZL – 2.99-5.93:1 Long-Throw Zoom Lens for NP-PA3 Series Laser Projectors
Sharp NP43ZL – 2.99-5.93:1 Long-Throw Zoom Lens for NP-PA3 Series Laser Projectors is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sharp NP43ZL – 2.99-5.93:1 Long-Throw Zoom Lens for NP-PA3 Series L...
Product Overview

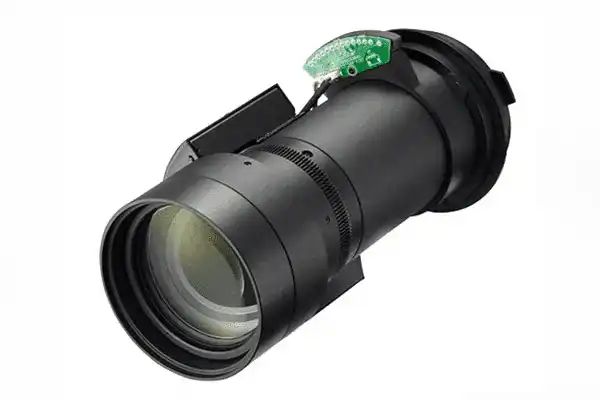

The Sharp NP43ZL is a motorized long-throw zoom lens with a 2.99-5.93:1 throw ratio and 2.0x zoom ratio, compatible with the NP-PA653U, NP-PA653UL, NP-PA803U, NP-PA803UL, NP-PA853W, and NP-PA903X PA3 series installation and laser projectors. This lens covers long projection distances for large auditoriums, houses of worship, and lecture halls where standard-throw lenses cannot achieve the required image size from the available ceiling mount position. Motorized zoom and focus allow remote adjustment after installation.
Product Description
The NP43ZL provides the long-throw option for the PA3 series projector platform, with motorized power zoom and power focus for remote operation. At 2.99-5.93:1 with a 2.0x zoom ratio, the lens positions the projector between approximately 21.5 and 42.7 feet from a 100-inch-wide screen—covering venues from mid-size auditoriums to large sanctuaries and lecture halls. Motorized zoom and focus allow adjustments to be made from the projector remote after ceiling installation, avoiding the need for ladder access during commissioning or image tuning. Screen size support spans 50 to 500 inches diagonal.
The NP43ZL is sold separately from the compatible projector bodies. Note that this lens is a special-order item with an expected availability of 7-14 business days.
Key Features
- 2.99-5.93:1 Throw Ratio — Long-throw range for large venues requiring extended projection distances.
- 2.0x Motorized Zoom — Power zoom and focus for remote adjustment after ceiling installation.
- 50-500 Inch Screen Support — Covers room sizes from mid-size meeting spaces to large auditoriums.
- PA3 Series Compatibility — Works with NP-PA653U/UL, NP-PA803U/UL, NP-PA853W, and NP-PA903X projectors.
- Both Lamp and Laser PA3 Models — Compatible with both lamp-based and UL laser variants of the PA3 platform.
Typical Applications
- Large auditorium and lecture hall
- House of worship main sanctuary projection
- Government facility large-format display
- Higher education large lecture hall
- Multi-purpose venue with deep room geometry
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP43ZL |
| Throw Ratio | 2.99-5.93:1 |
| Zoom Ratio | 2.0x |
| Zoom | Motorized (Power Zoom) |
| Focus | Motorized (Power Focus) |
| Projection Size | 50-500 inches diagonal |
| Weight | 3.9 lb / 1.8 kg |
| Compatible Projectors | NP-PA653U/UL/UL-R/U-R, NP-PA803U/UL/UL-R/U-R, NP-PA853W/W-R, NP-PA903X/X-R |
| Availability | Special Order (7-14 business days) |
Frequently Asked Questions
- Q: Which projectors is the NP43ZL compatible with?
- The NP43ZL is compatible with the NP-PA653U, NP-PA653UL (and -R variants), NP-PA803U, NP-PA803UL (and -R variants), NP-PA853W, and NP-PA903X PA3 series projectors.
- Q: Is this lens motorized?
- Yes. The NP43ZL includes power zoom and power focus for remote motorized adjustment after installation.
- Q: Is the NP43ZL a special-order item?
- Yes. The NP43ZL typically has an expected availability of 7-14 business days from order placement.
- Q: Where can I purchase the NP43ZL?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
