Sharp NP21ZL-4K – 5.25-8.28 Long-Throw Zoom Lens for NP-PX1005QL
Product Overview

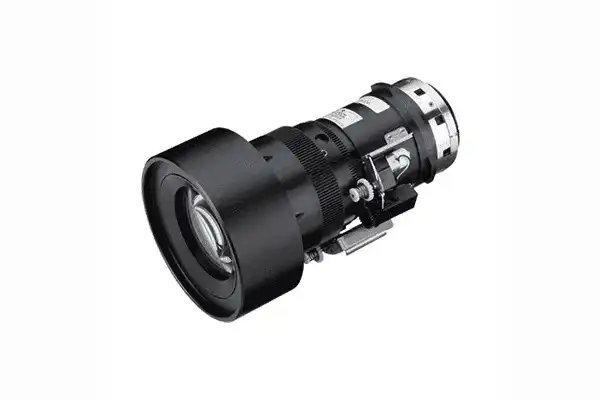

The Sharp NP21ZL-4K is a motorized long-throw zoom lens with a 5.25-8.28:1 throw ratio and lens memory, designed for the NP-PX1005QL 4K UHD professional installation projector. This is the longest-throw lens in the NP-PX1005QL lens family, enabling projection from extreme distances in large auditoriums, arenas, and deep rear projection booth setups. Motorized zoom, focus, and lens shift with +50%/-30% vertical and +20%/-10% horizontal range provide complete remote optical alignment after installation.
Product Description
The NP21ZL-4K extends the NP-PX1005QL lens lineup beyond the NP19ZL-4K (2.20-3.67:1), covering ultra-long projection distances from 5.25:1 to 8.28:1. At a 100-inch-wide screen, the NP21ZL-4K positions the projector approximately 37.8 to 59.6 feet away—covering the deepest auditorium configurations, stadium installations, and long-distance projection booth scenarios. The 1.58x zoom ratio allows meaningful image size adjustment without physical projector relocation.
The NP21ZL-4K is sold separately from the NP-PX1005QL projector body and features a bayonet mount for tool-free exchange.
Key Features
- 5.25-8.28:1 Throw Ratio — Longest-throw option for NP-PX1005QL; covers extreme projection distances in large venues.
- Motorized Zoom and Focus — Remote optical control for commissioning at difficult-to-access ceiling or booth positions.
- Motorized Lens Shift — +50%/-30% vertical, +20%/-10% horizontal optical offset without keystone distortion.
- Lens Memory — Stores lens position presets for rapid recall in multi-use environments.
- 4K Optimized Optics — Designed for the NP-PX1005QL to maintain full 4K optical quality at extreme throw distances.
- Bayonet Mount — Tool-free lens exchange for fast service and lens-type changes in the field.
Typical Applications
- Large auditorium and concert hall rear booth
- Stadium and arena large-screen display
- House of worship with long-distance balcony projection
- Government and command center
- Multi-purpose venue with extreme projection depth
Technical Specifications
| Specification | Value |
|---|---|
| Model | NP21ZL-4K |
| Throw Ratio | 5.25-8.28:1 |
| Zoom | Motorized |
| Focus | Motorized |
| Lens Shift (Vertical) | -30% to +50% |
| Lens Shift (Horizontal) | -10% to +20% |
| Lens Memory | Yes |
| Projection Size | 40-500 inches diagonal |
| Compatible Projectors | NP-PX1005QL-B, NP-PX1005QL-W (and -18, -R variants) |
| Mount Type | Bayonet |
Frequently Asked Questions
- Q: Which projector is the NP21ZL-4K compatible with?
- The NP21ZL-4K is designed exclusively for the NP-PX1005QL 4K UHD professional installation projector and its variants.
- Q: When should I use the NP21ZL-4K instead of the NP19ZL-4K?
- Use the NP21ZL-4K when the projector must be positioned at a throw ratio above 3.67:1. The NP21ZL-4K (5.25-8.28:1) is the correct choice for large-venue rear booth and stadium configurations.
- Q: Is this lens sold with the projector?
- No. The NP21ZL-4K is sold separately from the NP-PX1005QL projector body.
- Q: Where can I purchase the NP21ZL-4K?
- Available at Creation Networks, an authorized Sharp commercial AV reseller.
