Sharp LED-FE009i2-104 – 104" Ultra-Wide FHD 0.95mm LED Video Wall Bundle

Product Overview

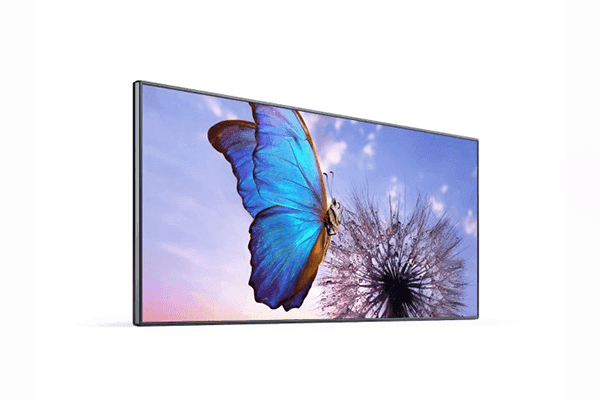

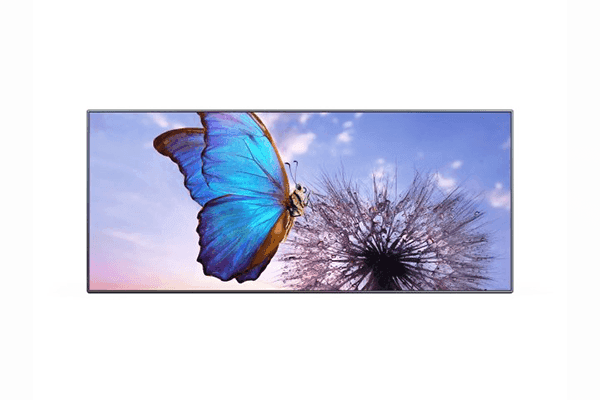

The Sharp LED-FE009i2-104 is a 104-inch ultra-wide direct-view LED video wall bundle designed specifically for panoramic meeting room and visualization environments. With a 21:9 aspect ratio and 2560x1080 ultra-wide Full HD resolution, it delivers an immersive wide-canvas experience suited for multi-source video conferencing, data visualization, and collaborative workspaces where a standard 16:9 format would leave valuable horizontal real estate unused. At 0.95mm pixel pitch, it maintains fine detail at short viewing distances — ideal for conference rooms and boardrooms with as little as 3 feet of audience distance.

Product Description

The LED-FE009i2-104 uses Sharp's 0.95mm FE-Series 4-in-1 IMD modules arranged in a 4x3 cabinet configuration to produce a 104-inch ultra-wide 21:9 display. Brightness reaches 600 cd/m² peak with a 5000:1 contrast ratio and 140°/140° viewing angles. Refresh rate supports up to 3840 Hz for flicker-free rendering of video content. The bundle includes 12 LED cabinets (96 pixel cards), LED controller, overframe kit (4x3), pixel card removal tool, spare parts kit, and wall mount (4x3) — all hardware needed for installation is provided. The 4-in-1 IMD diode design uses cableless connectors for both data and power, with a flush rear profile that allows minimal gap installation close to the wall. Front serviceability means all maintenance is accessible from the face of the display without rear access panels. The installed system dimensions measure 2,472 x 1,066 x 82 mm (approximately 97 x 42 x 3.2 inches), weighing 115.6 kg (255 lbs).

Key Features

• 21:9 Ultra-Wide Format — Panoramic 2560x1080 canvas enables multi-source video conferencing layouts, split-screen data displays, and wide-format visualizations not possible on 16:9 configurations.
• 0.95mm Pixel Pitch — Fine-pitch 4-in-1 IMD design delivers sharp detail at close viewing distances starting at 3 feet.
• 104-Inch Seamless Display — Bezel-free, gap-free continuous LED surface at a size suitable for mid-size conference rooms.
• 600 cd/m² Peak Brightness — High-output LED modules maintain visibility in ambient-lit meeting spaces.
• 5000:1 Contrast Ratio — Black-body IMD diode design produces accurate dark levels and vivid highlights.
• 140°/140° Viewing Angles — Wide-angle consistency for conference room seating arrangements.
• Up to 3840 Hz Refresh Rate — Flicker-free video rendering for presentations and live content.
• Cableless Data and Power Connectors — Internal cabling reduces installation complexity and improves long-term reliability.
• Front-Serviceable, Hot-Swap Pixel Cards — Maintenance without rear wall access; pixel cards replaceable during live operation.
• Complete Bundle — 12 LED cabinets, 96 pixel cards, controller, overframe kit (4x3), wall mount (4x3), spare parts, and removal tool included.
• 100,000-Hour LED Lifetime — Long-life industrial components for permanent installation.
• 16-Bit Color / 281 Trillion Colors — Accurate wide-gamut rendering with adjustable color temperature (3000K–9500K).

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Government space
• Multi-purpose room
• Lobby display

Technical Specifications

Frequently Asked Questions

Why choose a 21:9 ultra-wide format over a standard 16:9 video wall?
The 21:9 format provides significantly more horizontal workspace, enabling side-by-side content layouts for multi-source video conferencing, data dashboards, or presentation plus annotation workflows. It is particularly effective in conference rooms where two or three content streams need simultaneous display without switching.

What is the minimum viewing distance for this display?
At 0.95mm pixel pitch, the recommended minimum viewing distance is approximately 3 feet. This makes the 104-inch ultra-wide format practical even in mid-size meeting rooms with limited depth.

Does the bundle include installation?
No. All hardware components are included, but installation labor is not. Contact Creation Networks for installation services.

What inputs does the LED controller support?
1x DisplayPort and 1x HDMI.

Is the display serviceable from the front?
Yes. All modules and pixel cards are front-accessible. Pixel cards are also hot-swappable without powering down.
