Sharp LED-E012i-217 – 217" E Series UHD dvLED Video Wall Kit - Discontinued

Product Overview

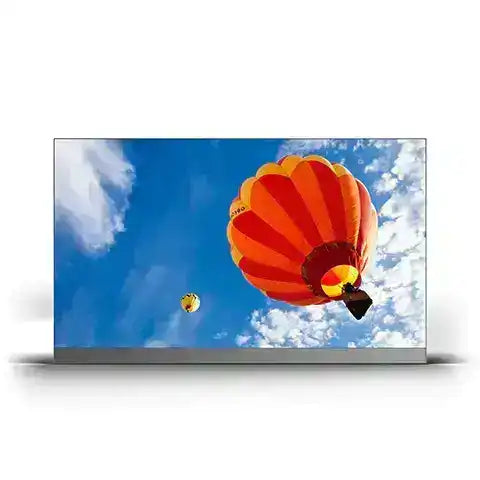

The Sharp LED-E012i-217 is a 217-inch UHD direct view LED video wall kit engineered for boardrooms, auditoriums and large commercial meeting spaces that need a single, bezel-free 4K canvas. Built on Sharp/NEC's E Series 1.25mm pixel pitch LED modules, this all-in-one dvLED display kit delivers 3840x2160 resolution at 600 cd/m2 brightness with everything required for a complete LED video wall installation in one SKU. For integrators and facilities teams evaluating a large format LED display for corporate or education deployment, the LED-E012i-217 packages modules, controller, power distribution and mounting structure into a predictable, front-serviceable system.

Product Description

The E Series gives cost-conscious buyers commercial-grade dvLED imaging backed by the service and support expected from the Sharp/NEC brand. The 1.25mm fine pixel pitch produces a sharp, uniform UHD image at typical boardroom and auditorium viewing distances, with a refresh rate up to 3840 Hz that keeps content clean on camera for broadcast and hybrid meeting environments. The complete LED video wall kit includes the LED modules, power bar, LED controller, mounting structure, overframe trim kit and spare parts, which simplifies specification and shortens the installation timeline for AV integrators.

Front-serviceable, hot-swappable pixel cards can be replaced without powering down the wall, allowing the display to be installed flush against a wall in spaces where rear access is impossible. At only 29mm deep, the thin and lightweight cabinet design supports ADA-compliant installations in corridors, lobbies and meeting spaces. Connectivity covers HDMI, DVI-D and 3G-SDI inputs with LAN, RS-232 and USB external control, so the wall integrates cleanly with commercial AV control systems and video processors. Sharp/NEC supports the E Series with planning, design and post-installation maintenance programs, giving procurement teams a single accountable vendor for the life of the display.

Note: Price does not include installation. Contact Creation Networks for turnkey design, installation and commissioning pricing.

Key Features

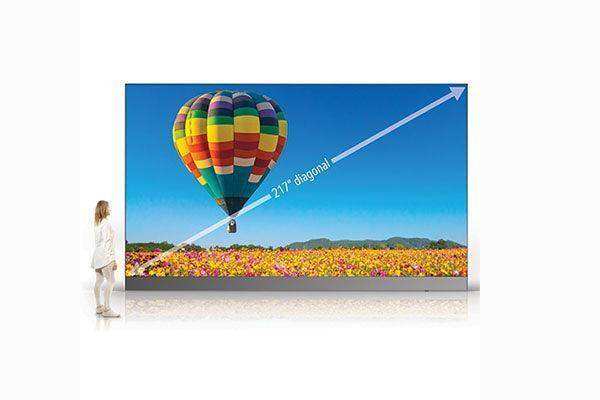

• 217" UHD Resolution — A single 3840x2160 canvas with 16:9 aspect ratio replaces tiled LCD video walls with a completely seamless image.
• 1.25mm Fine Pixel Pitch — Delivers crisp text and detailed content at close viewing distances typical of boardrooms and conference rooms.
• Complete Video Wall Kit — Includes LED modules, power bar, LED controller, mounting structure, overframe kit and spare parts for a predictable commercial deployment.

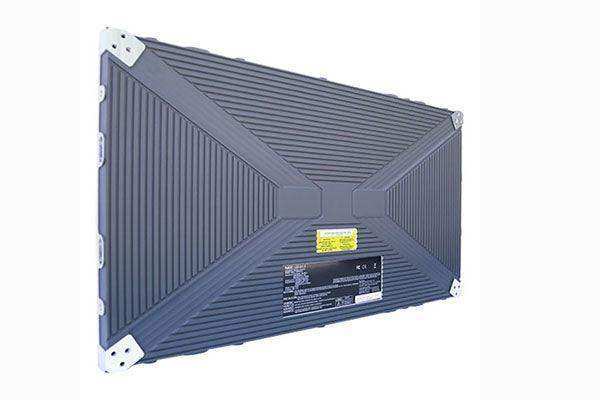

• Front-Serviceable Design — All modules are accessed from the front, enabling flush wall mounting where rear access is unavailable.

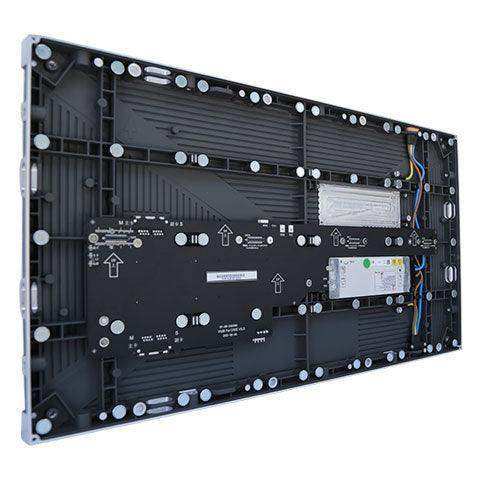

• Hot-Swappable Pixel Cards — Pixel cards can be replaced without turning the display off, minimizing downtime in always-on environments.
• High Refresh Rate — Up to 3840 Hz refresh keeps the image flicker-free on camera for broadcast studios and hybrid meetings.

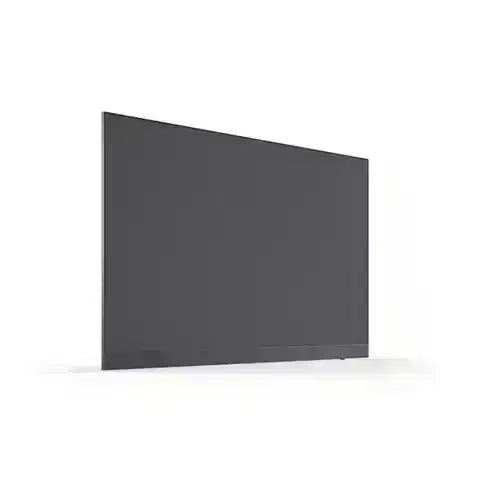

• ADA-Friendly Slim Profile — At 29mm (1.1 in.) deep, the wall meets ADA protrusion requirements in public circulation spaces.
• Pro AV Connectivity — HDMI, DVI-D and 3G-SDI inputs plus LAN, RS-232 and USB control integrate with commercial AV control systems.
• 100,000-Hour Lifetime — Long-life LEDs support years of continuous digital signage and meeting room operation.

Typical Applications

• Boardroom
• Auditorium
• All-hands room
• Commercial meeting space
• Broadcast studio
• Government space
• Training room

Technical Specifications

Frequently Asked Questions

Does the LED-E012i-217 kit include everything needed for installation?

Yes. The kit ships with the LED modules, power bar, LED controller, mounting structure, overframe trim kit and spare parts. Professional installation is required and is not included in the product price; Creation Networks can quote turnkey design, installation and commissioning.

What inputs and control options does this dvLED video wall support?

The included LED controller accepts HDMI, DVI-D and 3G-SDI sources, with LAN, RS-232 and USB available for integration with commercial AV control systems such as room schedulers and centralized monitoring platforms.

Can the display be serviced after it is mounted flush to a wall?

Yes. The LED-E012i-217 is fully front-serviceable, and pixel cards are hot-swappable, so individual modules can be replaced from the front without powering down the wall or requiring rear access.

Is a 1.25mm pixel pitch fine enough for a boardroom?

Yes. A 1.25mm pitch supports comfortable viewing at roughly 1.25 meters (about 4 feet) and beyond, which suits boardrooms, all-hands rooms and auditoriums where viewers sit relatively close to a 217-inch image.

What power and structural provisions should I plan for?

Plan electrical service for up to 8000 W maximum draw (3776 W typical) and a wall or structure rated for the 665.6 lb. display plus mounting hardware. Creation Networks can coordinate site surveys with your electrician and general contractor.

What warranty and support does this Sharp/NEC LED kit carry?

The E Series is covered by Sharp/NEC's commercial dvLED warranty program with available planning, installation and post-installation maintenance support. Contact Creation Networks for current warranty terms and extended service options.
