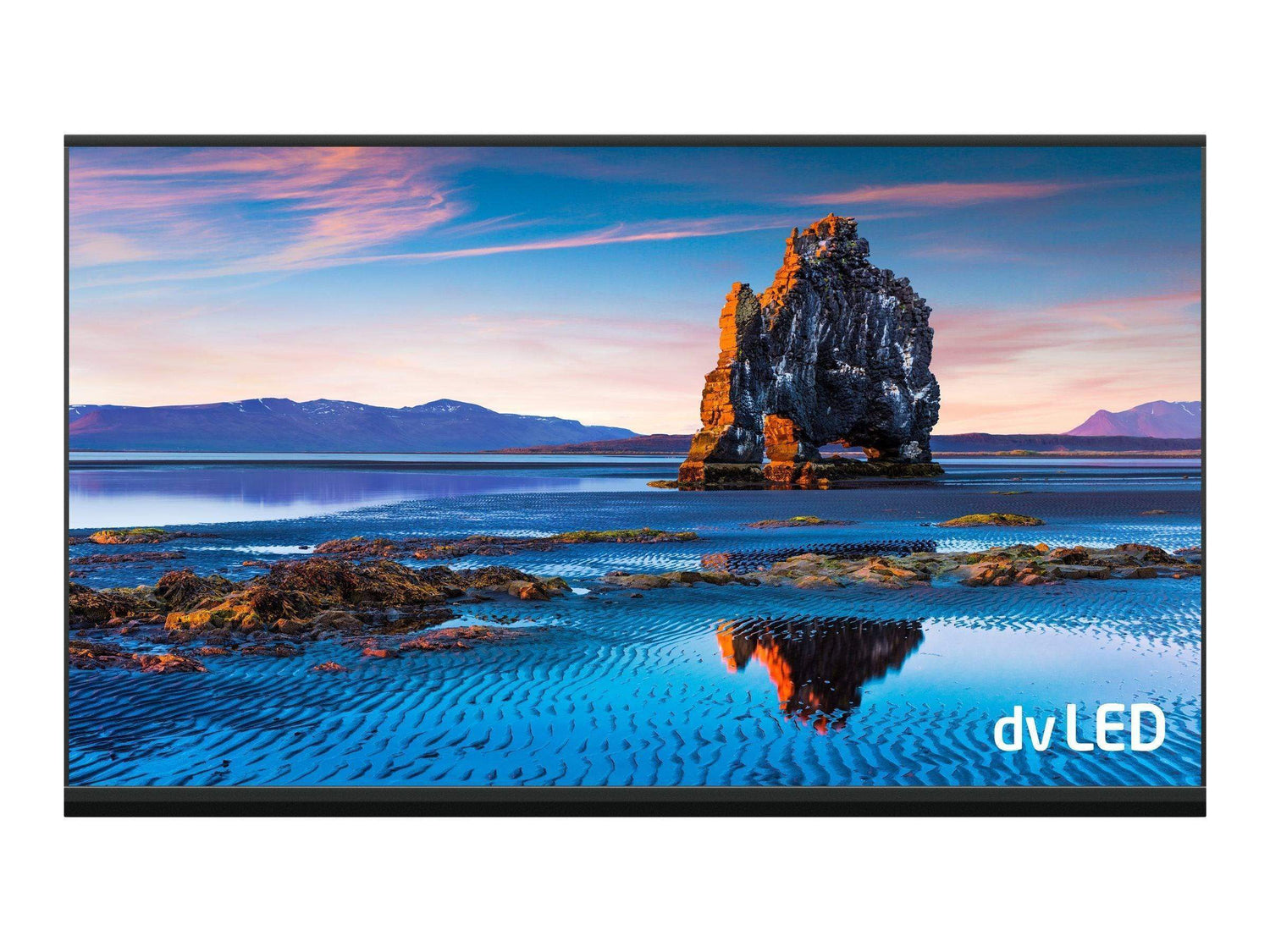

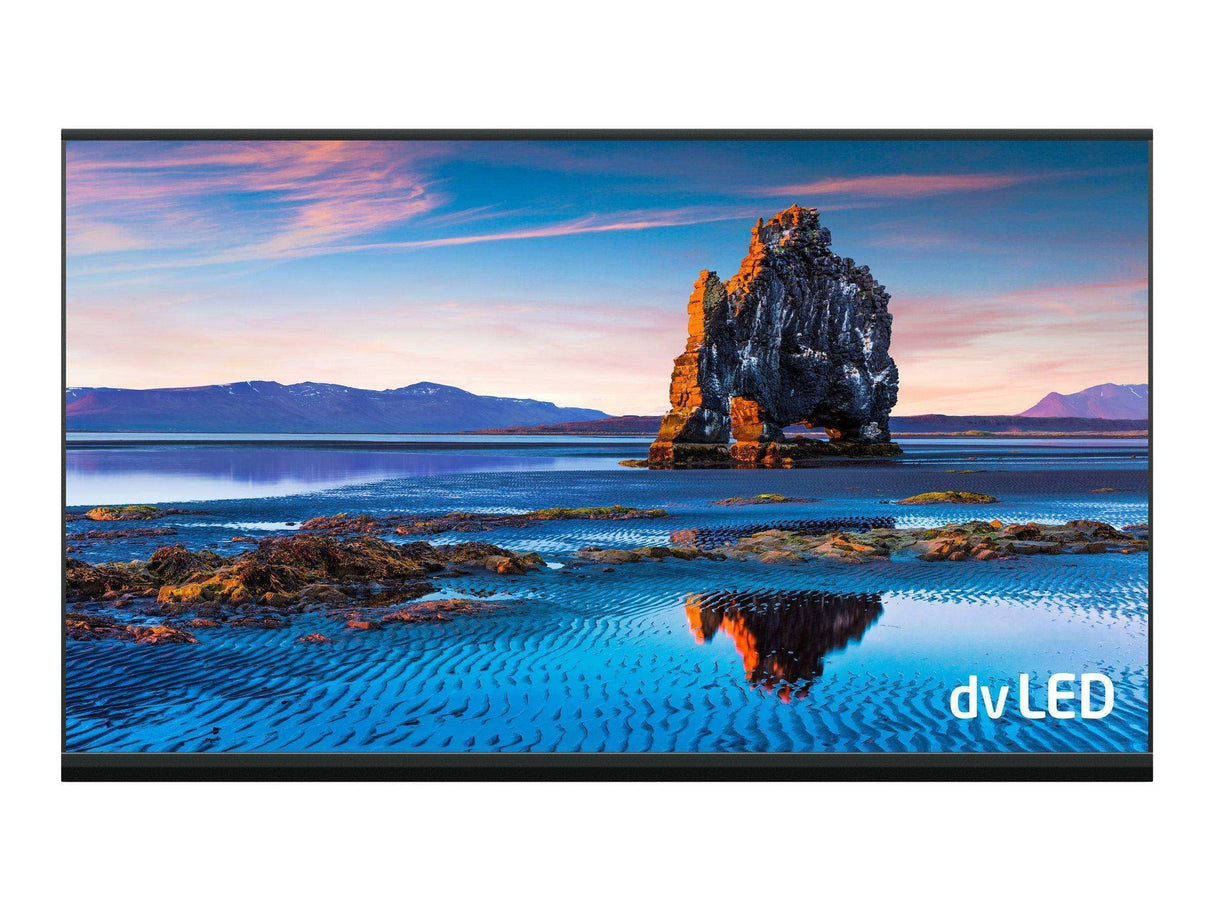

NEC 137" FE-Series HD 1.58 mm LED Video Wall Kit - LED-FE015I2-137

NEC SKU: LED-FE015I2-137
No reviews
Price:
$65,699.00

Description

The NEC direct view indoor LED FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today's demanding applications. This 137" Full HD kit is built with NEC's 1.58mm LED-FE015i2 module designed to deliver impressive content visualization and is ideal for viewing from 3 to 8 feet away. Boardrooms, auditoriums, retail and airport signage, situational awareness, broadcast and museums are just some of the applications where the NEC FE Series is designed to be integrated. The FE Series is engineered with Multi-Color LEDs that deliver excellent imaging at a low cost and have no external cables required for installation. The front serviceable design allows easy access and quick maintenance when needed. NEC offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.
  • 137” diagonal screen size
  • Full HD (1920x1080) resolution with a refresh rate of >= 3840 Hz
  • Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
  • Front serviceable modules allowing for installation in difficult to access areas
  • Pixel cards are hot-swappable and can be replaced without turning the display off
  • Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requirements
  • Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity
  • To learn more about NEC’s FE Series, click here

Display

Panel Technology Direct View LED Viewable Image Size 137 in.
Aspect Ratio 16:9 Native Resolution 1920x1080
Module Resolution 384 x 216 Pixel Configuration 3-1 SMD (Black)
Pixel Pitch 1.58 mm Brightness (typical) 700 cd/m2
Brightness (maximum) 770 cd/m2 Contrast Ratio (typical) 4000:1
Viewing Angle (typical) 80/80 horizontal / 80/80 vertical Refresh Rate Up to 3840 Hz
Active Screen Area 119.5 x 67.5 in. / 3040 x 1710 mm Orientation Landscape
Dimming Capability 256 levels Color Processing Up to 16 bit
Displayable Colors 281 Trillion Color Temperature (Max) (°K) 3000
Color Temperature (Typical) (°K) 6500 Color Temperature (Min) (°K) 9500
Gamma (Max) 4.0 Gamma (Typical) 2.8
Gamma (Min) 1.0 Lifetime 100,000 hours

Signal Compatibility/Connectivity

External Control 1 x GenLock; 1 x LAN Input Terminals Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI External Control: RS232 / USB

Power Consumption (typical)

On 1425Watts Power Consumption (max) 3125 Watts
Power Consumption (min) 700 Watts

Physical Specifications

Dimensions (WxHxD) Without stand: 119.5 x 72 x 3.2 in. / 3040 x 1830 x 81 mm Weight Net Weight (without stand): 615.1 lbs. / 279 kg. Shipping: 1193 lbs / 541 kg Servicability: Front Service IP Level: IP20 Certifications:
  • CCC
  • CE
  • ETL
  • FCC Class A
  • RoHS

Environmental Conditions

Operating Temperature -4° to 104°F / -20° to 40°C Operating Humidity 10% to 80%
Storage Temperature -4° to 113°F / -20° to 45°C Storage Humidity 10% to 85%
Environment Indoor

Limited Warranty (parts & labor)

3 years

Accessories

Included
  • LED Controller
  • >
  • Overframe Kit (5x5)
  • Pixel Card Removal Tool
  • Power Bar
  • Spare Parts Kit
  • Wall mount (5x5)
 Optional See NEC Representative for additional accessories
