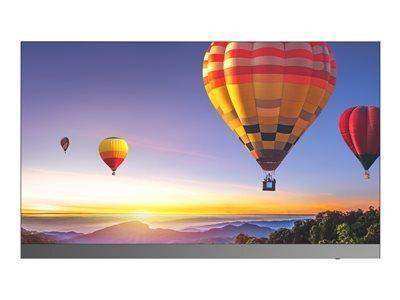

Sharp LED-FE012I2-110 – 110" FHD 1.26mm FE-Series LED Video Wall Kit
Sharp LED-FE012I2-110 – 110" FHD 1.26mm FE-Series LED Video Wall Kit is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sharp LED-FE012I2-110 – 110" FHD 1.26mm FE-Series LED Video Wa...
Product Overview
The Sharp LED-FE012I2-110 is a 110-inch Full HD direct-view LED video wall kit built on the FE-Series 1.26mm platform. It delivers 1920x1080 resolution across a seamless 16:9 canvas at 700 cd/m² typical brightness, with front-serviceable modules and a complete hardware bundle. At a lower price point than the FA-Series FA012i2-110, this kit is well-suited for boardrooms, conference rooms, training environments, and permanent digital signage installations where single-controller performance is sufficient and cost efficiency is a priority.
Product Description
The LED-FE012I2-110 uses 1.26mm FE-Series 3-1 SMD black pixel modules in a 4x4 cabinet configuration, producing 1920x1080 Full HD resolution across 110 inches. Brightness is rated at 700 cd/m² typical and 770 cd/m² peak, with a 4000:1 contrast ratio and 80°/80° viewing angles. Refresh rate reaches up to 3840 Hz. The 16-bit color processing engine supports 281 trillion displayable colors with adjustable gamma and color temperature from 3000K to 9500K. All modules are front-serviceable and pixel cards are hot-swappable. The complete bundle includes LED modules, single LED controller, power bar, 4x4 wall mount, 4x4 overframe kit, spare parts kit, and pixel card removal tool. At 3.2 inches installed depth, the system meets ADA clearance requirements for commercial wall-mounted displays. Net weight is 401 lbs (182 kg).
Key Features
- 110-Inch Full HD Canvas — 1920x1080 seamless 16:9 direct-view LED at 110 inches diagonal.
- 1.26mm Pixel Pitch — Optimal for viewing distances of 3 to 7 feet in conference and boardroom environments.
- 700 cd/m² Typical Brightness — 770 cd/m² peak for visibility in ambient-lit commercial spaces.
- 4000:1 Contrast Ratio — Black 3-1 SMD pixel design for accurate dark levels and color depth.
- 80°/80° Viewing Angles — Wide-angle uniformity for multi-row seating configurations.
- Up to 3840 Hz Refresh Rate — Flicker-free rendering for video presentations and dynamic data feeds.
- Front-Serviceable, Hot-Swap Pixel Cards — Maintenance without rear access; pixel cards replaceable during live operation.
- Hardware-Only Bundle — Single LED controller, power bar, 4x4 wall mount, overframe kit, spare parts, and tools included.
- 3.2" ADA-Compliant Depth — Slim installed depth for flush commercial wall integration.
- 100,000-Hour LED Lifetime — Long-life industrial LED components.
- 16-Bit Color / 281 Trillion Colors — Wide-gamut rendering with calibration flexibility.
Typical Applications
- Boardroom
- Conference room
- All-hands room
- Training room
- Lobby display
- Digital signage
Technical Specifications
| Spec | Value |
|---|---|
| Model | LED-FE012I2-110 |
| Screen Size | 110 inches diagonal |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Pixel Pitch | 1.26 mm |
| Pixel Configuration | 3-1 SMD (Black) |
| Module Resolution | 480 x 270 |
| Cabinet Configuration | 4 x 4 |
| Brightness (Typical) | 700 cd/m² |
| Brightness (Maximum) | 770 cd/m² |
| Contrast Ratio | 4000:1 |
| Refresh Rate | Up to 3840 Hz |
| Viewing Angle | 80° H / 80° V |
| Color Processing | 16-bit (281 Trillion colors) |
| Color Temperature Range | 3000K – 9500K |
| Dimming | 256 levels |
| LED Lifetime | 100,000 hours |
| Active Screen Area | 95.6 x 54 in. (2432 x 1368 mm) |
| Dimensions (WxHxD) | 95.6 x 58.6 x 3.2 in. (2432 x 1488 x 81 mm) |
| Net Weight | 401.3 lbs (182 kg) |
| Inputs | 1x HDMI, 1x DVI-D, 1x 3G-SDI |
| Control | 1x GenLock, 1x LAN, RS-232/USB |
| Power (Typical) | 912W |
| Power (Maximum) | 2000W |
| Operating Temperature | -4° to 104°F (-20° to 40°C) |
| IP Rating | IP20 (Indoor) |
| Certifications | ETL, FCC Class A, CE, CCC, RoHS |
| Warranty | 3 years |
| Included | LED Controller, Power Bar, Wall Mount (4x4), Overframe Kit (4x4), Spare Parts Kit, Pixel Card Removal Tool |
Frequently Asked Questions
How does this compare to the FA012i2-110?
The FE012I2-110 uses a single LED controller (no redundancy) and does not include a control PC. It is the cost-effective option for non-critical deployments. The FA012i2-110 adds dual-controller redundancy and a complete control workstation for mission-critical applications.
What is the optimal viewing distance?
3 to 7 feet for the 1.26mm pixel pitch at 110 inches diagonal.
Does this bundle include installation?
No. Contact Creation Networks for installation services.
Are pixel cards hot-swappable?
Yes. All pixel cards are front-accessible and can be replaced during live display operation.
