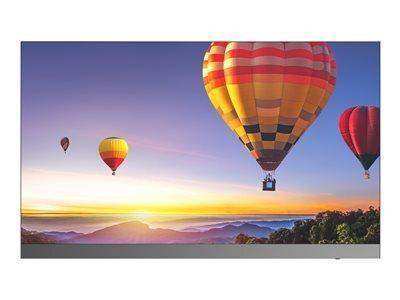

Sharp LED-E012i-108 – 108" FHD 1.25mm E-Series LED Video Wall Kit

Product Overview

The Sharp LED-E012i-108 is a 108-inch Full HD direct-view LED video wall kit from the E-Series — Sharp's cost-accessible commercial LED platform. Built with a 1.25mm pixel pitch module, it delivers 1920x1080 resolution across a seamless 16:9 canvas at 600 cd/m² typical brightness, with the same front-serviceable design and hot-swappable pixel cards found in the premium FE and FA-Series. The E-Series is designed for buyers who need proven Sharp/NEC LED quality and service support at a lower price point than the fine-pitch FE-Series configurations. Standard installation is included with this kit.

Product Description

The LED-E012i-108 uses a 1.25mm pitch 3-1 SMD black pixel module producing 1920x1080 FHD at 108 inches diagonal. Brightness is rated at 600 cd/m² typical and 660 cd/m² peak, with a 5000:1 contrast ratio and 85°/80° viewing angles. Refresh rate reaches 3840 Hz and the 16-bit color processing engine supports 281 trillion displayable colors. The bundle includes LED modules, LED controller, power bar, wall mount, overframe kit, spare parts kit, and standard installation labor. Front-serviceable modules and hot-swappable pixel cards support ongoing maintenance without rear access or display downtime. Active screen area measures 94.4 x 53.2 inches (2400 x 1350 mm).

Key Features

• E-Series Cost-Accessible Platform — Delivers core Sharp/NEC LED quality with full brand service support at a lower price point than FE-Series configurations.
• 108-Inch FHD Canvas — 1920x1080 seamless direct-view LED at 108 inches, 16:9.
• 1.25mm Pixel Pitch — Fine-pitch module suitable for viewing distances starting at approximately 3 feet.
• 600 cd/m² Typical / 660 cd/m² Peak Brightness — Consistent output for ambient-lit boardrooms and conference spaces.
• 5000:1 Contrast Ratio — Strong dark-level performance for accurate color and shadow rendering.
• 85°/80° Viewing Angles — Wide-angle visibility for standard conference room seating.
• Up to 3840 Hz Refresh Rate — Flicker-free rendering for video and data content.
• Standard Installation Included — Installation labor is included with this kit.
• Front-Serviceable, Hot-Swap Pixel Cards — On-site maintenance from the front face during live operation.
• 3.2" ADA-Compliant Depth — Thin, lightweight design for flexible commercial wall integration.
• 100,000-Hour LED Lifetime — Long-life industrial LED components.

Typical Applications

• Boardroom
• Conference room
• Training room
• Multi-purpose room
• Lobby display
• Digital signage

Technical Specifications

Frequently Asked Questions

How does the E-Series differ from FE-Series?
The E-Series is Sharp's cost-accessible LED tier, using a simplified module design without the cableless internal connector system found in FE-Series cabinets. Both carry full Sharp/NEC commercial service support and 3-year warranty. For larger budgets requiring tighter pixel pitch or higher brightness, consider the FE or FA Series.

Is this kit appropriate for a conference room?
Yes. The 108-inch size with 1.25mm pitch is well-suited for mid-to-large conference rooms and boardrooms with seating at 3 feet or more from the display surface.

Is installation included?
Yes. Standard installation labor is included with the LED-E012i-108.
