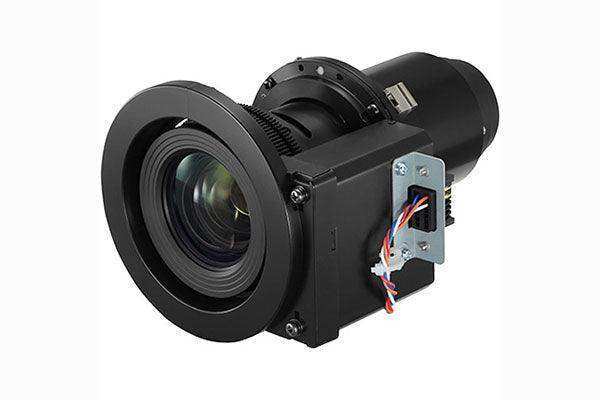

Sharp NP-9LS16ZM1 – 1.73-2.88:1 Zoom Lens for Cinema Projectors

Product Overview

The Sharp NEC NP-9LS16ZM1 is a 1.62 to 2.7x zoom projector lens with a 1.73 to 2.88:1 throw ratio, built for NEC NC Series digital cinema projectors and the NP-PH1202HL1 large-venue installation projector. As the long-throw option in the 9LS interchangeable lens family, it is the correct choice when the projection booth sits far back from the screen — typical of large auditoriums and full-size cinema houses. For digital cinema lens replacement or new large-venue projection installs, the NP-9LS16ZM1 delivers a wide zoom range with lens shift support.

Product Description

The NP-9LS16ZM1 zoom lens is designed for the NEC NC1000C, NC1000C-IMS, NC1000C-R, NC1100L-A, NC1100L-A-R, NC1201L-A, NC1201L-A-R, NC1201L-IMS, NC1202L, NC1402L, NC1700L-IMS, NC900C-A, NP-PH1202HL1 and NP-PH1202HL1-R projectors. In cinema and large-venue AV system integration, deep booths demand long-throw optics: with a 1.73 to 2.88:1 throw ratio, this lens fills the screen from projection positions well behind the seating area, which keeps the projector in a climate-controlled, serviceable booth rather than suspended over the audience.

Its 25.2 to 42.0mm focal length and expansive 1.62 to 2.7x zoom range — the widest in the 9LS family — give commissioning technicians substantial latitude to size the image precisely, even across rooms with very different depths. The lens works with the host projector's lens shift system, so geometric alignment to the screen happens optically instead of by re-rigging the pedestal. The shared 9LS mount lets multi-screen exhibitors and rental/staging operators redeploy this lens across compatible NC Series machines as screen assignments change. For shorter rooms, Creation Networks also stocks the Sharp NP-9LS12ZM1 1.28-1.83:1 lens and the Sharp NP-9LS13ZM1 1.42-2.24:1 lens.

Key Features

• 1.73 to 2.88:1 Throw Ratio — Fills the screen from deep projection booths in large auditoriums and cinema houses.
• 1.62 to 2.7x Zoom Range — The widest zoom in the 9LS family simplifies image sizing across rooms of different depths.
• 25.2 to 42.0mm Focal Length — Long-throw cinema optics maintain sharpness and uniformity at distance.
• Lens Shift Compatible — Works with the projector's lens shift for precise screen alignment without moving the mount.
• Broad NC Series Compatibility — Fits NC900C-A, NC1000C, NC1100L-A, NC1201L, NC1202L, NC1402L, NC1700L-IMS and NP-PH1202HL1 projectors.
• Interchangeable 9LS Mount — Swappable across compatible projectors for multi-screen cinema and staging operations.

Typical Applications

• Large auditorium and cinema projection booths
• Broadcast studio and screening room installations
• House of worship main-hall projection systems
• Multi-purpose room large-venue projection

Technical Specifications

Frequently Asked Questions

Which projectors accept the NP-9LS16ZM1 lens?

It is designed for NEC NC Series digital cinema projectors including the NC900C-A, NC1000C, NC1100L-A, NC1201L, NC1202L, NC1402L and NC1700L-IMS, plus the NP-PH1202HL1 installation projector.

How do I know if I need the long-throw lens?

Divide the projector-to-screen distance by the image width. If the result falls between 1.73 and 2.88, the NP-9LS16ZM1 is correct. For shorter booths, use the NP-9LS13ZM1 or NP-9LS12ZM1 from the same family.

Does the lens support lens shift?

Yes. When mounted on a compatible NC Series or PH Series projector, the lens works with the projector's lens shift system for precise optical alignment to the screen.

Can the lens be redeployed between screens?

Yes. The shared 9LS mount lets multi-screen exhibitors and rental/staging operators move this lens between compatible NC Series projectors as installations change.

Who should install and align the lens?

Digital cinema lens installation is typically handled by a trained technician during commissioning to confirm focus uniformity, brightness and screen geometry.

What support does Creation Networks provide?

Creation Networks assists with throw-distance lens selection, projector compatibility checks and warranty registration on Sharp NEC cinema optics.
