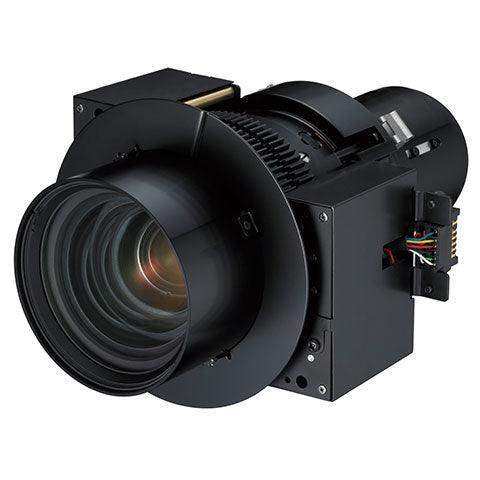

Sharp NP-9LS12ZM1 – 1.28-1.83:1 Zoom Lens for Cinema Projectors

Product Overview

The Sharp NEC NP-9LS12ZM1 is a 1.2 to 1.72x zoom projector lens with a 1.28 to 1.83:1 throw ratio, built for NEC NC Series digital cinema projectors and the NP-PH1202HL large-venue installation projector. It is the shorter-throw option in the 9LS interchangeable lens family, letting integrators position a cinema projector closer to the screen in compact booths and screening rooms. For digital cinema lens replacement or new auditorium projection installs, the NP-9LS12ZM1 pairs precision optics with motorized lens shift support.

Product Description

The NP-9LS12ZM1 zoom lens is designed for the NEC NC1000C, NC1000C-IMS, NC1000C-R, NC1100L-A, NC1100L-A-R, NC1201L-A, NC1201L-A-R, NC1201L-IMS, NC1202L, NC1402L, NC1700L-IMS, NC900C-A, NP-PH1202HL1 and NP-PH1202HL1-R projectors. In digital cinema and large-venue AV system integration, the lens — not the projector — determines where the chassis can physically sit relative to the screen. With its 1.28 to 1.83:1 throw ratio, this lens suits projection booths and rooms where throw distance is short relative to screen width, a common constraint in boutique cinemas, screening rooms and retrofitted auditoriums.

The 18.6 to 26.7mm focal length range and 1.2 to 1.72x zoom give technicians fine control over image sizing during commissioning, while compatibility with the host projector's lens shift system allows precise geometric alignment to the screen without re-rigging the pedestal or ceiling mount. Because the 9LS family shares a common mount across the NC Series, exhibitors and rental/staging operators can move lenses between compatible projectors as room assignments change. Creation Networks stocks the adjacent throw ranges as well — see the Sharp NP-9LS13ZM1 1.42-2.24:1 lens and the Sharp NP-9LS16ZM1 1.73-2.88:1 lens for deeper rooms.

Key Features

• 1.28 to 1.83:1 Throw Ratio — Enables shorter projection distances for compact booths and screening rooms.
• 1.2 to 1.72x Zoom Range — Provides image-size flexibility during installation and commissioning.
• 18.6 to 26.7mm Focal Length — Precision cinema optics preserve sharpness across the zoom range.
• Lens Shift Compatible — Works with the host projector's lens shift for accurate screen alignment without moving the mount.
• Broad NC Series Compatibility — Fits NC900C-A, NC1000C, NC1100L-A, NC1201L, NC1202L, NC1402L, NC1700L-IMS and NP-PH1202HL1 projectors.
• Interchangeable 9LS Mount — Swappable across compatible projectors for rental, staging and multi-screen cinema operations.

Typical Applications

• Auditorium and cinema projection booths
• Broadcast studio and screening room installations
• Multi-purpose room large-venue projection
• House of worship main-hall projection systems

Technical Specifications

Frequently Asked Questions

Which projectors accept the NP-9LS12ZM1 lens?

It is designed for NEC NC Series digital cinema projectors including the NC900C-A, NC1000C, NC1100L-A, NC1201L, NC1202L, NC1402L and NC1700L-IMS, plus the NP-PH1202HL1 installation projector.

How do I confirm this throw ratio fits my booth?

Divide the projector-to-screen distance by the image width. If the result falls between 1.28 and 1.83, the NP-9LS12ZM1 is the correct lens. For longer throw distances, consider the NP-9LS13ZM1 or NP-9LS16ZM1 in the same family.

Does the lens support lens shift?

Yes. When installed on a compatible NC Series or PH Series projector, the lens works with the projector's lens shift system for precise image positioning during alignment.

Can the lens be swapped between projectors?

Yes. The 9LS lens family uses a common mount across compatible NC Series projectors, so cinema operators and rental/staging companies can reassign lenses as installations change.

Should a technician perform the installation?

For digital cinema projectors, lens installation and alignment are typically handled by a trained technician during commissioning to ensure correct focus uniformity, color convergence and screen alignment.

What support does Creation Networks provide?

Creation Networks can assist with lens selection by throw distance, compatibility verification against your projector model and warranty registration on Sharp NEC cinema optics.
