Sharp NP-9LS13ZM1 – 1.42-2.24:1 Zoom Lens for Cinema Projectors

Product Overview

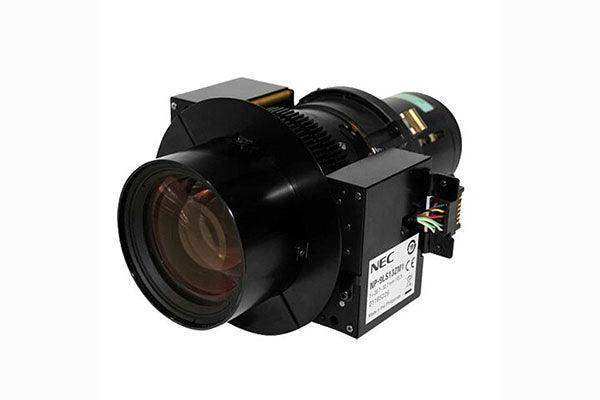

The Sharp NEC NP-9LS13ZM1 is a 1.33 to 2.1x zoom projector lens with a 1.42 to 2.24:1 throw ratio, engineered for NEC NC Series digital cinema projectors and the NP-PH1202HL1 large-venue installation projector. It is the mid-range option in the 9LS interchangeable lens family, covering the throw distances found in most standard cinema booths and auditorium projection installations. For digital cinema lens replacement or new screening room builds, the NP-9LS13ZM1 combines a wide zoom range with lens shift support for precise alignment.

Product Description

The NP-9LS13ZM1 zoom lens is designed for the NEC NC1000C, NC1000C-IMS, NC1000C-R, NC1100L-A, NC1100L-A-R, NC1201L-A, NC1201L-A-R, NC1201L-IMS, NC1202L, NC1402L, NC1700L-IMS, NC900C-A, NP-PH1202HL1 and NP-PH1202HL1-R projectors. In large-venue and cinema AV system integration, selecting the right lens throw ratio is the first design decision: it determines whether the projector can live in the existing booth, on a rear pedestal or in a ceiling enclosure. The 1.42 to 2.24:1 range of this lens matches the booth-to-screen geometry of most purpose-built theaters, making it a common first choice for NC Series deployments.

Its 20.7 to 32.7mm focal length and broad 1.33 to 2.1x zoom give commissioning technicians generous latitude to fill the screen exactly, even when as-built distances differ from drawings. The lens supports the host projector's lens shift system, so the image can be aligned to the screen without re-rigging the projector after installation. Because the 9LS family shares a common mount, exhibitors and rental/staging operators can move this lens between compatible NC Series machines as screens are reconfigured. If your room is shorter or deeper, Creation Networks also stocks the Sharp NP-9LS12ZM1 1.28-1.83:1 lens and the Sharp NP-9LS16ZM1 1.73-2.88:1 lens.

Key Features

• 1.42 to 2.24:1 Throw Ratio — Matches the booth geometry of most standard cinema and auditorium installations.
• 1.33 to 2.1x Zoom Range — Wide adjustment range simplifies commissioning when field distances differ from plans.
• 20.7 to 32.7mm Focal Length — Cinema-grade optics maintain image sharpness across the full zoom range.
• Lens Shift Compatible — Works with the projector's lens shift for accurate screen alignment without moving the mount.
• Broad NC Series Compatibility — Fits NC900C-A, NC1000C, NC1100L-A, NC1201L, NC1202L, NC1402L, NC1700L-IMS and NP-PH1202HL1 projectors.
• Interchangeable 9LS Mount — Swappable across compatible projectors for multi-screen cinema and staging operations.

Typical Applications

• Auditorium and cinema projection booths
• Broadcast studio and screening room installations
• House of worship main-hall projection systems
• Multi-purpose room large-venue projection

Technical Specifications

Frequently Asked Questions

Which projectors accept the NP-9LS13ZM1 lens?

It is designed for NEC NC Series digital cinema projectors including the NC900C-A, NC1000C, NC1100L-A, NC1201L, NC1202L, NC1402L and NC1700L-IMS, plus the NP-PH1202HL1 installation projector.

How do I verify this throw ratio works for my room?

Divide the projector-to-screen distance by the image width. If the result falls between 1.42 and 2.24, the NP-9LS13ZM1 is the right lens. Shorter rooms call for the NP-9LS12ZM1; deeper rooms call for the NP-9LS16ZM1.

Does the lens support lens shift?

Yes. When mounted on a compatible NC Series or PH Series projector, the lens works with the projector's lens shift system for precise geometric alignment to the screen.

Can I move this lens between projectors?

Yes. The 9LS family uses a common mount across compatible NC Series machines, so exhibitors and rental/staging operators can reassign lenses as installations change.

Who should install the lens?

Digital cinema lens installation and alignment are normally performed by a trained technician during commissioning to verify focus uniformity and screen geometry.

What support does Creation Networks provide?

Creation Networks assists with throw-distance lens selection, projector compatibility verification and warranty registration for Sharp NEC cinema optics.
